Installation

309298J

Install the Gun and Mounting
Bracket

Loosen the mounting bracket’s two set screws (103)
and slide the bracket (102) onto a 1/2 in. (13 mm)
mounting rod. See F

. 4..

Position the gun and tighten the two set screws.

For added positioning reliability, insert a 1/8 in. (3 mm)
locating pin into the slot (NN) in the bracket and through
a hole in the rod. See the detail in F

. 4..

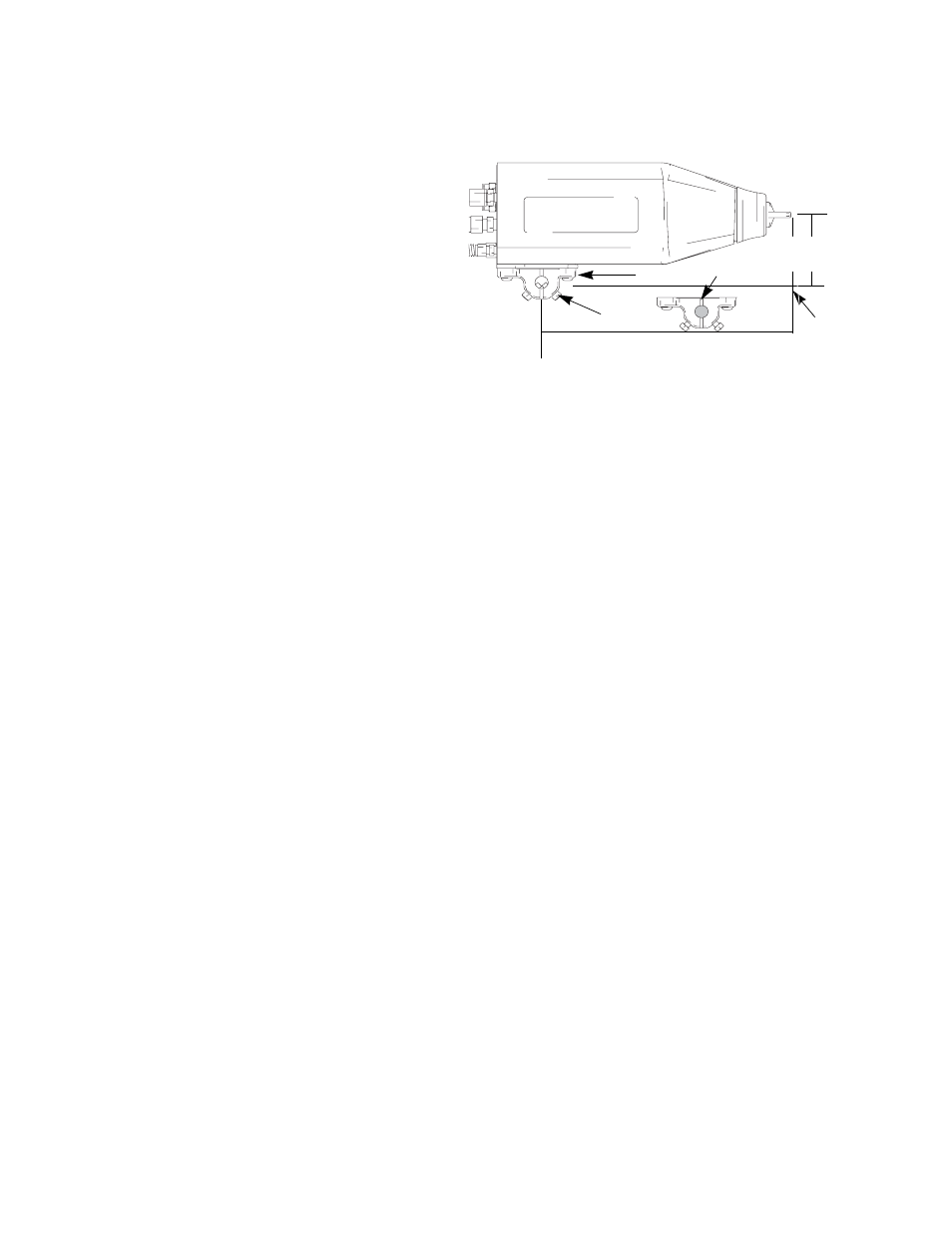

Fig. 4. Mounting Bracket

TI1738A

103

102

9.24 in
(234.7 mm)

2.88 in
(73.2 mm)

To
Nozzle
Tip
