Installation
309475F 9

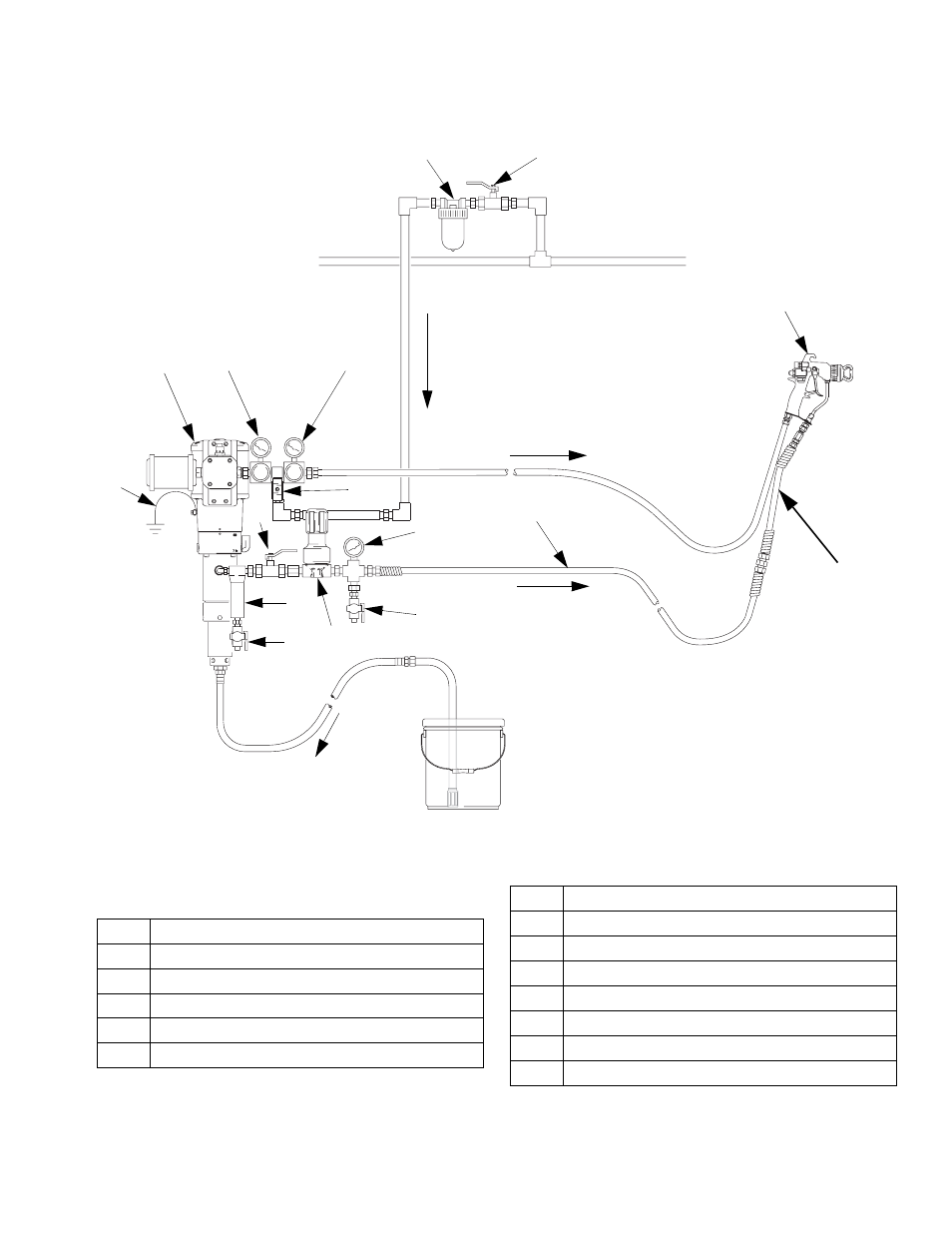

Fig. 4. High pressure, non-circulating system, mechanical fluid regulator
Key
A B
C
M
H
J
K
L
D
B
E
F
Fluid
Fluid in
Air in
Air in
to gun
to pump
Y
G
G
H
Z
TI1763C
A Air line filter
B Bleed-type air shut-off valve
C Pump air regulator
D Gun air regulator
E Fluid hose
F Pump
G Fluid drain valve
H Fluid shut-off valve
J Mechanical fluid pressure regulator
K Fluid pressure gauge
L Air-assisted spray gun
M Fluid filter
Y Pump ground wire
Z Whip hose
