Installation
10 309475F

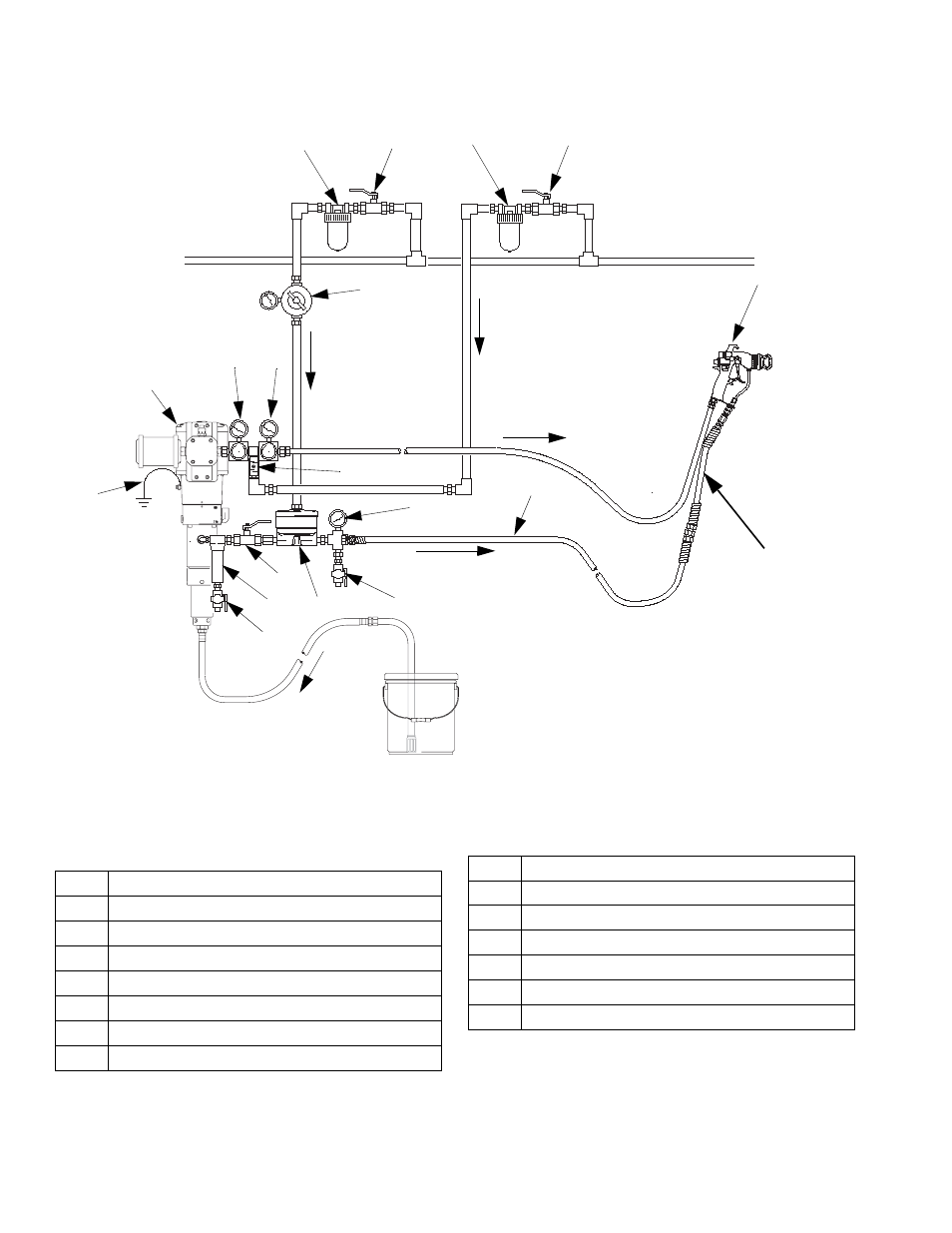

Fig. 5. High pressure, non-circulating system, pneumatic fluid regulator
Key
A
C D
N
B
L
F
G
H
J
K
M
G
Air to Fluid
Regulator
Air to
Gun
Air to
Pump
F
lu
id
Fluid
Y
B
A B
Z
E
TI1764C
A Air line filter
B Bleed-type air shut-off valve
C Pump air regulator
D Gun air regulator
E Fluid hose
F Pump
G Fluid drain valve
H Fluid shut-off valve
J Pneumatic fluid regulator
K Fluid pressure gauge
L Gun
M Fluid filter
N Air regulator to operate/adjust fluid regulator
Y Pump ground wire
Z Whip hose
