Flow Rate Data
26 309475F
Flow Rate Data
Maximum fluid flow with 10 weight oil, regulator wide open and no downstream restrictions.

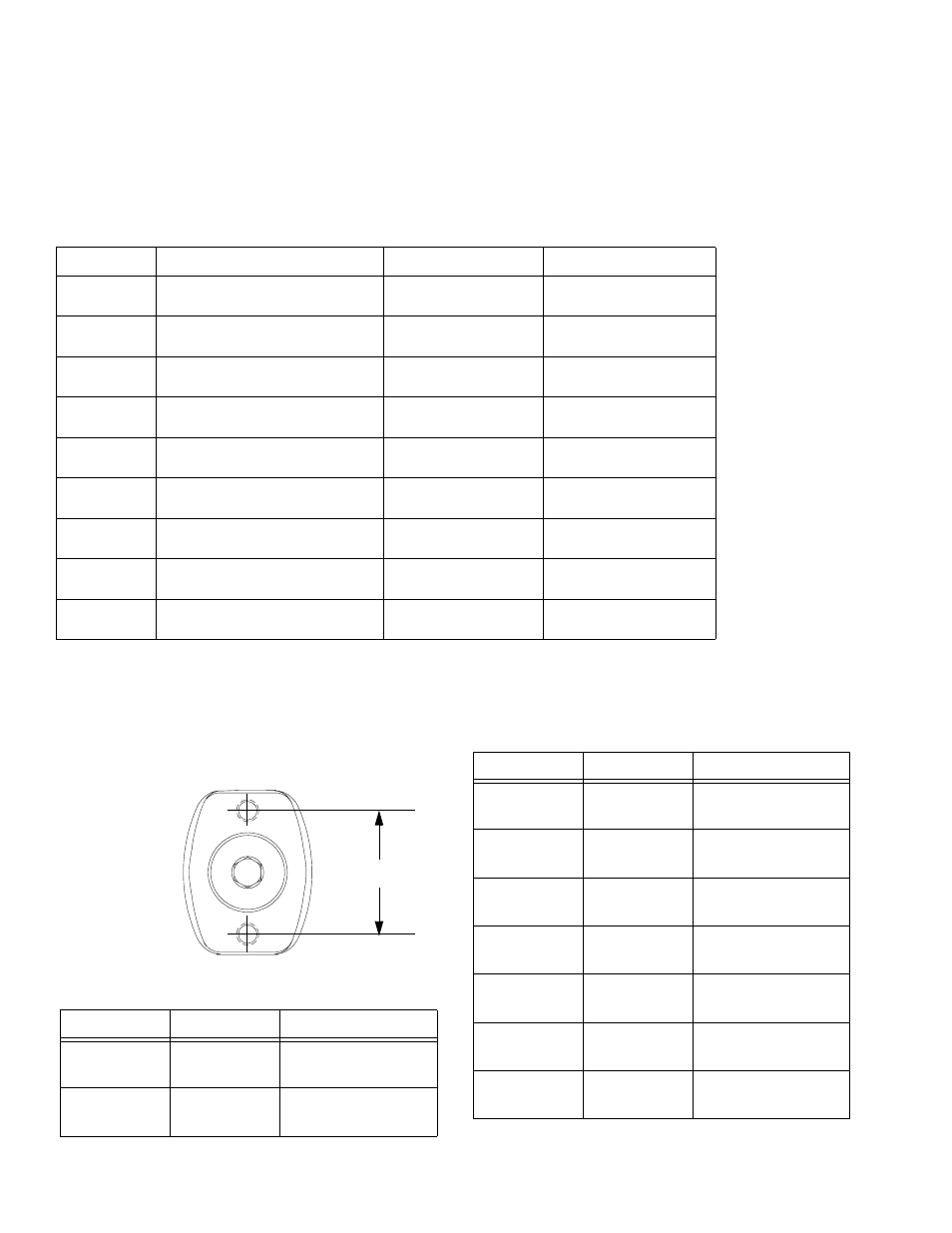

Mounting Dimensions
Part No. Inlet Fluid Test Pressure Inlet/Outlet Size Fluid Flow
233760
234266 5000 psi (36 MPa, 360 bar) 3/4 BSPP(F)
3/4 npt(F) 11.3 gpm (42.9 lpm)
233767
234264 3000 psi (21 MPa, 210 bar) 3/8 BSPP(F)
3/8npt(F) 8.2 gpm (31.2 lpm)
233768
234265 3660 psi (25 MPa, 256 bar) 3/8 BSPP(F)
3/8npt(F) 9.2 gpm (35.0 lpm)
233769
234270 4000 psi (28 MPa, 280 bar) 3/4 BSPP(F)
3/4npt(F) 11.7 gpm (44.5 lpm)
233770
234271 3800 psi (26 MPa, 266 bar) 3/4 BSPP(F)
3/4npt(F) 12.3 gpm (46.7 lpm)
233771
234268 2500 psi (17 MPa, 170 bar) 3/8 BSPP(F)
3/8npt(F) 10.2 gpm (38.8 lpm)
233772
234269 3400 psi (23.5 MPa, 235 bar) 3/8 BSPP(F)
3/8npt(F) 13.1 gpm (49.8 lpm)
233813
234259 3800 psi (26 MPa, 266 bar) 3/8 BSPP(F)
3/8npt(F) 10.6 gpm (40.3 lpm)
233814
234260 2500 psi (17 MPa, 170 bar) 3/8 BSPP(F)
3/8npt(F) 8.1 gpm (30.8 lpm)
Part No. Thread Dimension A
233760
234266 M6 36 mm (1.42 in.)
233767
234264 M5 28 mm (1.10 in.)
A
233768
234265 M5 28 mm (1.10 in.)
233769
234270 M6 36 mm (1.42 in.)
233770
234271 M6 36 mm (1.42 in.)
233771
234268 M5 28 mm (1.10 in.)
233772
234269 M5 28 mm (1.10 in.)
233813
234259 M5 28 mm (1.10 in.)
233814
234260 M5 28 mm (1.10 in.)
Part No. Thread Dimension A
