g5771 50" slip roll 16 gauge
-13-
SEctION 3: OPERAtIONS
Damage to your eyes, hands and feet could
result from using this machine without prop-
er protective gear. Always wear safety glass-
es, leather gloves, and steel toe footwear
when operating this machine.
NOTICE
If you have never used this type of machine
or equipment before, WE StRONGLy REc-
OMMEND that you read books, trade maga-
zines, or get formal training before begin-
ning any projects. Regardless of the con-
tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.

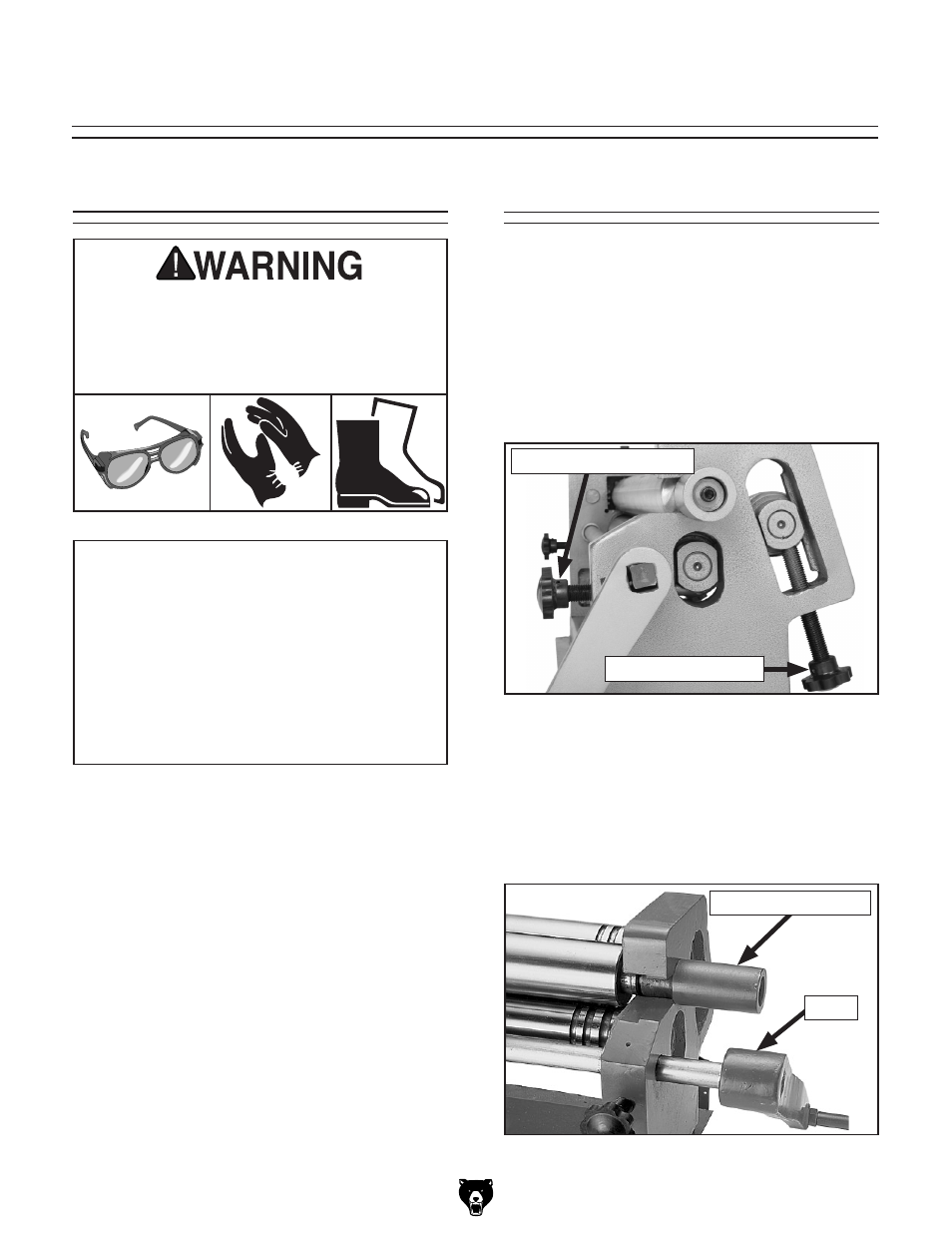

Operation Safety basic controls
use the descriptions and figures below to become
familiar with the basic controls of your slip roll.
thickness Adjust Knob: raises and lowers the
lower roller to adjust for thicknesses of different
workpieces.
Radius Adjust Knob: raises and lowers the rear
roller to create smaller and larger radius bends.
Removable bushing: slides out to allow removal
of the upper roller to facilitate the unloading of
cylindrical workpieces.
crank: turns the rollers, feeding the workpiece
through the machine.
figure 10. adjustment knobs.
figure 11. Controls.
thickness adjust Knob
radius adjust Knob
removable Bushing
Crank
