2-38

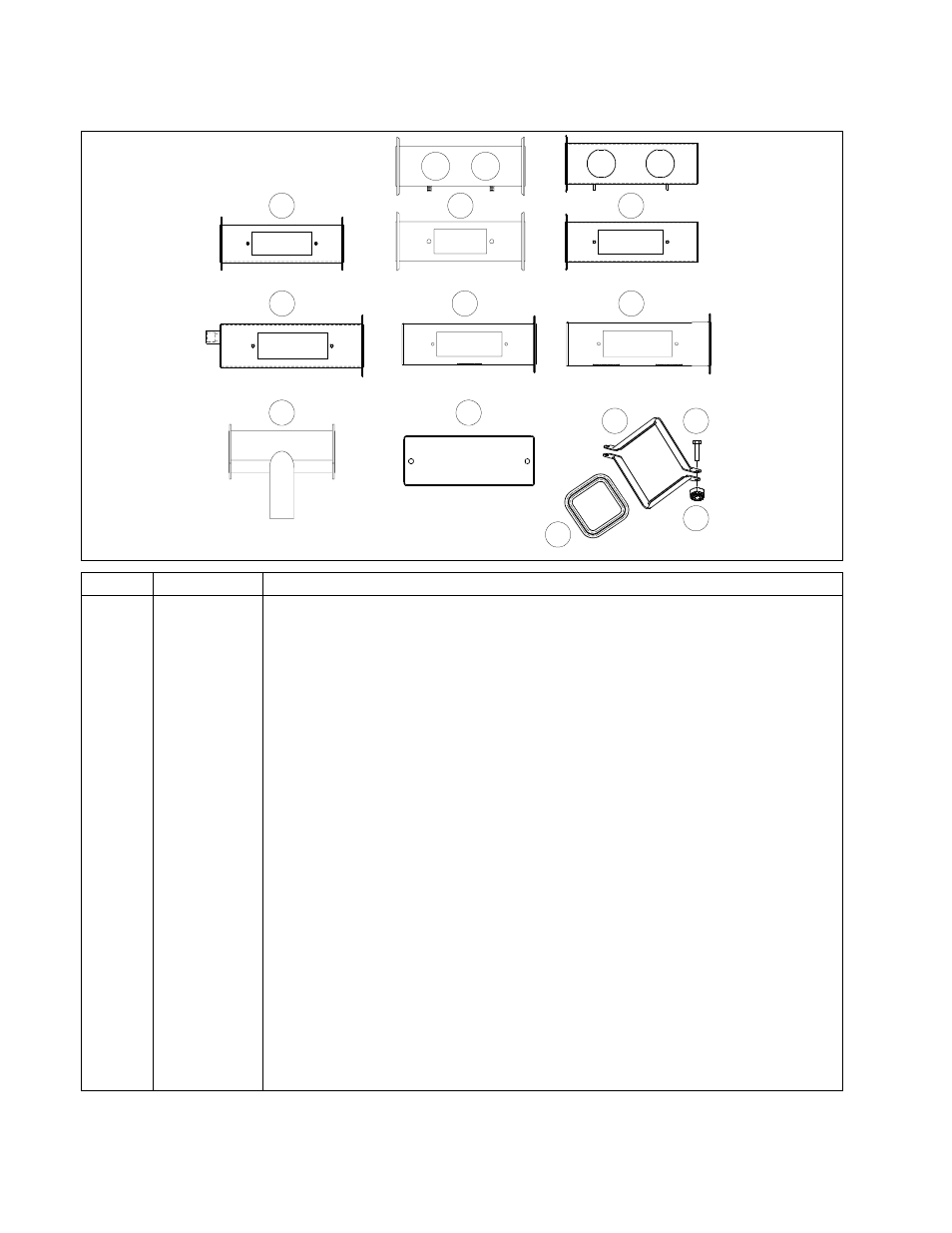

2.11 Drain System Components
1 2 3
4 5 6
7
9
11
10
12
8
ITEM PART # COMPONENT
1 823-0718 Drain Tube, Left End, 2.5 x 8.0-inch
2 823-0725 Drain Tube, Left End, Dual-vat, 2.5 x 8.0-inch
3 823-1551 Drain Tube, Right End, Dual-vat
4 823-2636 Drain Tube, Left End, Dual-vat
* 823-2637 Drain Tube, Left End, Full-vat
5 823-1549 Drain Tube, Right End, Full-vat
6 823-1543 Drain Tube, Right End, Dual-vat
* 823-1508 Drain Tube, Right End, Full Vat 15.5-inch
* 823-0724 Drain Tube, Dual-vat FM 15.5-inch
* 823-0717 Drain Tube, FM Standard Cabinet 15.5-inch
* 823-0720 Elbow, Drain-EF Right FM
* 823-0721 Elbow, Drain-EF Left FM
7 823-2336 Drain, FootPrint
8 826-1348 Cover, Drain Cleanout (Pkg. of 5)
* 816-0021 Gasket, Drain Cover
* 826-1382 Wingnut, Drain Cover (Pkg. of 10)
* 816-0092 Grommet, 1” Drain
* 826-1345 Washer, Drain Nut (Pkg. of 25)
* 809-0347 Drain Nut
9 810-0396 Clamp, 2.5-inch Drain, Filter Magic (Two Required Per Union)
10 826-1375 Screw, 10-32 x 3/4 Hex Trim HD SS (Pkg. of 5)
11 826-1376 Nut, 10-32 Hex (Pkg. of 10)
12 816-0032 Gasket, Square Drain
* Not illustrated.
