2-6

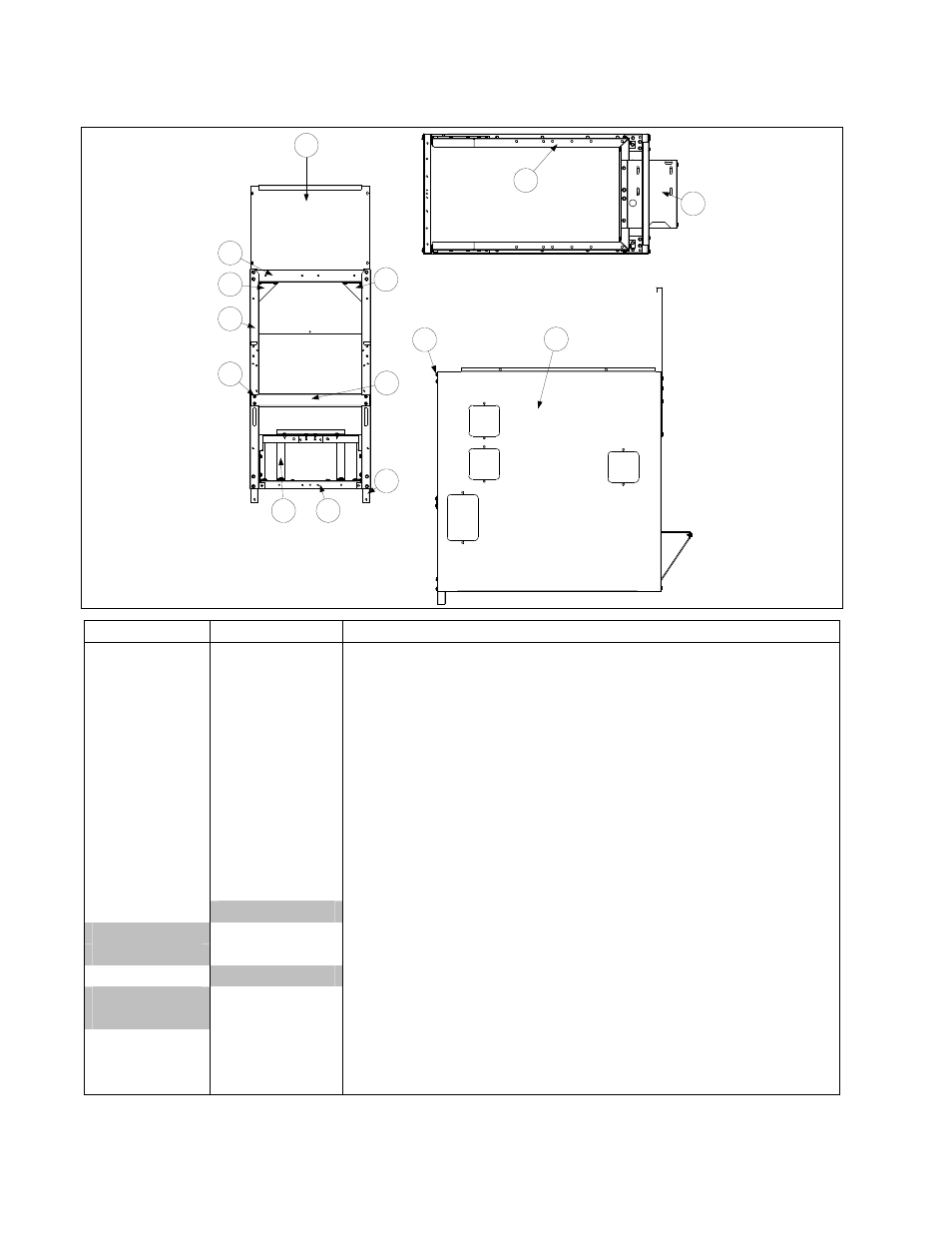

2.3.2 H114/117/122 Cabinet Assembly, Battered Option—Filter Ready
10
4
6
12
1 5
3
13
11
8
9
14
7
2
ITEM PART # COMPONENT
1 806-4897 Base, Single FP
2 806-5317 Filter Rail Assembly, Single FP
3 809-0361 Screw, 8 x ½ Hex
4 809-0412 Screw, #10-½ Hex
5 900-1786 Motor Mount, Cantilever Bracket
6 900-4391 Brace, Cabinet Front
7 900-4551 Motor Mount, Single FootPrint
8 900-4813 Brace, Cabinet Top Single
9 900-7448 Back, Top, FPH 50
10 901-1405 Gusset, Cabinet FP-TCF Left
11 902-1405 Gusset, Cabinet FP-TCF Right
12 910-8673 Leg, Front Filter w/Swivel Caster
13 Side, Cabinet, Left
911-9324 Side, Stainless Steel
901-9324 Side, Cold Rolled Steel
14 Side, Cabinet, Right
912-9324 Side, Stainless Steel
902-9324 Side, Cold Rolled Steel
* 910-0889 Cover, 4” x 4” S/S (for enameled steel, use 900-0889)
* 910-0890 Cover, 4” x 6” S/S (for enameled steel, use 900-0890)
* 809-0359 Screw, #8 x ¼” Hex Washer Head
* Not illustrated.
