2-7

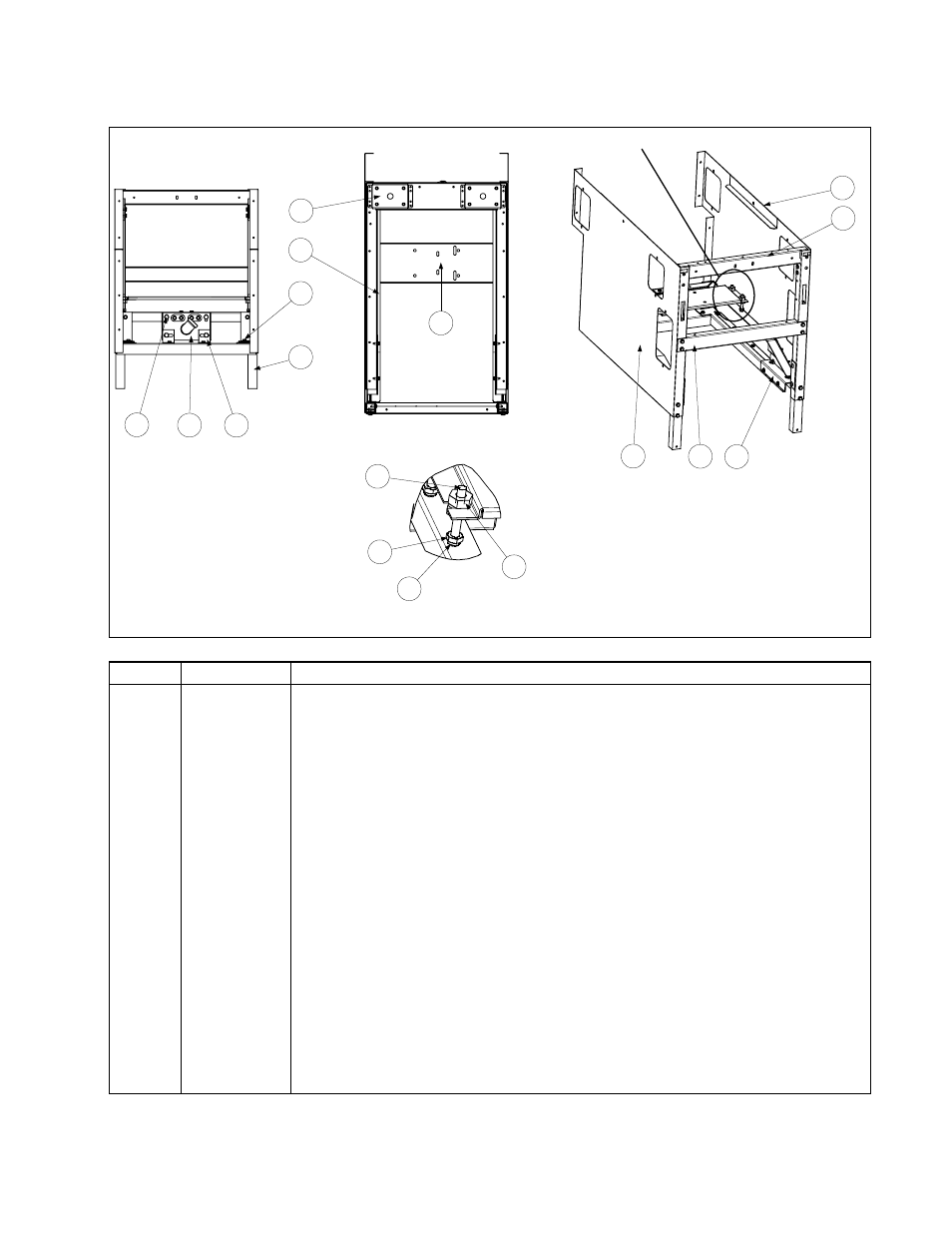

2.3.3 Filter Magic Under-Counter Cabinetry (after 8/2000)
1
2
14
13 4
3
5
15
7 12 16
9
17
10
6
8
11
See Detail
Detail
ITEM PART # COMPONENT
1 201-0483 Side, Cabinet U/C Enameled – Left
2 202-0483 Side, Cabinet U/C Enameled – Right
* 211-0483 Side, Cabinet U/C Stainless Steel – Left
* 212-0483 Side, Cabinet U/C Stainless Steel – Right
3 806-8059 Leg Pad Assembly
4 806-8062SP Filter Rail Assembly, Common Electric FM
5 806-8935SP Base Assembly, FM 3-Piece
6 826-1362 Nut, ¼ - 20 Hex (Pkg. of 10)
7 826-1389 Screw, Hex Head ¼ -20 x ¾ (Pkg. of 10)
8 809-0191 Washer, ¼ Lock
9 826-1374 Screw, #10- ½ Hex Head (Pkg. of 25)
10 809-0429 Bolt, ¼ -20 x 2
11 810-0665 Nut, Leveling
12 823-2827 Mount (Weld Assembly), Common Electric Single FP
13 900-4391 Brace, Cabinet Front
14 900-4785 Brace, Cabinet – Top and Center
15 900-8582 Mount, Motor Single FP Common Electric
16 900-8591 Bracket, Mount Common Electric Single FP
17 910-8659 Leg, Cabinet Front Common Electric Single FP
* Not illustrated.
