2-14

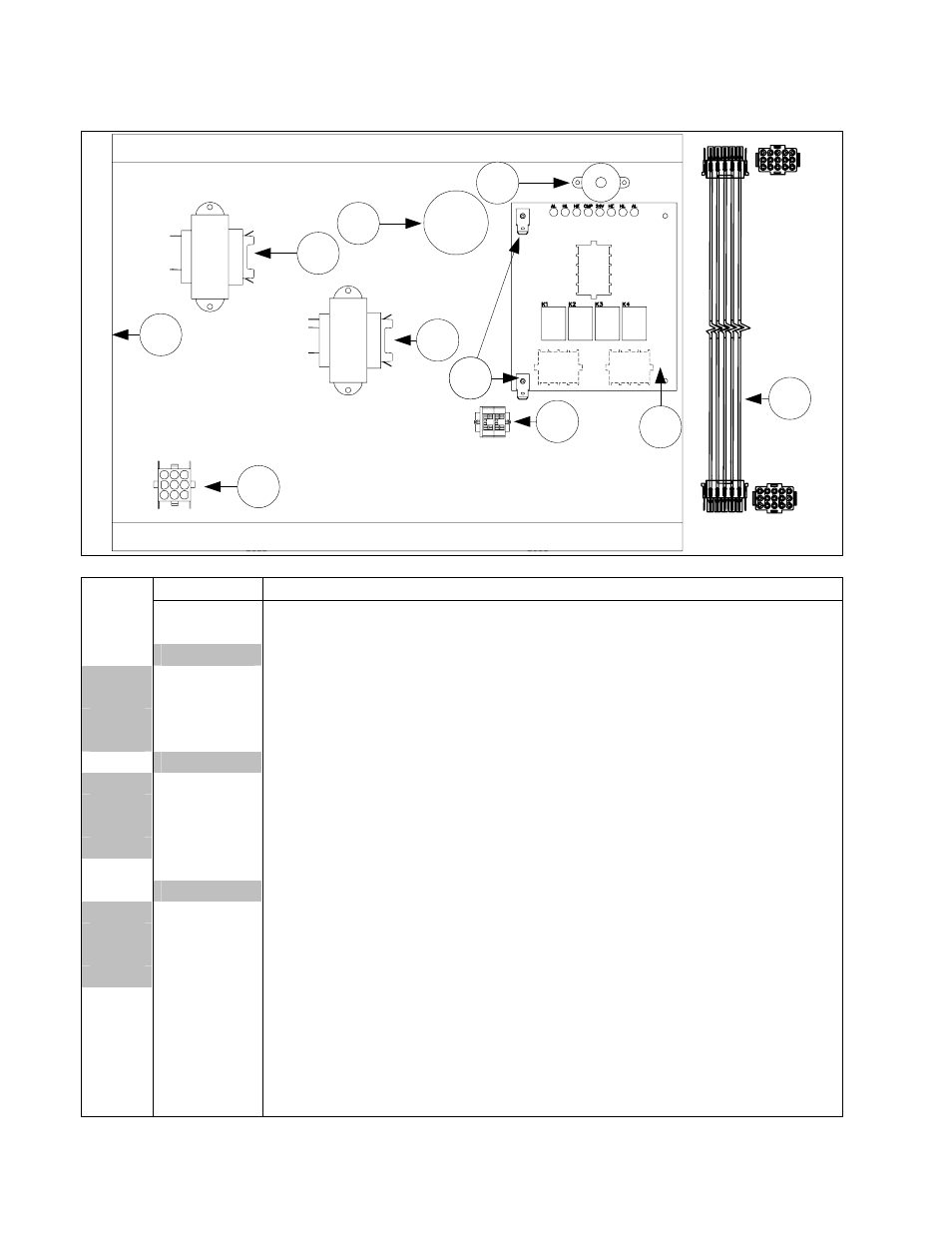

2.5 Component Box Assemblies and Associated Hardware
1
2
3
4
5
6
7
8
11 9
1
2 3
4
5 6
7
8 9
10
11
12
13
14
15
15
14
13
12
11
10
9 8
7
6 5
4
3 2
1
10
ITEM PART # COMPONENT
1 810-1164 Terminal Block Wire Assembly
2 806-8244 Component Box/Stud Assembly
3 Transformer, 12VAC
807-2191 208-240 V
807-0979 208-240V
807-2192 100-120V
807-0855 120V,
20VA
4 Transformer, 24VAC
807-0680 208-240 V (without fuse)
807-2180 208-240 V (with fuse)
807-2181 100-120V, 62VA (with wires)
807-0800 120V, 50VA (without wires)
* 807-1999 12/24 VAC Transformer, 208/220/230/240, 20/50 VA (Single FootPrint)
5 Interface Board
806-6336 Standard Models
806-3850 HE EF Models w/Rear Probe
806-6347 Solid State (Triac) Models
106-2982 Fast Computer
* 807-3932 Relay, Heat/Latch 12VDC SPDT 12A
6 807-1084 Bushing
7 806-6854SP Wiring Assembly, Transformer
8 806-7179SP Sound Device
9 826-1337 Terminal Tab (Pkg. of 5)
10 806-2071 Cable Assembly, Computer/Interface Board
* Not illustrated.
