C14

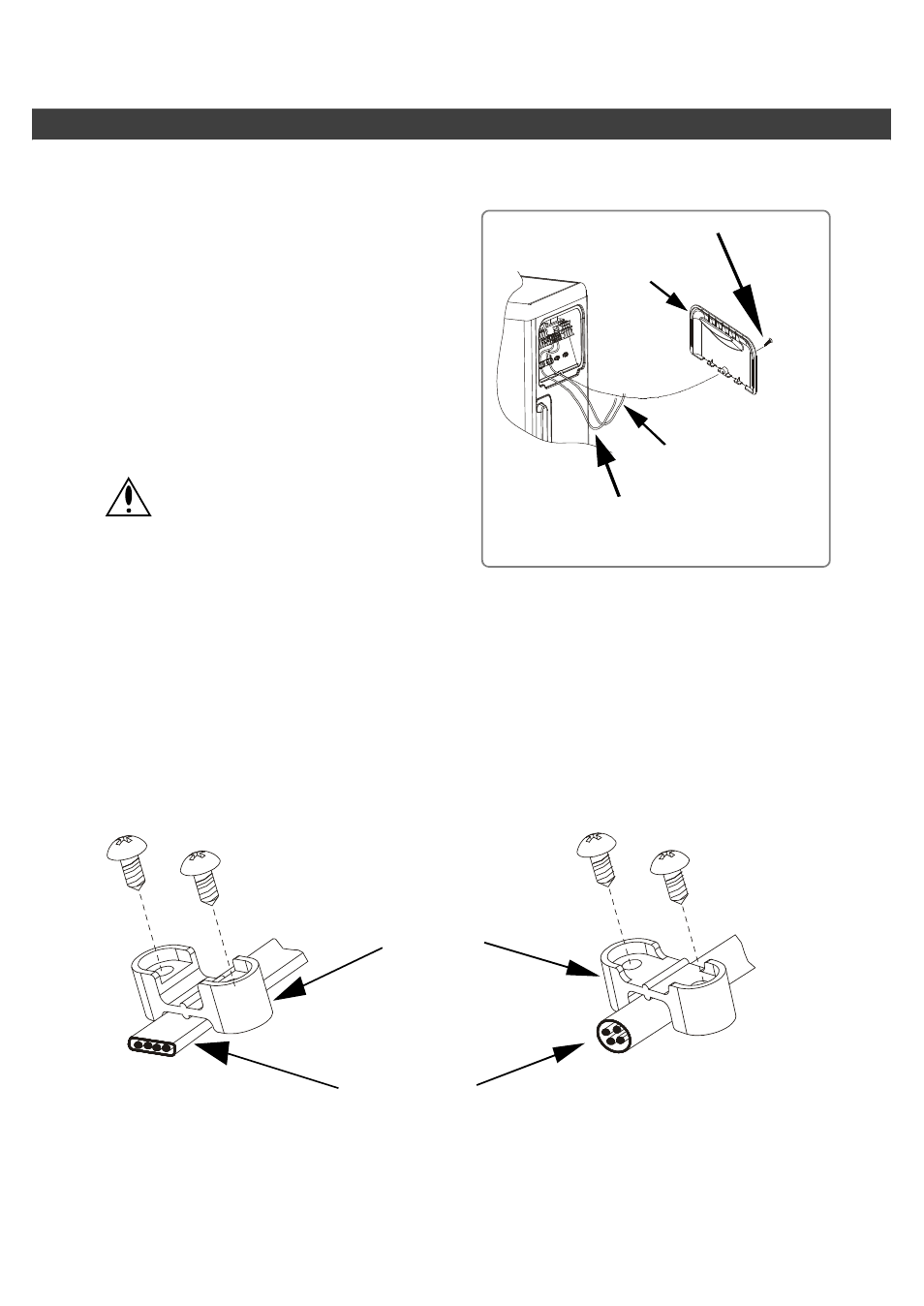

Connecting The Wires To The Outdoor Unit
• Remove the Service Cover from the
unit.
• Connect the wires to the terminals
according to the wiring diagram shown
in the wiring diagram section or at the
back of the Service Cover.
• Clamp the wire to the unit with the wire
retainer.
• Form a drip loop in the wire to prevent
water from entering the unit along the
cord.
• The same Wire Retainer can be used on two types of wires by changing the
orientation as shown below.
Wire Retainer
Connecting Wire
For Flat Type
For Round Type
Drip Loop
Service Cover
Screw
Wires
Caution Caution
This air conditioner must be This air conditioner must be
disconnected from the supply by a
disconnected from the supply by a
switch having a 3mm contact
switch having a 3mm contact
separation in all poles.
separation in all poles.
OUTDOOR UNIT INSTALLATION
For Heat-Pump model : Route the For Heat-Pump model : Route the
Outdoor Coil Thermister Wires
Outdoor Coil Thermister Wires
separately from high voltage
separately from high voltage
interconnecting cables.
interconnecting cables.
