Fedders R407C - Manual (Page 27)

C7

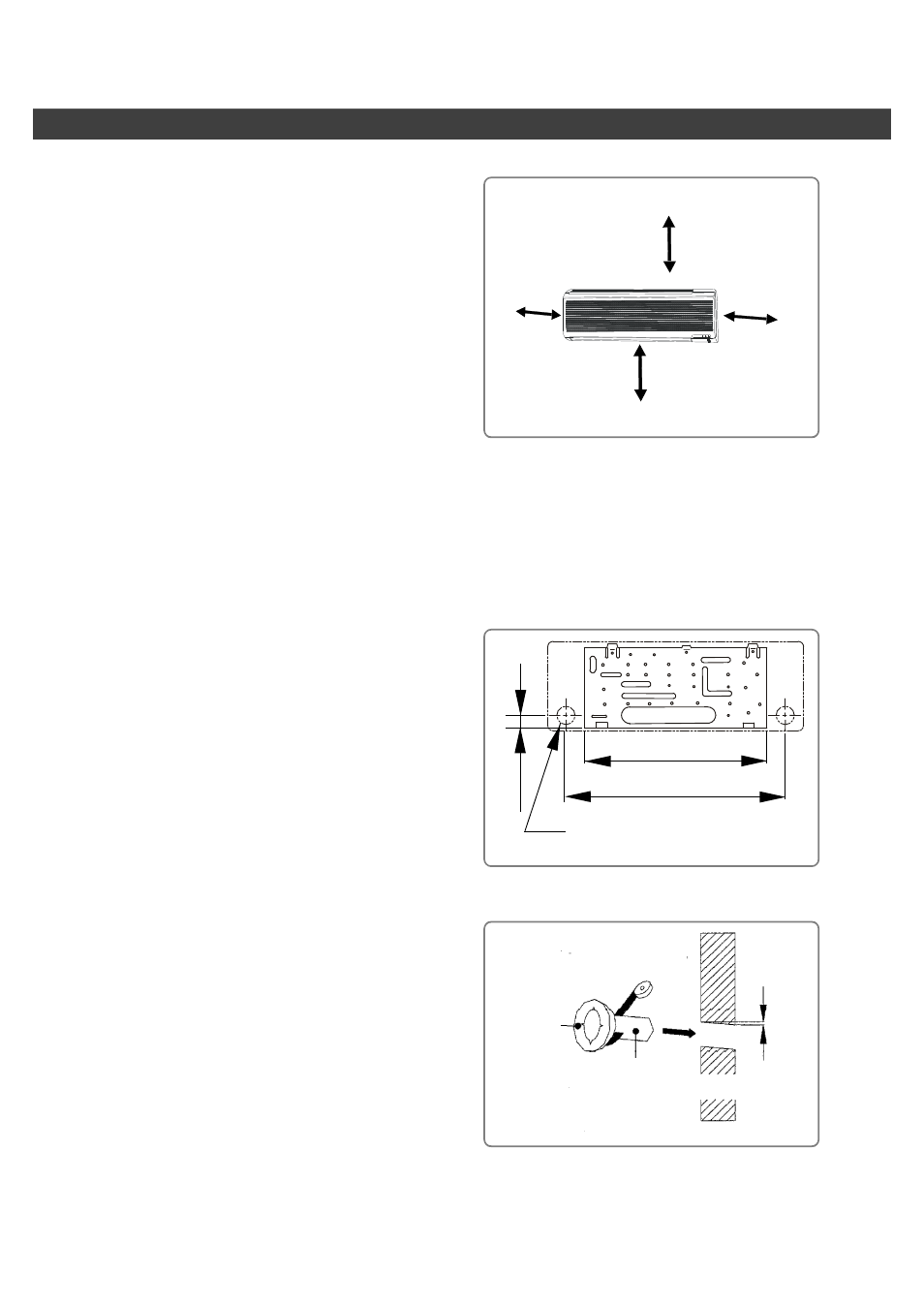

INDOOR UNIT INSTALLATION
• Do not install the unit near any heat
source, steam source or flammable gas
source.
• Locate the unit in a place where it will
provide cool air throughout the room.
• Make sure the minimum distances from
the walls and obstructions are main-
tained as shown on the right.
• Ensure that the unit’s airflow is not
obstructed.
• Place the unit so that the air filter can
be removed easily and maintenance
work can be carried out without obstruc-
tions.
Locating the indoor unit
At least 40mm
At least
50mm
Installing the wall bracket & drilling the piping hole.
• Mount the wall bracket in a level angle.
• Secure the bracket directly on the wall.
• If you are mounting the bracket on
plaster board, use the tapping screws
provided to secure the bracket on to the
wall.
• If you are mounting the bracket on a
concrete wall, use anchor bolts to
secure the bracket to the wall.
• If you are using the Right or Left back
outlet, see page 8, drill a 65mm diam-
eter piping hole at either on the right or
the left, and the hole should be slightly
slanted to the outdoor side.
• Cut the wall tube (not provided) to fit the
wall thickness.
• Connect the wall cap (not provided) to
the wall tube with polyethylene tape and
insert the tube in the wall.
Wall
Ceiling
2300-3000mm
Floor
At least
50mm
Wall
Polyethylene tape
6-10mm
Wall cap
Wall
Wall tube
Inside Outside
780mm
650mm
45mm
∅
65mm
