C10

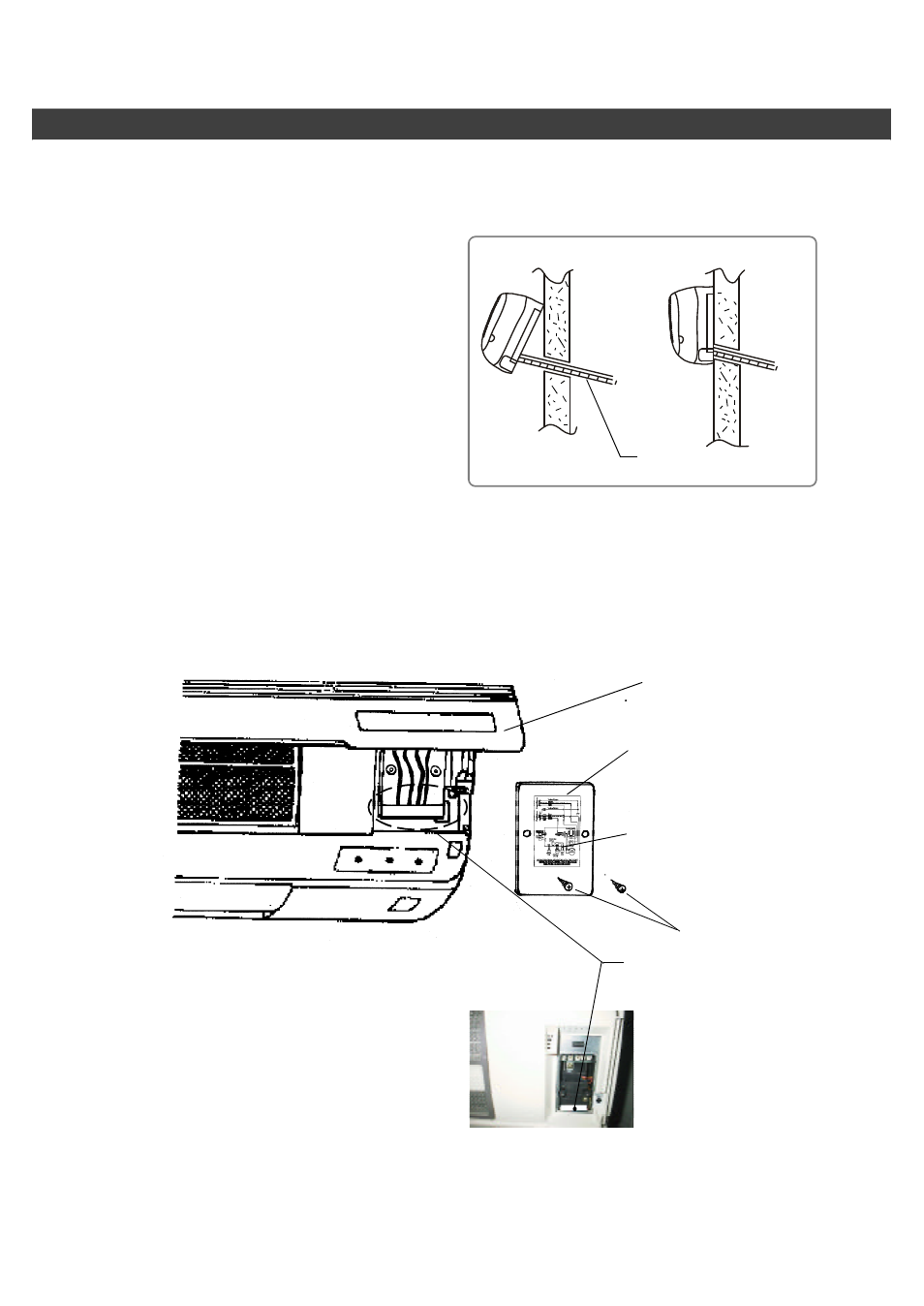

Attaching The Unit To The Wall Bracket
If you are using right, left or bottom piping outlet (see page 8) you must wire the
unit before you attach it to the wall bracket.
• Hook the unit to the hangers on top
of the bracket first and then press
the lower left and right side of the
unit against the wall bracket until it is
seated properly.
• Ensure that the unit is level.
• Ensure that the drain hose is in the
proper position.
Drain
Hose
You may connect the wires to the indoor unit by opening the Decorative Front
Grille.
• Remove 2 screws that secure the Control Box Cover.
• Connect the wire as shown on the wire diagram located on the control box
cover or refer to the Wiring Diagram Section in this manual.
Wiring The Indoor Unit
INDOOR UNIT INSTALLATION
Screws
Wire Diagram
Decorative
Front Grille
Route the wires through
this opening towards
the back of the unit.
Control Box
Cover
• Route the interconnecting wires to the
back through the opening in the front as
shown.
• Ensure all terminals are securely
tightened.
(Top View)
