Routing the drain hose and tubing

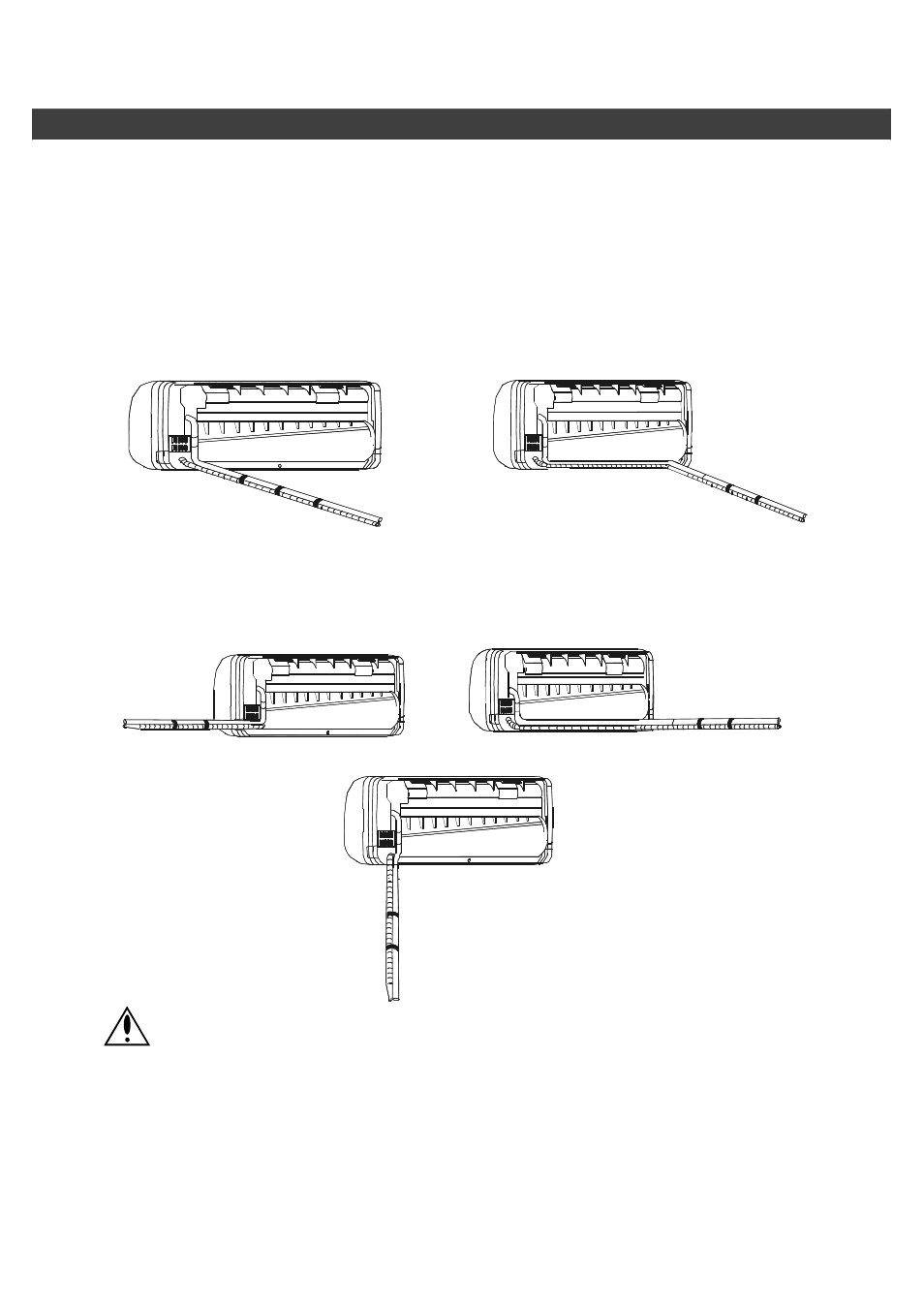

• The following illustrate the different piping outlet option.
Right Back Outlet
If you are using the following outlet option, you must wire the indoor unit before
attaching it to the wall bracket.
• Remove the Decorative Front by
removing 3 screws.
• Remove it by lifting it up and then
out.
Right Outlet
Left Outlet
Left Back Outlet
Bottom Outlet
Removing The Decorative Front
INDOOR UNIT INSTALLATION
Do not remove the flare nut from the tubing in the indoor unit until you
Do not remove the flare nut from the tubing in the indoor unit until you
are ready to connect it to the outdoor unit.
are ready to connect it to the outdoor unit.
Bend tubes with caution.
Bend tubes with caution.
CAUTION :
CAUTION :
