4-7
4.2 Automatic Tracking Aid ARP-17
Necessary parts
Table 4-2 Contents of ARP-17-2-E installation kit (Code No. 008-488-840)
Name Type Code No. Qty
ATA Board
ARP-17
18P9004A 008-490-940 1
Cable Assy. 80-0633 1
Spacer SQ-10 000-801-678 8
Toroidal Core TFC-25-25-2 000-129-693 1
Cable Tie CV-150 000-570-325 1
Operator's
Manual
ARP-17 000-808-575 1
Mounting
1. Unfasten eight screws to remove the cover.
2. Fasten eight spacers to the locations shown in Figure 4-4.
3. Fasten the ARP-17 Board to the spacers with eight panhead screws.
4. Attach the cable assy. between J1 on the ARP-17 Board and J1107 on the
SPU Board. Attach toroidal core to cable assy. and fasten cable assy. with
cable tie.

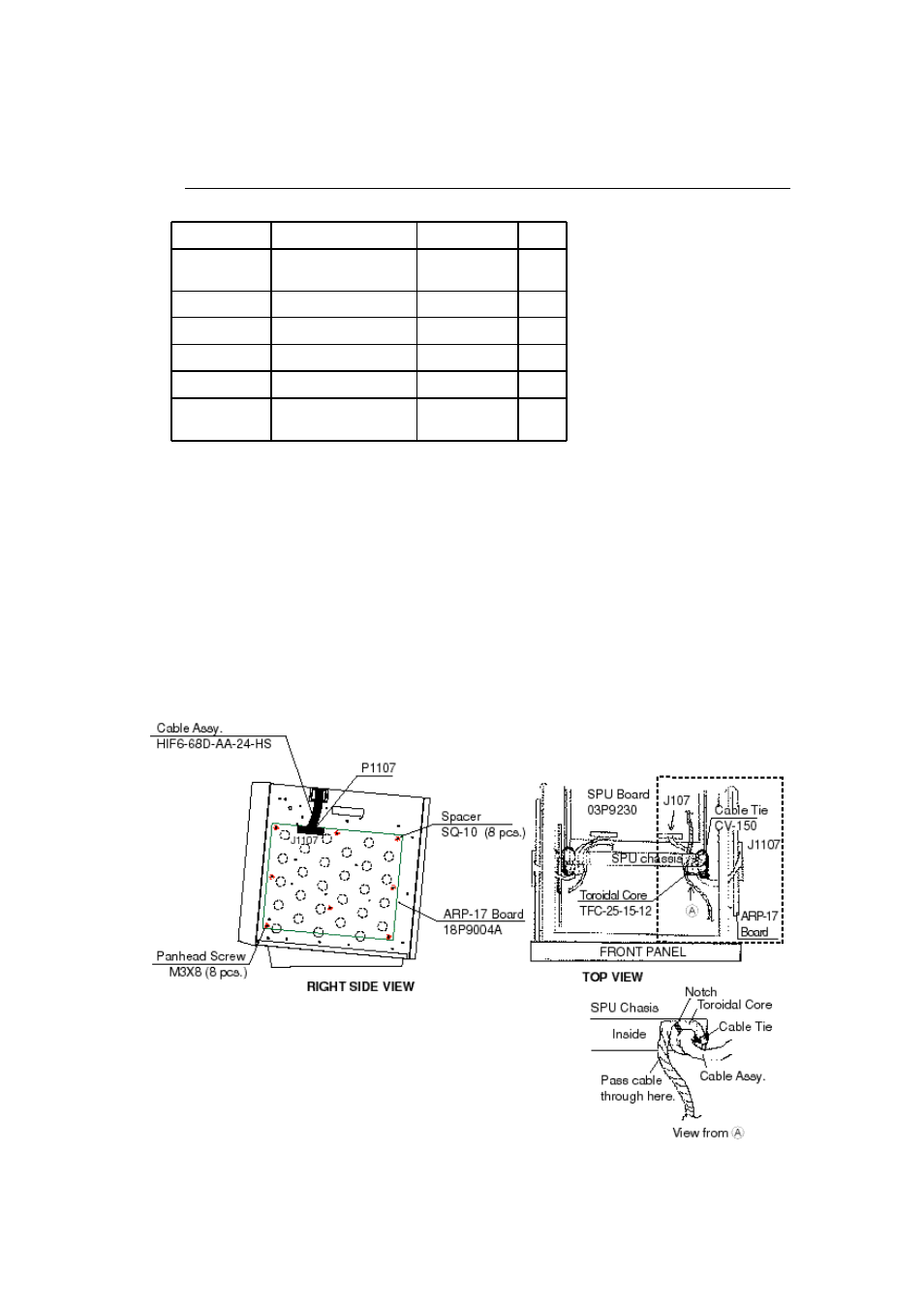

Figure 4-4 Display unit, right side view
