2-6
Wiring
1. Remove the display unit cover.

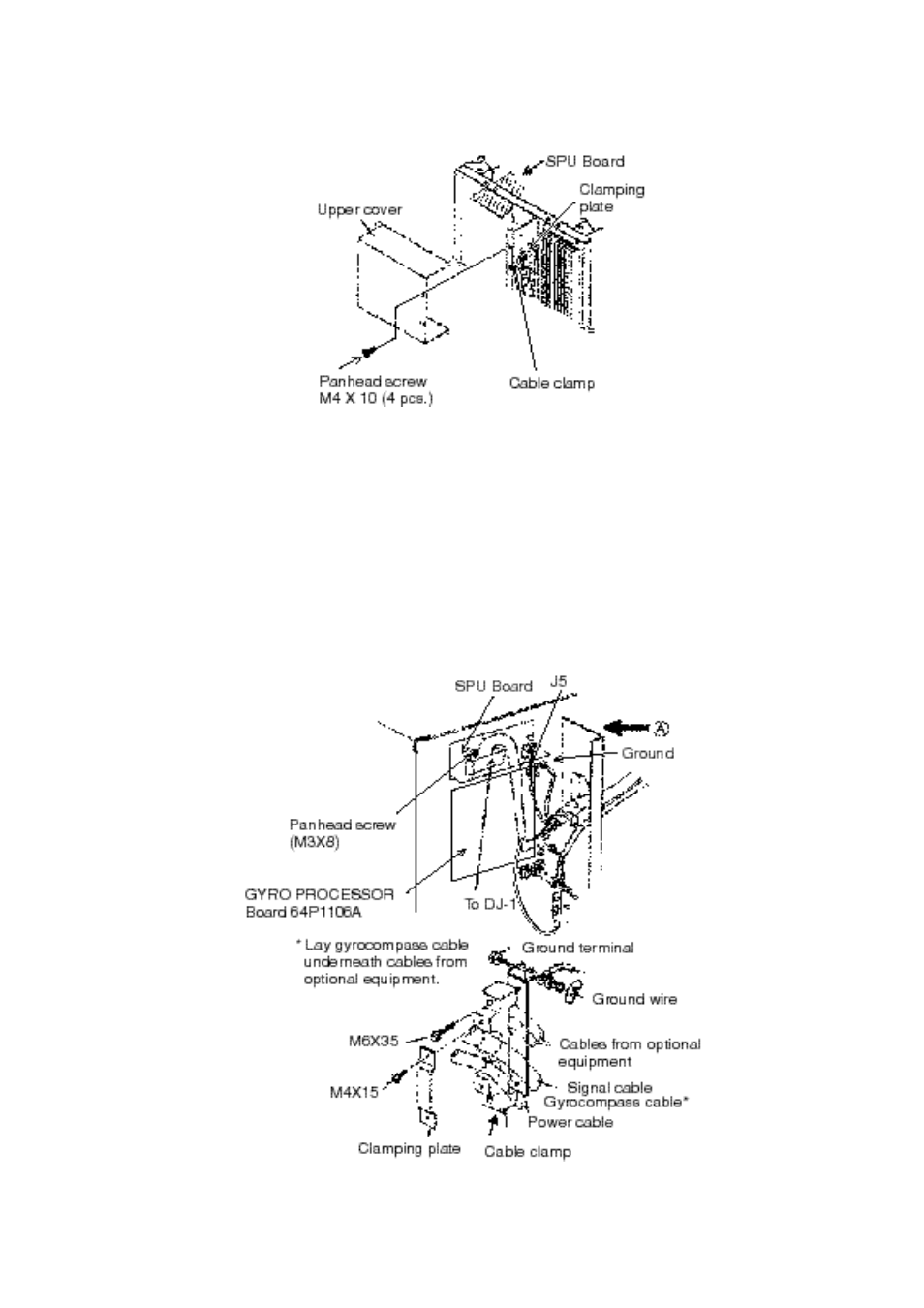

Figure 2-9 Display unit, rear view, cover removed
2. Dismount the clamping plate from the cable clamp by loosening two screws.
3. Lay the signal cable and power cable inside the cable clamp. Fasten the clamping
plate to the cable clamp by using two M4x15 screws. If optional equipment are
connected, secure the clamping plate by using two M6x35 bolts.
4. Connect the power cable and signal cable by referring to the interconnection
diagram. Fasten shields to chassis.
5. Run a ground wire (IV-8 sq, or equivalent) from the ground terminal to nearest
ground point.
Figure 2-10 Display unit, rear view
