1-3
O-ring
Radiator bracket
Waveguide
Antenna radiator
Hex bolt (M8X40), 8 pcs.
(XN20AF, XN24AF only)
Guide pin
(XN20AF,
XN24AF
only)
Hex bolt (M8X35), 8 pcs.
Flat washer
Spring washer
(XN12AF only)

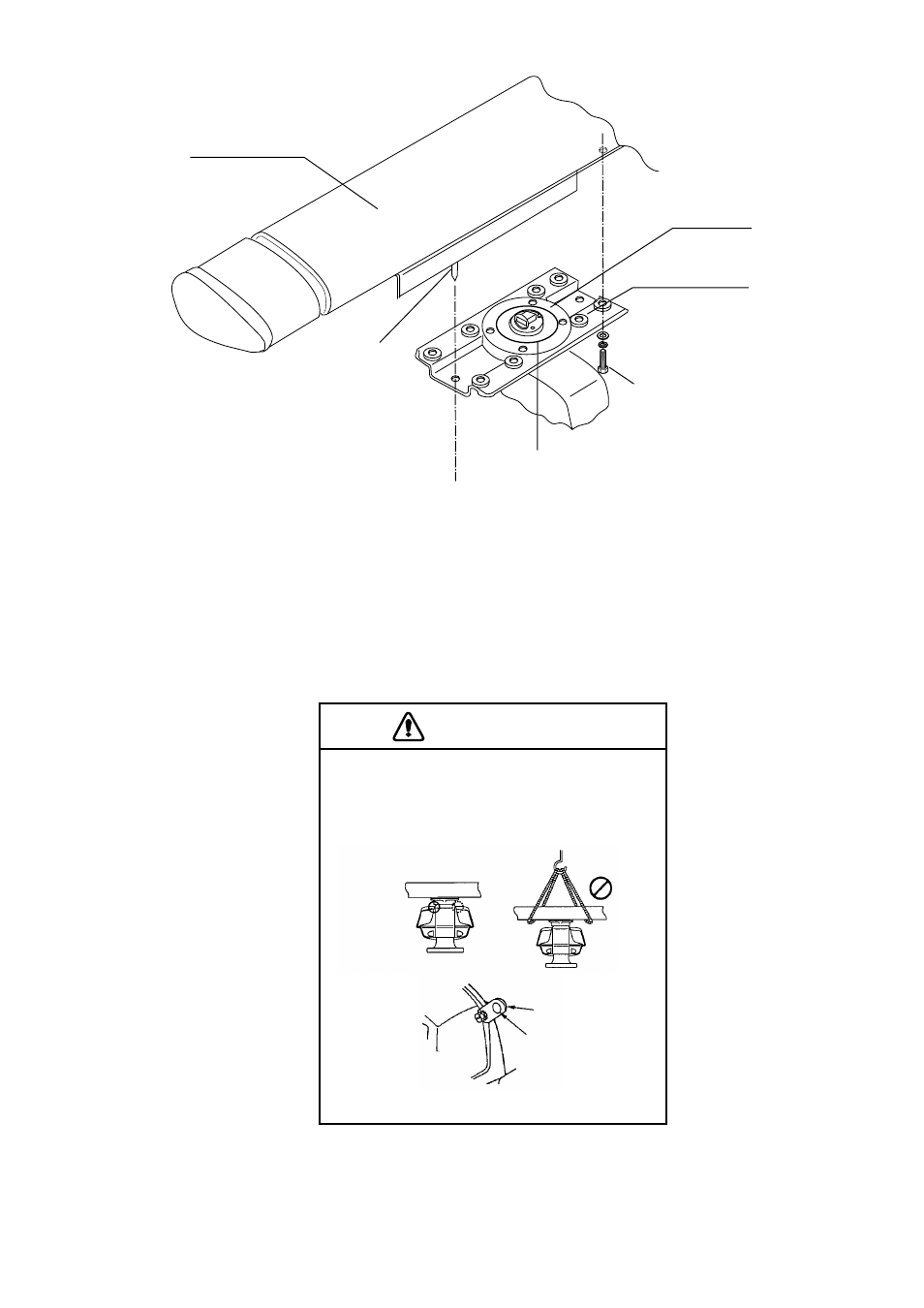

Figure 1-3 Fastening the radiator to the radiator bracket
Fastening the scanner unit to the mounting platform
The scanner unit may be assembled before hoisting it to the mounting platform.
However, do not lift the scanner unit by the radiator. Always hold the unit by its
housing. When using a crane or hoist, lift the unit by the hoist rings which should
be fastened to the bolt fixing covers of the scanner housing.
Tie rope here.
Remove lifting
fixtures after installation.
NO!
CAUTION CAUTION
DO NOT lift the scanner unit by the radiator;
attach rope to lifting fixtures on the chassis
and hoist by crane. Be sure stress is not
placed on the radiator when hoisting.
Lifting Fixture
(2 pcs.)
