2 display unit – Furuno FR1500 Mk3 User Manual
Page 21
2-5
2.2 Display Unit
At least two cables are terminated at the display unit: the signal cable S03-81 and
the power cable. The signal cable comes with a connector preattached to it for
connection to the display unit.
Fabricating the DC power cable (CVV-S 8X2C, option)
1. Remove the vinyl sheath by 40 mm.
2. Unravel the jute tape in the braided shield.
3. Remove sheath of cores by 10 mm.
4. Attach crimp-on lugs to shield and cores.
5. Tape the cable as shown in the figure below.

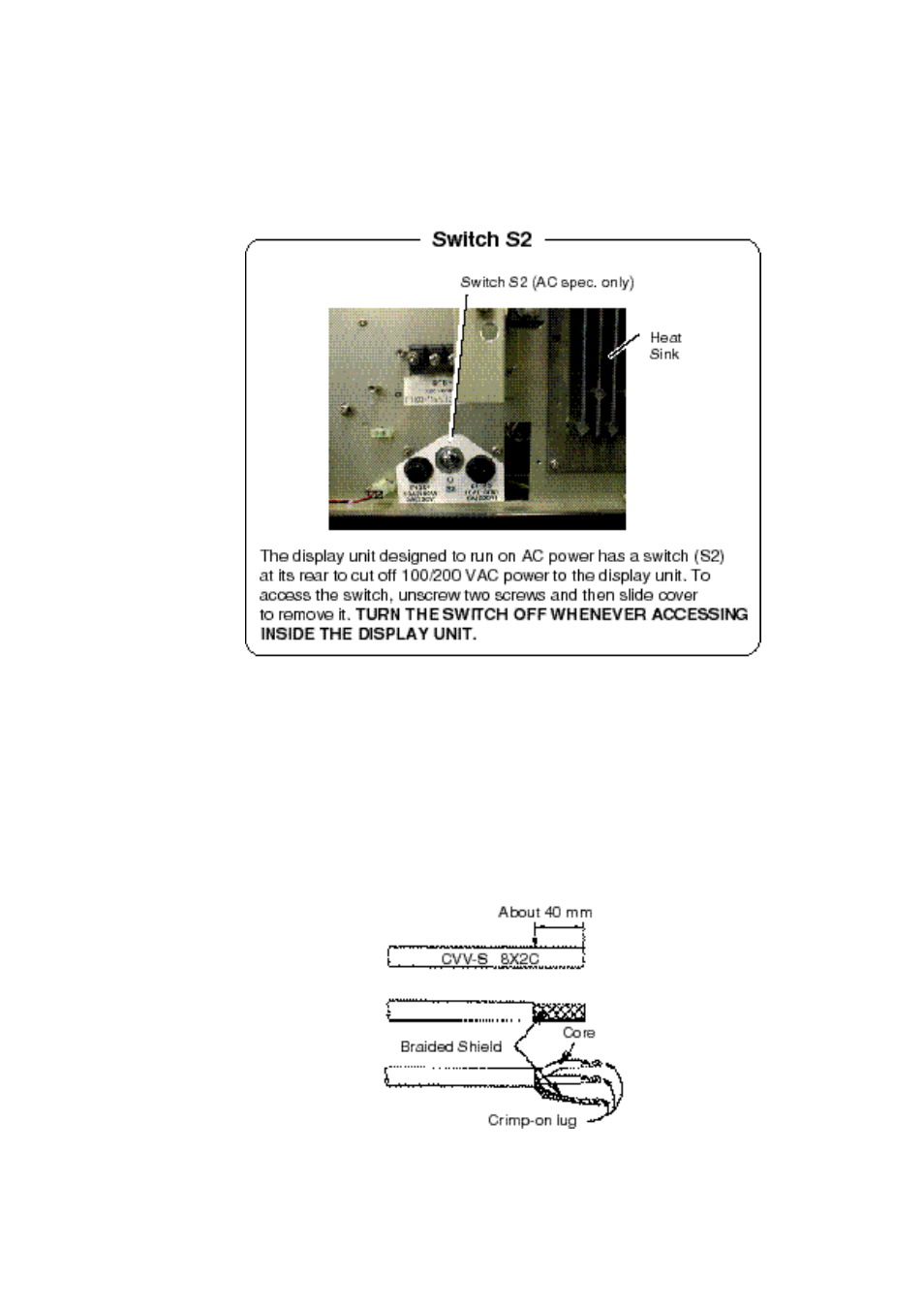

Figure 2-8 Fabricating power cable CVV-S 8X2C
