Page 35
9

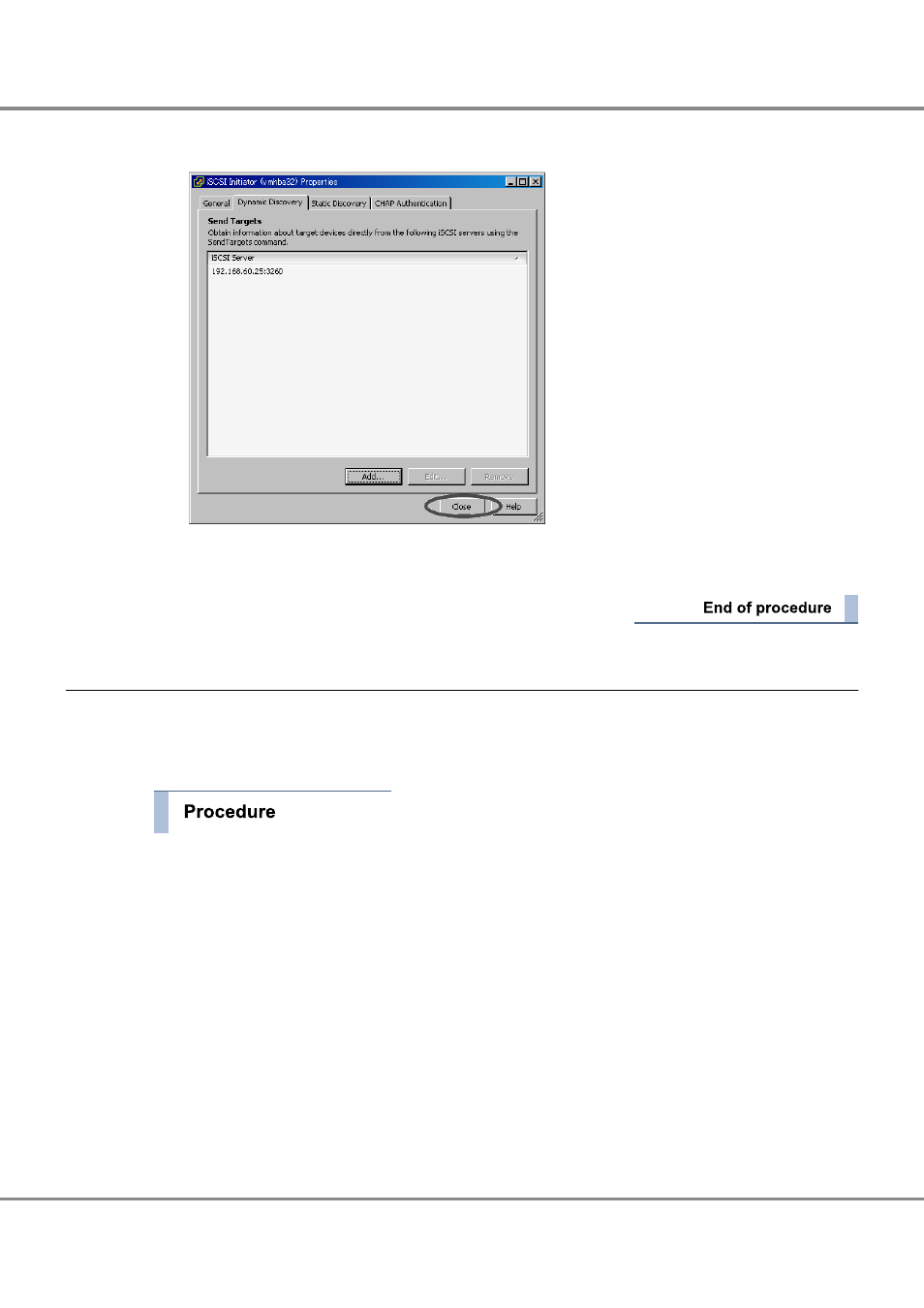

Confirm that the IP address for the iSCSI port of the ETERNUS DX Disk storage system is displayed as
follows and click [Close].
10
If the connected ETERNUS DX Disk storage system uses multiple iSCSI ports, repeat the IP address addi-
tion process for each iSCSI port. (Repeat
.)
6.2.5
Setting CHAP Authentication
For VMware ESX connections, the ETERNUS DX Disk storage system uses a one-way CHAP authentication to
authenticate the Software Initiator access.
Perform the following settings to enable CHAP authentication.
1
Select the [Configuration] tab on VMware Infrastructure Client and select [Storage Adapters].
2
Select the target iSCSI Software Adapter and click [Properties].
3
Select the [CHAP Authentication] tab and click [Configure].
4
Select the [Use the following CHAP credentials] radio button.
5
Set arbitrary user name during the CHAP authentication.
Chapter 6 Setting Up the VMware ESX Server
6.2 For VMware Infrastructure 3
35
