FUJITSU MCJ3230SS User Manual
Page 76
Host Interface
4-2
C156-E224-01EN
Symbol
mm
Remarks
C1
2.540
-
C2
60.960
-
C3
2.540
-
C4
3.302
-
C5
32.385
-
C6
68.072
-
C7
6.096
-
C8
7.620
Maximum value
Notes:
1.
The tolerance is
± 0.127 mm unless otherwise specified.
2.
A connector cover and strain relief are not shown in this figure.

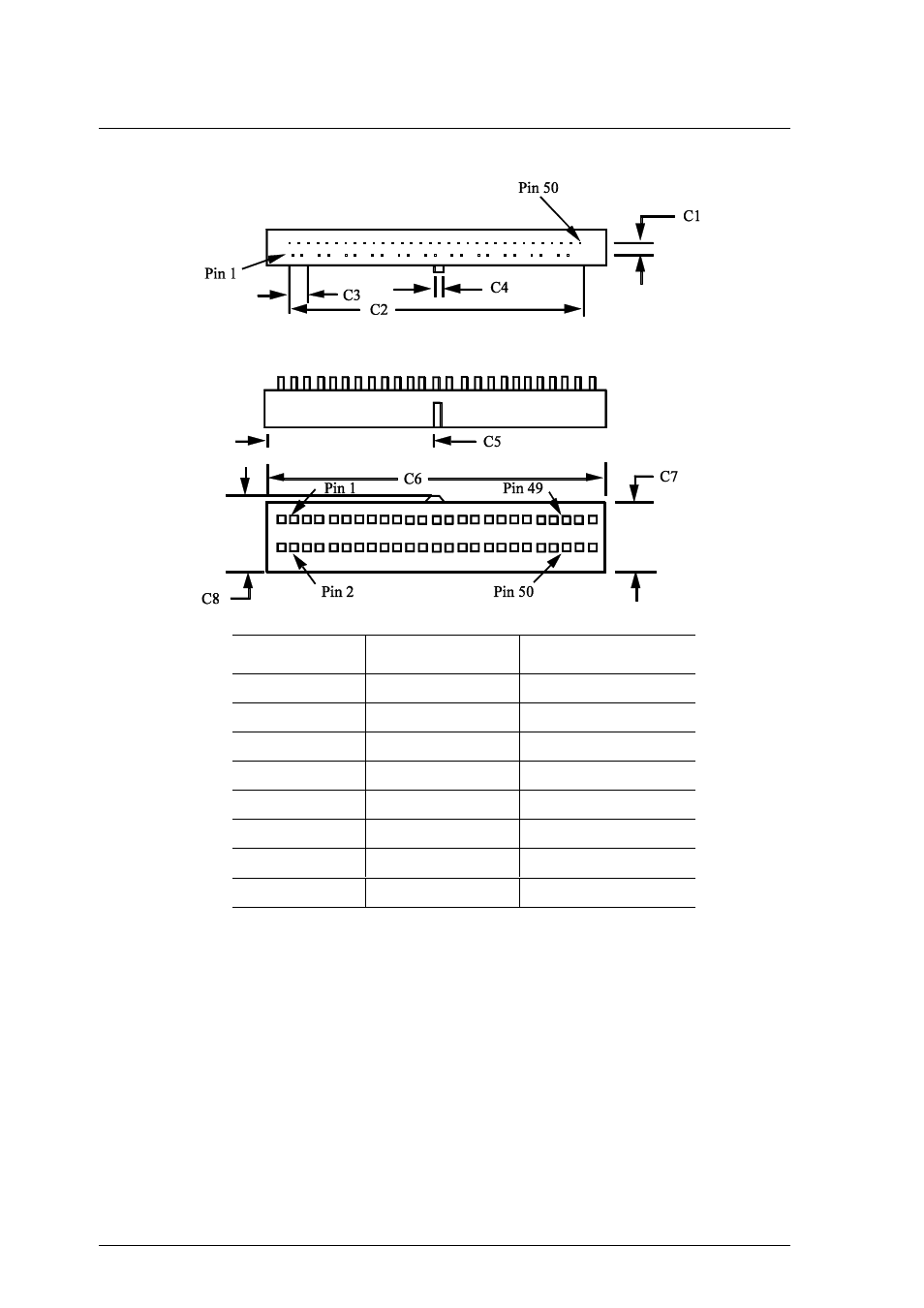

Figure 4.2 SCSI interface connector (cable side)
