3 connection modes – FUJITSU MCJ3230SS User Manual
Page 62
Installation Requirements
3-16
C156-E224-01EN
3.4.3 Connection Modes
Figure 4.3 shows examples of connections between the host system and the optical
disk drive. Up to eight devices including the host adapter, optical disk drive, and
other SCSI equipment can be connected to the SCSI bus in arbitrary combinations.
Install a terminating resistor on the SCSI devices connected to either end of the
SCSI cable.
See Section 3.4 for the cable connection requirements and power cable
connections.

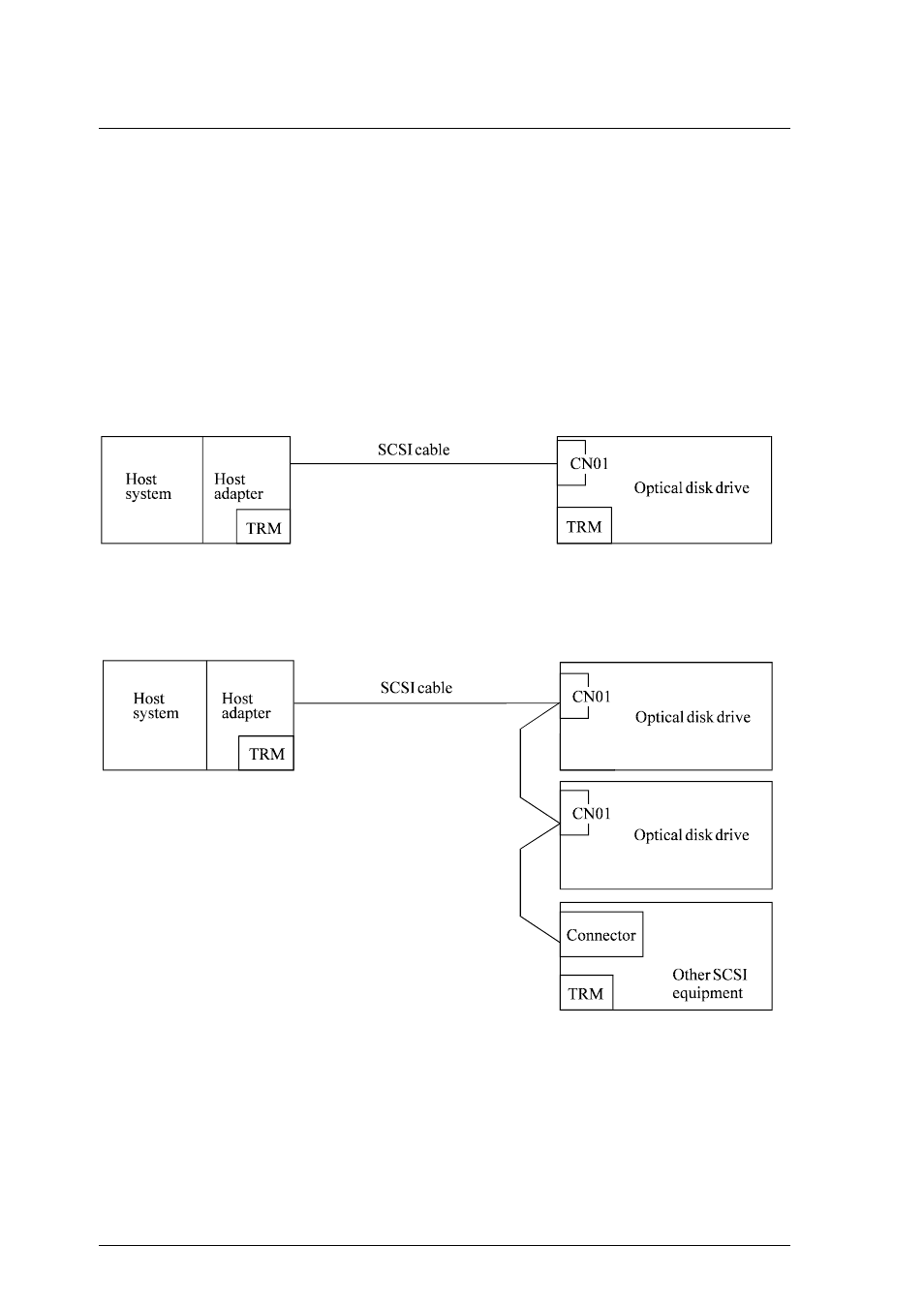

a.
Connecting one optical disk drive
b.
Connecting more than one optical disk drive (single host)
Figure 3.12 SCSI bus connection modes
