Connection to a simplex 4100u/4100es panel – FieldServer FS-8700-41 User Manual
Page 8
FS-8700-41 Simplex 4100 Driver Manual
Page 8 of 48
FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com
Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: [email protected]
3.4

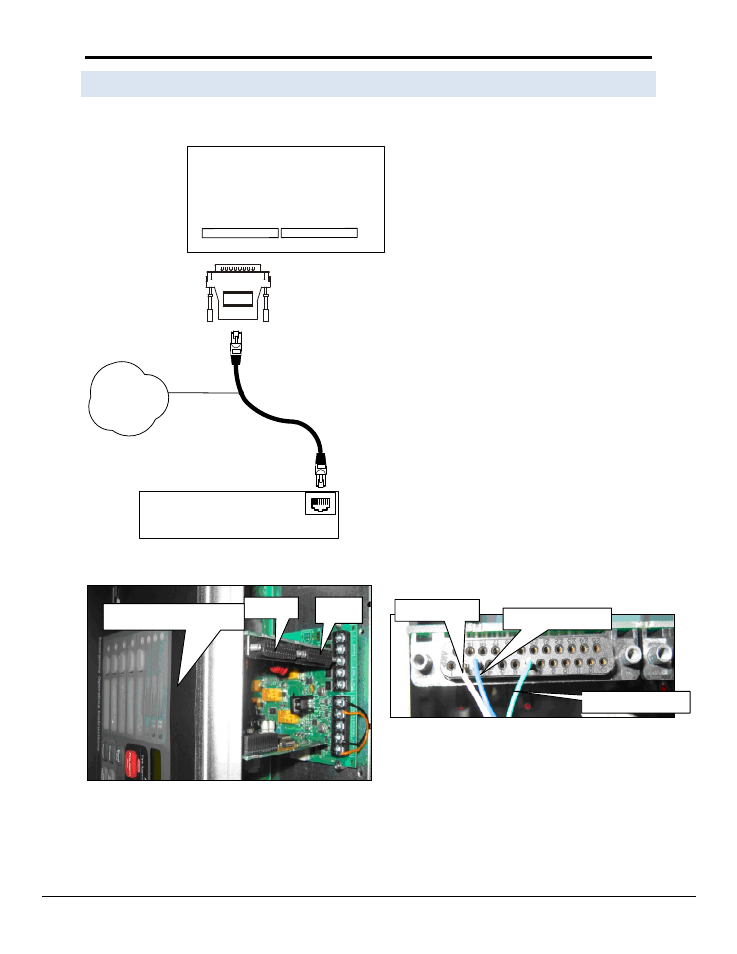

Connection to a Simplex 4100U/4100ES Panel
FS-8717-07
Port B
RS-232 Card
Sim4100U Panel
FieldServer
P1
1
8
8917-07
FieldServer Part #
8915-10
UTP cable
Port B
Port A
Front of 4100U Panel
Pin 2 - White
Pin 3 - Blue
Pin 7 - Green
