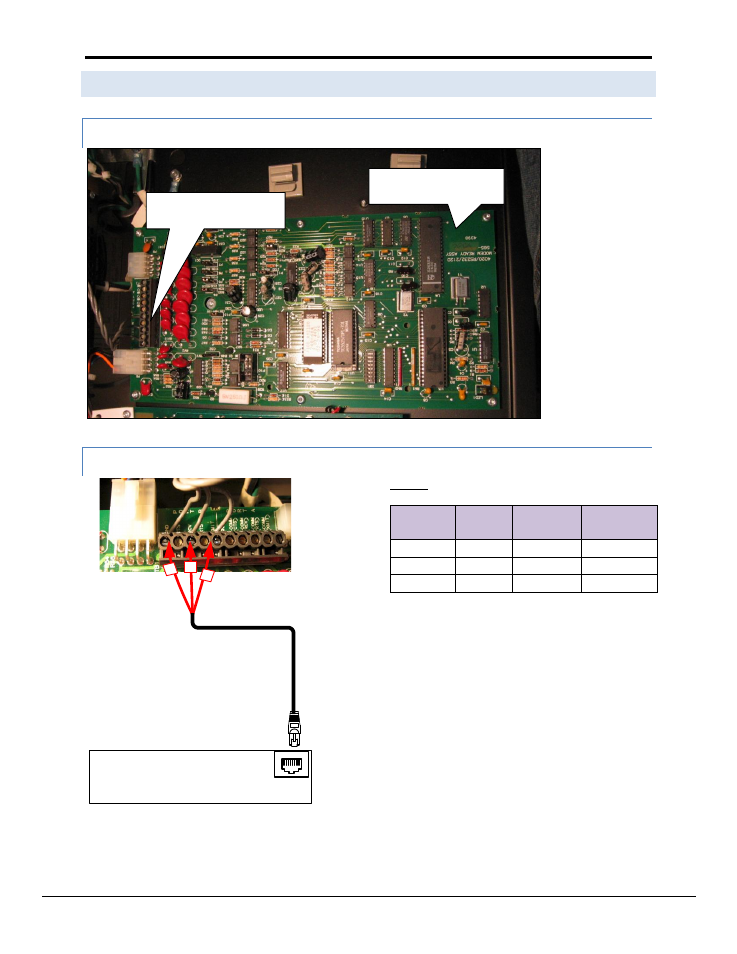

3.3 Connection to a Simplex 4020/4100 Panel
3.3.1 Communication Board
3.3.2 Serial Connection
1
4 8
FS-8917-16
FieldServer
P1
1 8
Pinouts
FS-X40
Function From Simplex
Panel Terminal
Block #
Rx RJ45-01 XMIT 6
Tx RJ45-08 RCV 8
GND RT45-04 GND 10
Card 4020/RS-232/2120
modem ready assembly.
Terminal Block
Port A =1-5, Port B=6-10.
