27

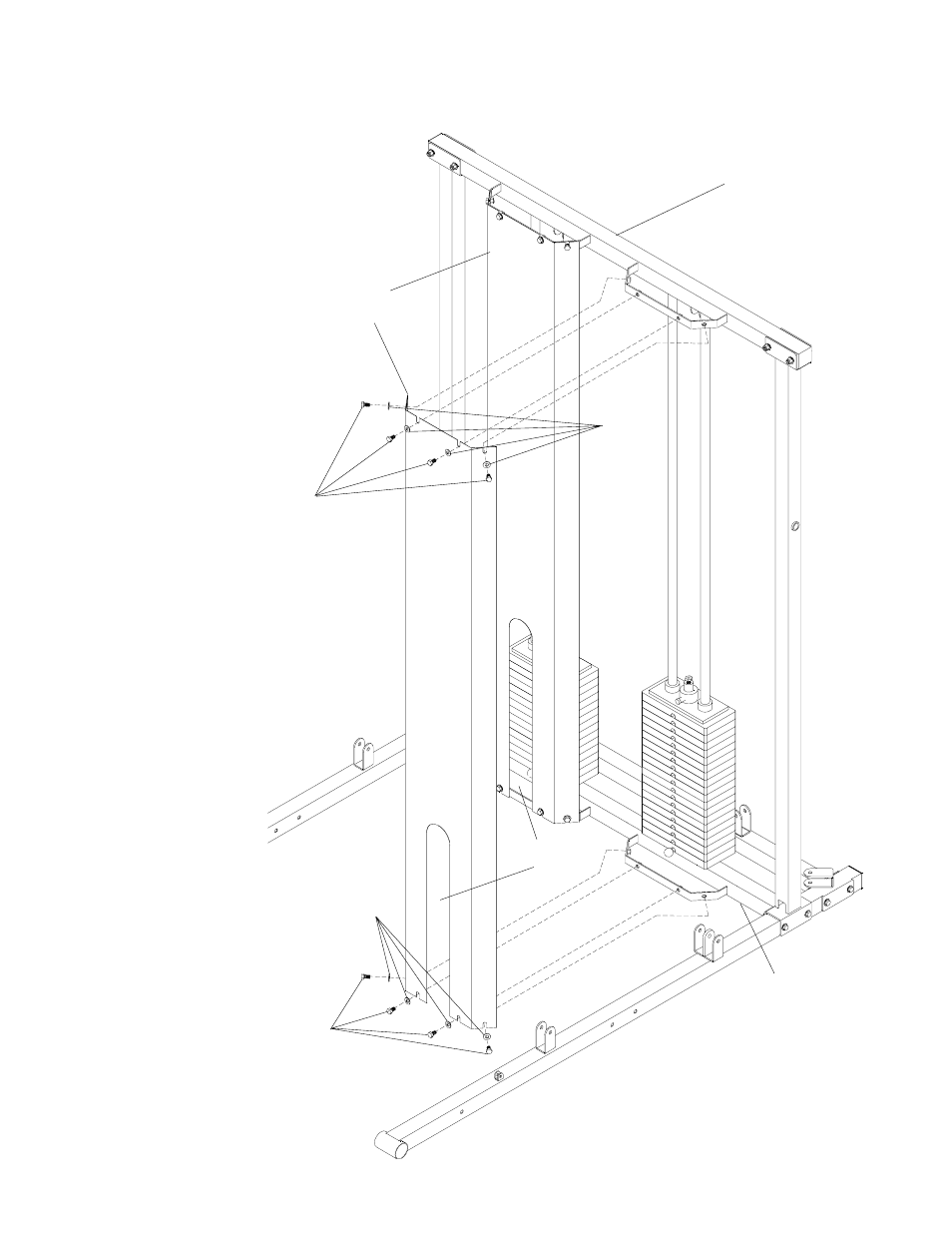

FIGURE 12
Step 70. Attach SHROUDS (36), with SLOT at bottom, to TOP CROSS FRAME (10) and CENTER BRACE
TUBE “B” (8) using 3/8” x 3/4” HEX BOLTS (50) and 3/8” WASHERS (62).
FIGURE 12
36
SHROUD
62
3/8”
WASHER
50
3/8” x 3/4”
HEX BOLT
SLOT
62
3/8”
WASHER
50
3/8” x 3/4”
HEX BOLT
10
TOP
CROSS
FRAME
8
CENTER
BRACE
TUBE
“B”
