16
Step 20.
Step 21.
Step 22.

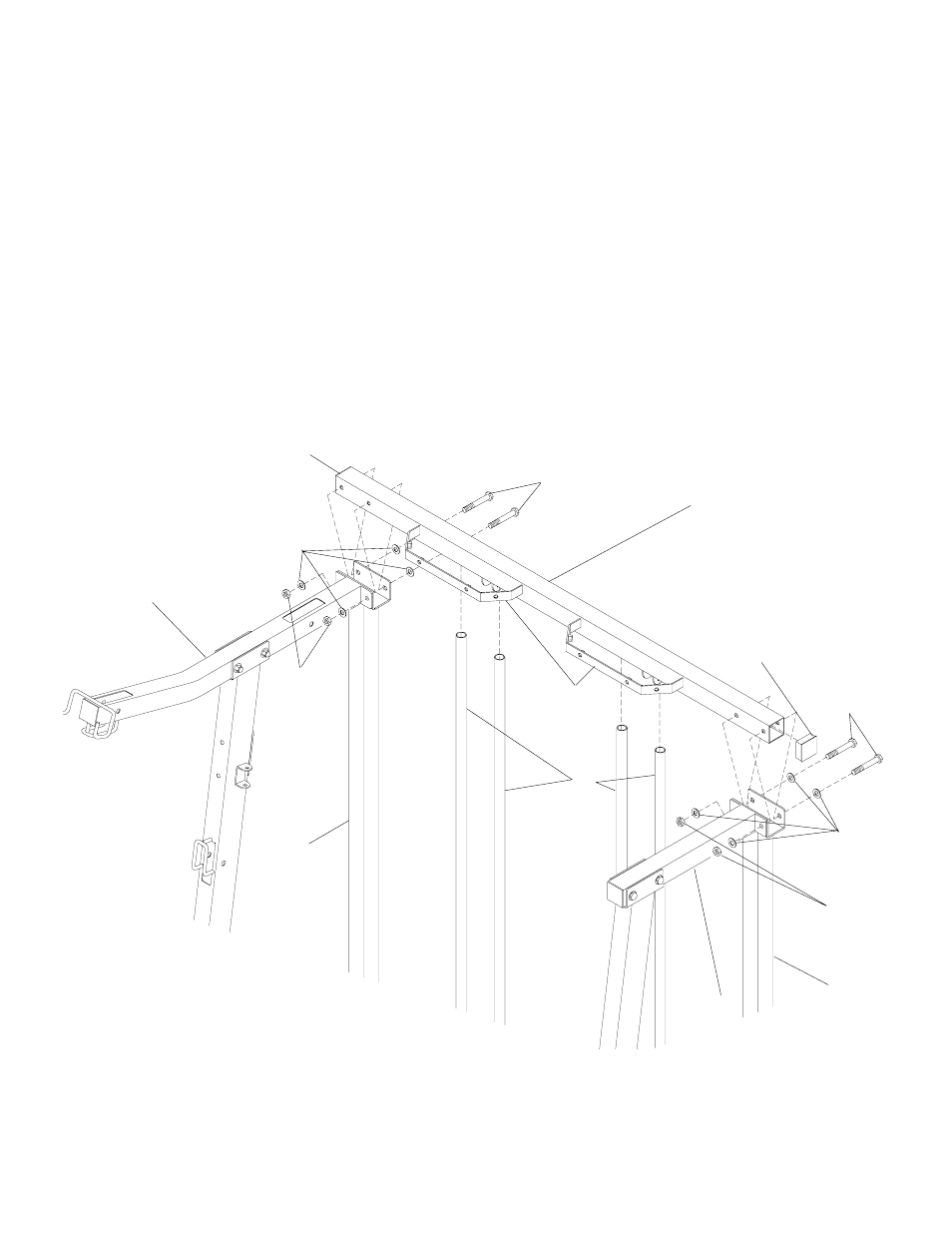

FIGURE 4
Push 2” SQUARE END PLUGS (71) into each end of TOP CROSS FRAME (10).
Place TOP CROSS FRAME (10) into top of VERTICAL FRAMES (3 RIGHT & 5 LEFT) and over
GUIDE RODS (9) with SHROUD BRACKETS facing front as shown.
Attach RIGHT TOP CROSS FRAME (11), LEFT TOP CROSS FRAME (4) and TOP CROSS
FRAME (10) to RIGHT VERTICAL FRAME (3) and LEFT VERTICAL FRAME with 3/8” x 3” HEX
BOLTS (54), 3/8” WASHERS (62) and 3/8” LOCKNUTS (67).
11
RIGHT TOP
CROSS
FRAME
10
TOP
CROSS
FRAME
SHROUD
BRACKET
71
2” SQUARE
END PLUG
3
RIGHT
VERTICAL
FRAME
5
LEFT
VERTICAL
FRAME
71
2” SQUARE
END PLUG
12
LEFT TOP
CROSS
FRAME
9
GUIDE
ROD
54
3/8” x 3”
HEX BOLT
54
3/8” x 3”
HEX BOLT
67
3/8”
LOCKNUT
62
3/8”
WASHER
67
3/8”
LOCKNUT
62
3/8”
WASHER
FIGURE 4
