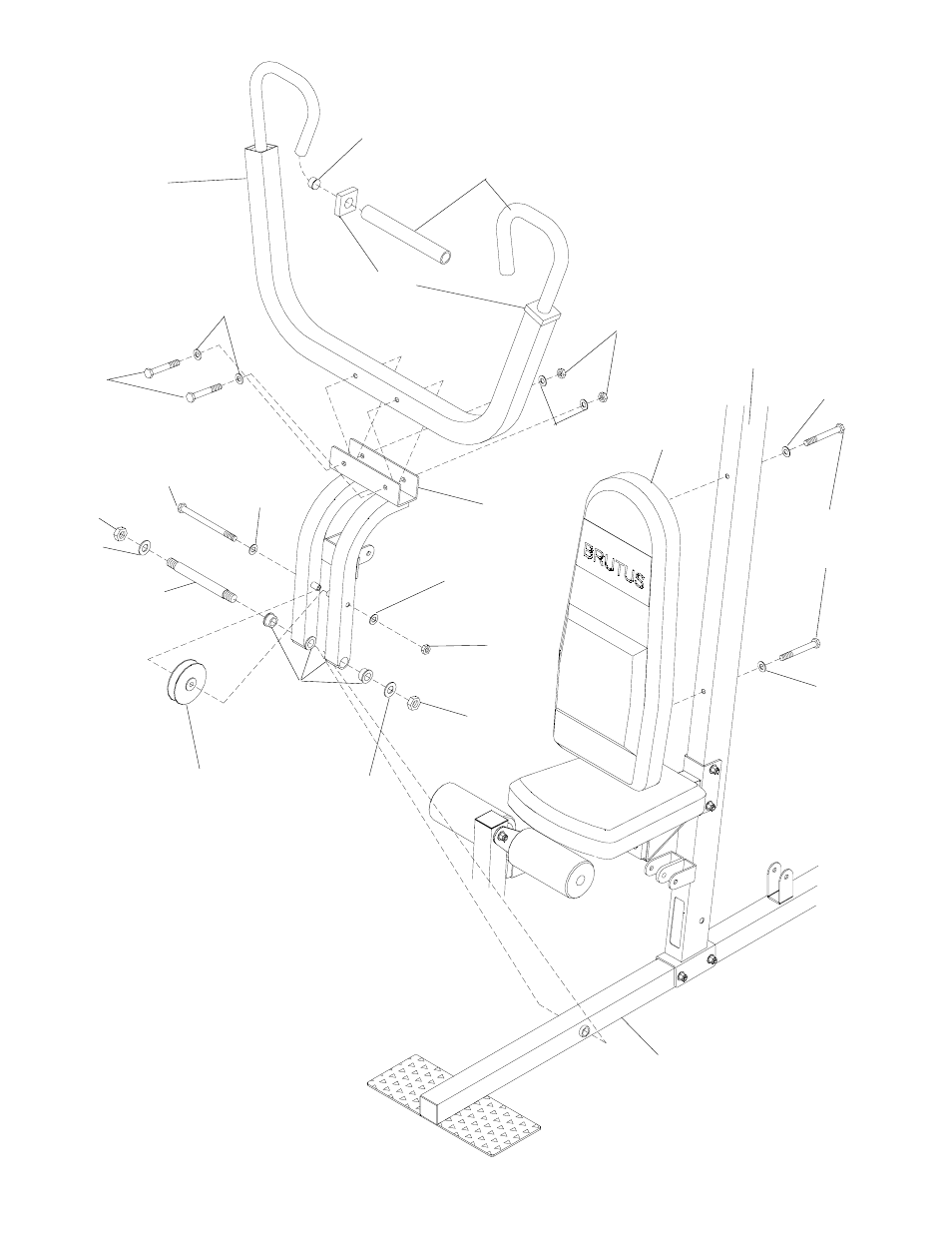

FIGURE 8
31
RIGHT
BACKREST
CUSHION
2
RIGHT
OBLIQUE
FRAME
53
3/8” x 2-5/8”
HEX BOLT
62
3/8”
WASHER
70
3/4”
BUSHING
20
RIGHT BENCH
PRESS FRAME
76
PULLEY
59
3/8” x 6-1/8”
HEX BOLT
62
3/8”
WASHER
61
5/8” x 7-3/4”
SHAFT BAR
65
5/8”
WASHER
1
RIGHT
BASE
BEAM
67
3/8”
LOCKNUT
66
5/8”
LOCKNUT
62
3/8”
WASHER
62
3/8”
WASHER
67
3/8”
LOCKNUT
62
3/8”
WASHER
66
5/8”
LOCKNUT
65
5/8”
WASHER
54
3/8” x 3”
HEX BOLT
74
1”
ROUND
END PLUG
19
RIGHT
PRESS
ARM
72
2”
SQUARE
END CAP
84
LONG
FOAM
GRIP
62
3/8”
WASHER
