Step 17.
Step 18.
Step 19.

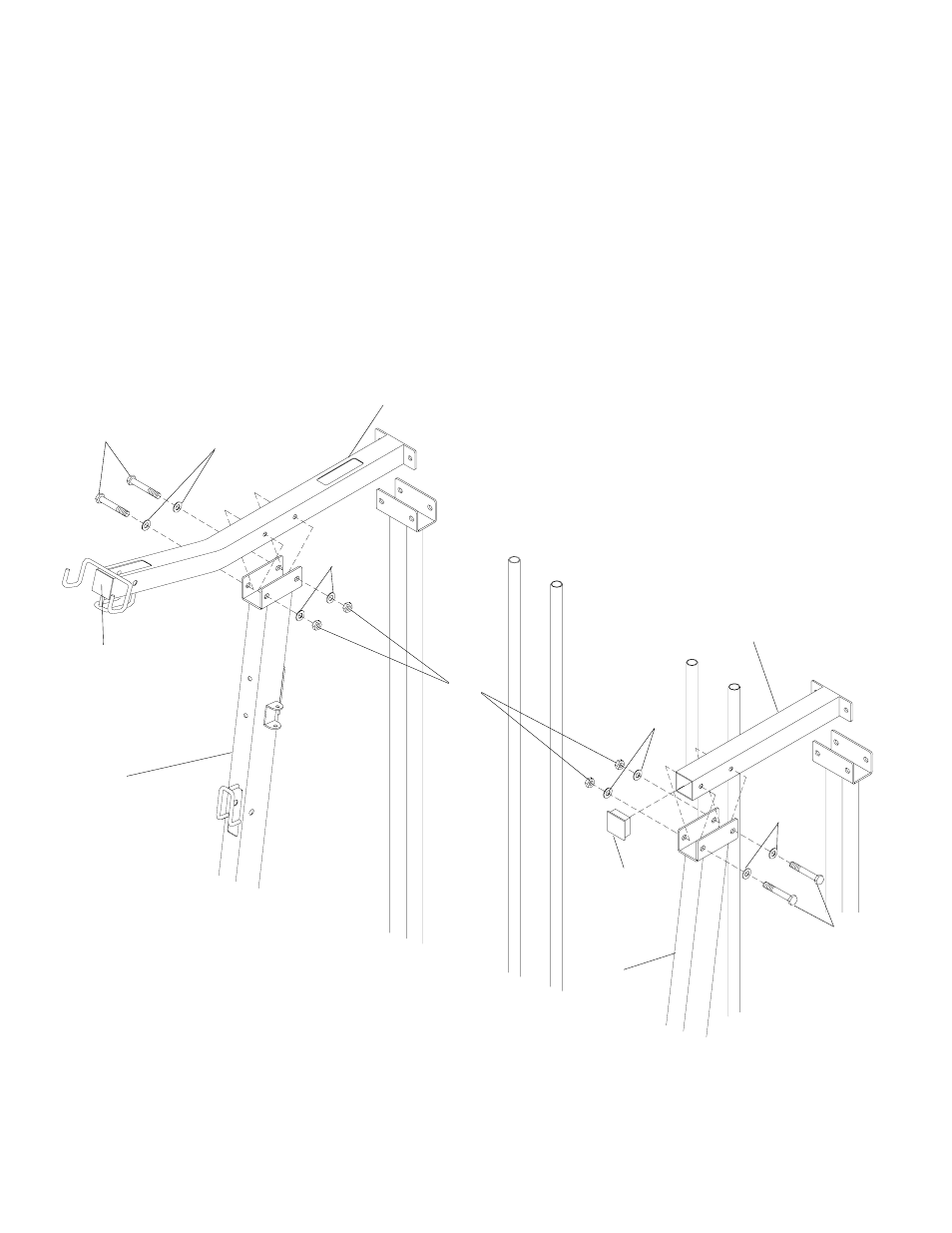

FIGURE 3
4
LEFT
OBLIQUE
FRAME
2
RIGHT
OBLIQUE
FRAME
67
3/8”
LOCKNUT
62
3/8”
WASHER
71
2” SQUARE
END PLUG
71
2” SQUARE
END PLUG
Push 2” SQUARE END PLUG (71) into end of TOP CROSS FRAMES (11 RIGHT and 12 LEFT).
Attach RIGHT TOP CROSS FRAME (11) to RIGHT OBLIQUE FRAME (2) with 3/8” x 2-5/8” HEX
BOLTS (53), 3/8” WASHERS (62) and 3/8” LOCKNUTS (67).
Attach LEFT TOP CROSS FRAME (12) to LEFT OBLIQUE FRAME (4) with 3/8” x 2-5/8” HEX
BOLTS (53), 3/8” WASHERS (62) and 3/8” LOCKNUTS (67).
11
RIGHT TOP
CROSS
FRAME
12
LEFT TOP
CROSS
FRAME
53
3/8” x 2-5/8”
HEX BOLT
62
3/8”
WASHER
62
3/8”
WASHER
53
3/8” x 2-5/8”
HEX BOLT
62
3/8”
WASHER
FIGURE 3
