18

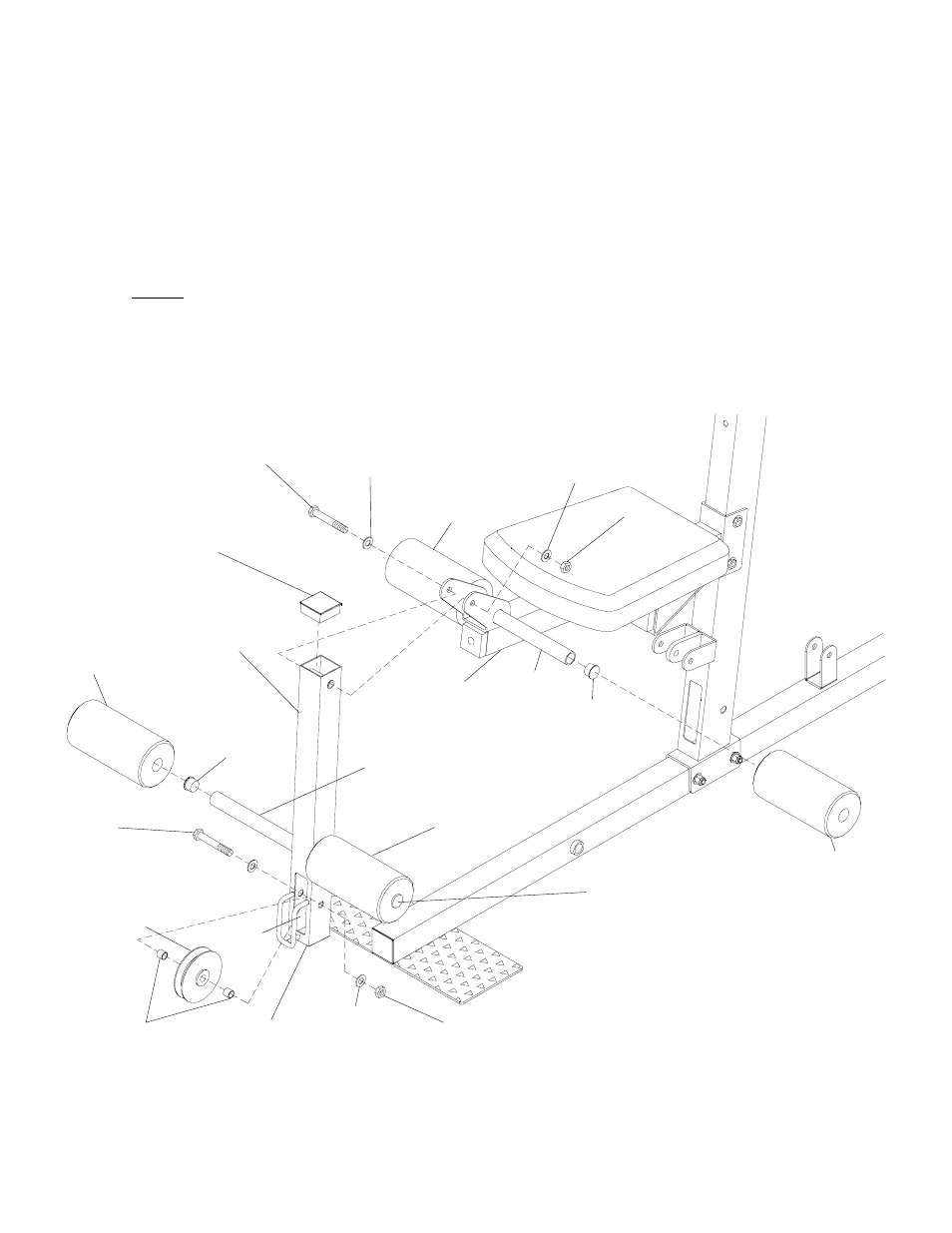

FIGURE 6
Step 26.
Step 27.
Step 28.
Step 29.
Step 30.
Push 2” SQUARE END PLUGS (71) into each end of LEG EXTENSION FRAME (14).
Attach LEG EXTENSION FRAME (14) to RIGHT SEAT CUSHION FRAME (13) with 3/8” x 2-5/8”
HEX BOLT (53), 3/8” WASHER (62) and 3/8” LOCKNUT (67).
Place a PULLEY (76) into SLOT in LEG EXTENSION FRAME (14) and fasten with 3/8” x 2” HEX
BOLTS (51), 3/8” WASHERS (62), 13mm BUSHINGS (46) and 3/8” LOCKNUTS (67).
Push 1” ROUND END PLUGS (74) into ends of FOAM RODS (17).
NOTE: Liquid soap applied to FOAM RODS (17) will help FOAM ROLLS (83) slide on easier.
Slide one FOAM ROLL onto one end of FOAM ROD, insert one FOAM ROD through RIGHT
SEAT CUSHION FRAME (13) and the other through the LEG EXTENSION FRAME (14) and
slide other FOAM ROLL onto other end.
53
3/8” x 2-5/8”
HEX BOLT
71
2”
SQUARE
END PLUG
67
3/8”
LOCKNUT
14
LEG
EXTENSION
FRAME
76
PULLEY
62
3/8”
WASHER
13
RIGHT
SEAT
CUSHION
FRAME
71
2”
SQUARE
END PLUG
62
3/8”
WASHER
67
3/8”
LOCKNUT
46
13mm
BUSHING
74
1”
ROUND
END PLUG
62
3/8”
WASHER
74
1”
ROUND
END PLUG
SLOT
51
3/8” x 2”
HEX BOLT
17
FOAM
ROD
83
FOAM
ROLL
74
1”
ROUND
END PLUG
83
FOAM
ROLL
83
FOAM
ROLL
83
FOAM
ROLL
17
FOAM
ROD
FIGURE 6
