19

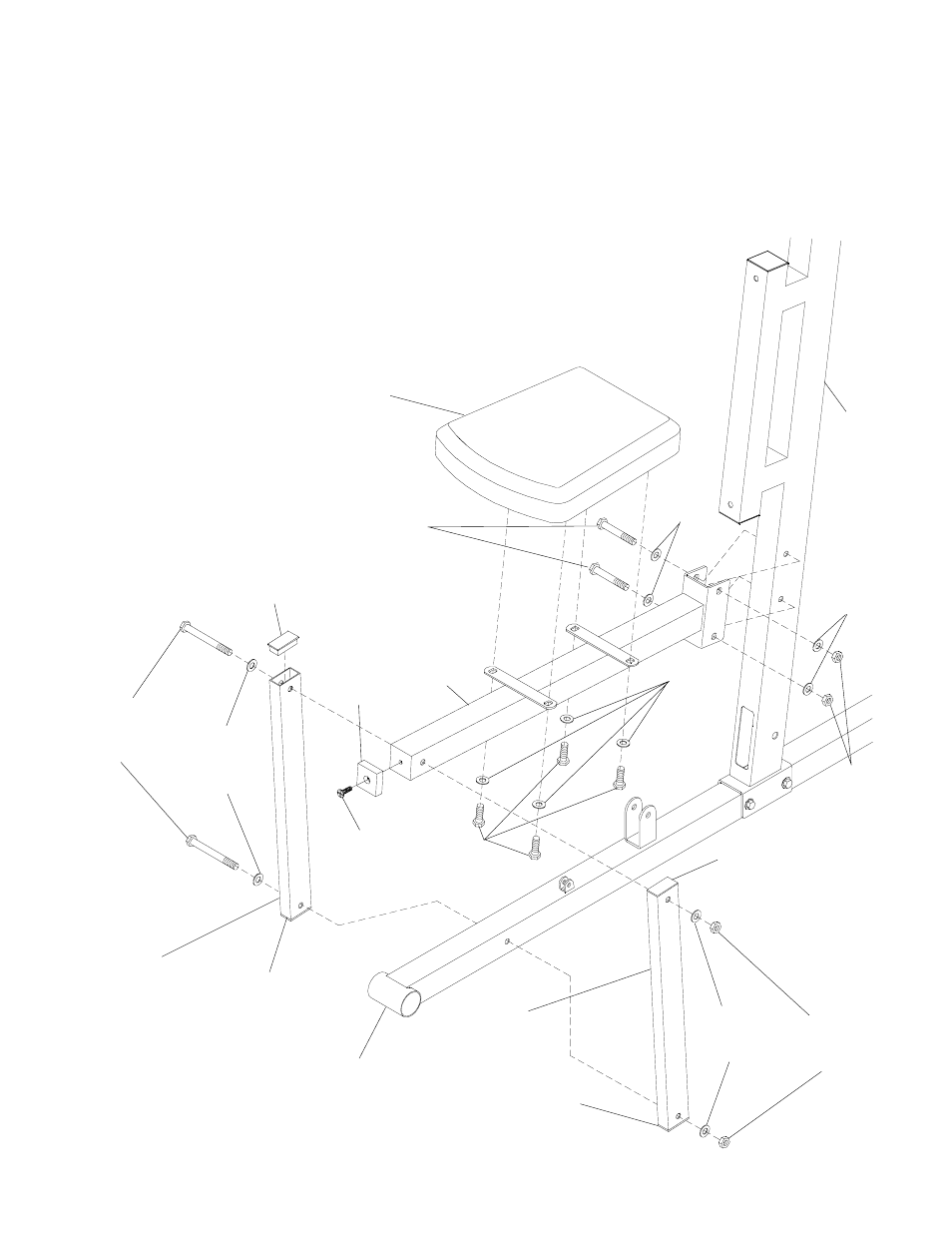

FIGURE 7
Step 31.
Step 32.
Step 33.
Step 34.
Step 35.
Attach 2” SQUARE RUBBER BUMPER (81) to LEFT SEAT CUSHION FRAME (15) with M10 x
25mm SCREW (47).
Attach LEFT SEAT CUSHION FRAME (15) to LEFT OBLIQUE FRAME (4) with 3/8” x 2-5/8”
HEX BOLTS (53) 3/8” WASHERS (62) and 3/8” LOCKNUTS (67).
Attach SEAT CUSHION (18) to LEFT SEAT CUSHION FRAME (15) with M8 x 15mm HEX BOLTS
(49) and M8 WASHERS (64).
Push 1-3/8” x 2” END CAP (72) into ends of CONNECTOR TUBES (16).
Attach CONNECTOR TUBES (16) to LEFT SEAT CUSHION FRAME (15)
and LEFT BASE BEAM (6) with 3/8” x 4-1/2” HEX BOLTS (57),
3/8” WASHERS (62) and 3/8” LOCKNUTS (67).
81
2”
SQUARE
RUBBER
BUMPER
47
M10 x 25mm
SCREW
67
3/8”
LOCKNUT
62
3/8”
WASHER
18
SEAT
CUSHION
49
M8 x 15mm
HEX BOLT
64
M8
WASHER
53
3/8” x 2-5/8”
HEX BOLT
4
LEFT
OBLIQUE
FRAME
15
LEFT
SEAT
CUSHION
FRAME
73
1” x 2”
END PLUG
16
CONNECTOR
TUBE
6
LEFT BASE
BEAM
57
3/8” x 4-1/2”
HEX BOLT
67
3/8”
LOCKNUT
62
3/8”
WASHER
62
3/8”
WASHER
62
3/8”
WASHER
FIGURE 7
73
1” x 2”
END PLUG
73
1” x 2”
END PLUG
73
1” x 2”
END PLUG
16
CONNECTOR
TUBE
