Chapter 1 About ETERNUSmgr
>
1.1 ETERNUSmgr Outline
ETERNUS Disk storage systems ETERNUSmgr User Guide -Introduction-
9
Copyright 2009 FUJITSU LIMITED
P2X0-0202-04ENZ0

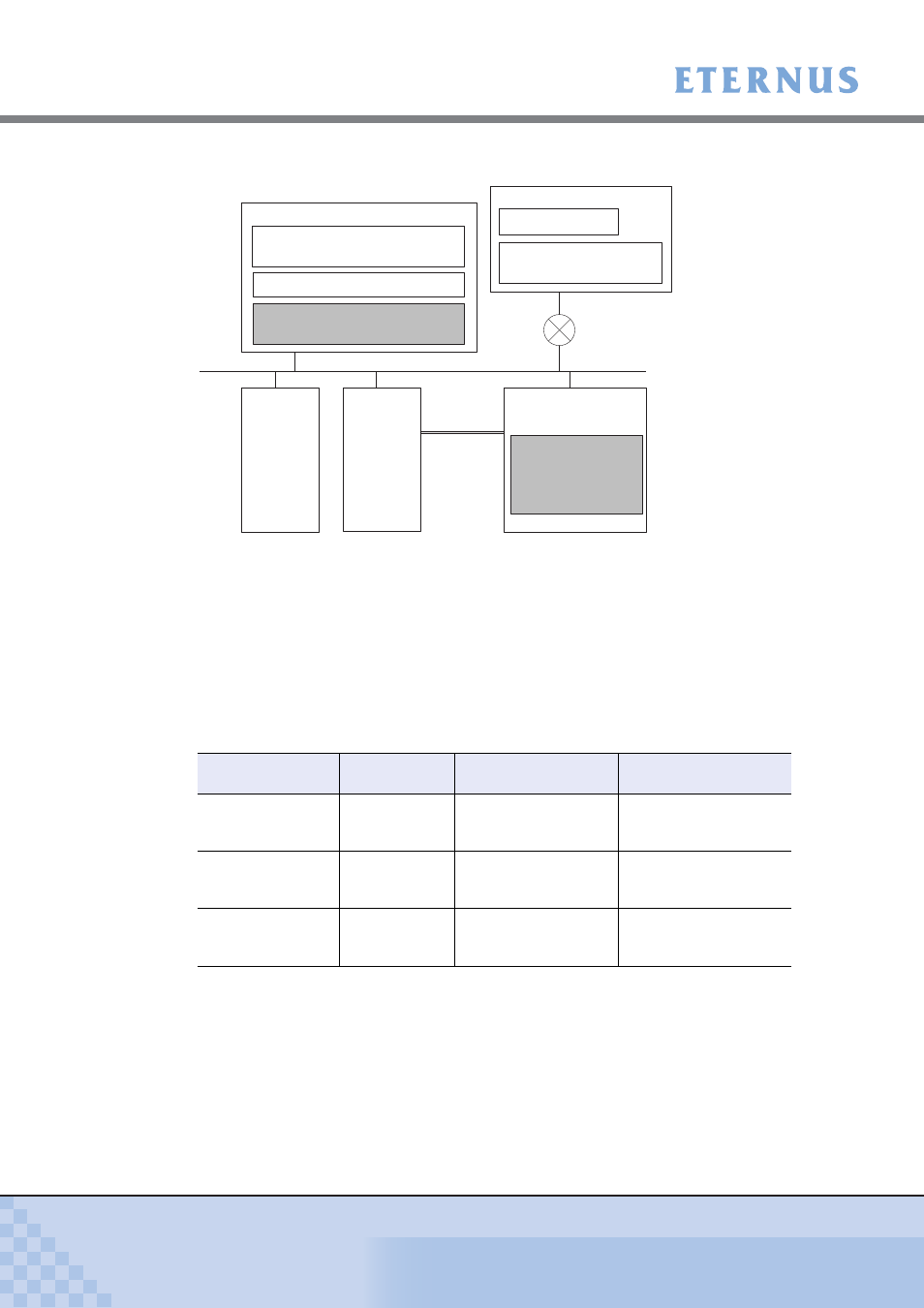

ETERNUSmgr System Configuration
The ETERNUSmgr server and work server may be collocated on the same physical server.
The management server must be running when ETERNUSmgr is used to perform maintenance
tasks.
■ Network Requirements
When setting up the firewall between the server, client, and target device, the following port num-
bers must be set to allow the subsequent transmission to pass the firewall.
• Client communication
*1: Depends on Web Server program settings
*2: Port number can be changed for the ETERNUS DX400 series, ETERNUS DX8000 series,
ETERNUS4000 models 300, 400, 500, and 600, and ETERNUS8000.
Managing Server
Mail Server
(Windows
 version excluded)
Web Server program
Frontend
- Status monitoring and
mail notification
LAN
ETERNUS Disk storage
system
Work Server
Fibre
Channel
Web Browser
Client
WAN
Mail Server
(Windows

version Only)
Windows
/Solaris OS/HP-UX/AIX/Linux
Backend
- Status display
- Configuration display
and change
- Setup and
maintenance
Java Runtime Environment
(for ETERNUS2000)
Communication
target
Port No./
Protocol
Communication
direction
Function
Managing Server 80/tcp (*1) Client
→ Managing
Server
Display top menu
Display alarm history
files
Target Device
(ETERNUS2000) 80/tcp or 443/
tcp Client
→ Target Device
Display device
configuration
Setup and maintenance
Target Device
(Other than
ETERNUS2000) 80/tcp (*2) Client
→ Target Device
Display device
configuration
Setup and maintenance
