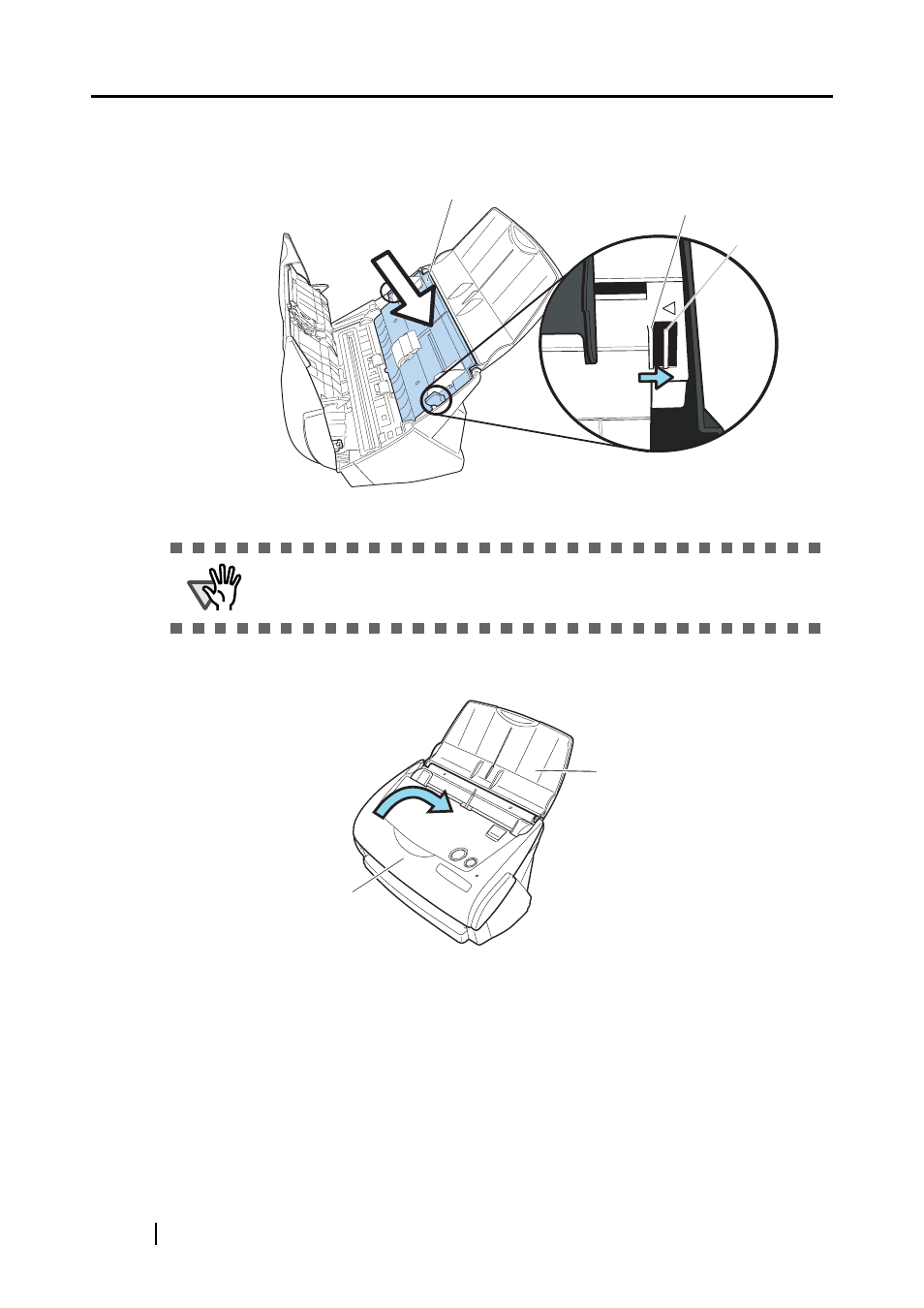

10. Attach the sheet guide to the scanner.
Pinch the handles on both sides of the sheet guide and attach it to the scanner.
⇒
The sheet guide makes a clicking sound when the claws settle into position.
11. Close the ADF.
⇒
You should hear the ADF click when it returns to its original position.
12. Turn on the scanner.
ATTENTION
Make sure that the sheet guide is fully attached. Otherwise, document jams or
other feeding errors may occur.
Handle
Sheet guide
Claw
Paper chute cover
ADF cover
