3 replacing the pick roller – FUJITSU fi-5110EOXM User Manual
Page 108
92
7.3
Replacing the Pick Roller
Replace the Pick roller following the procedure below.
1.
Remove the documents on the paper chute cover.
2.

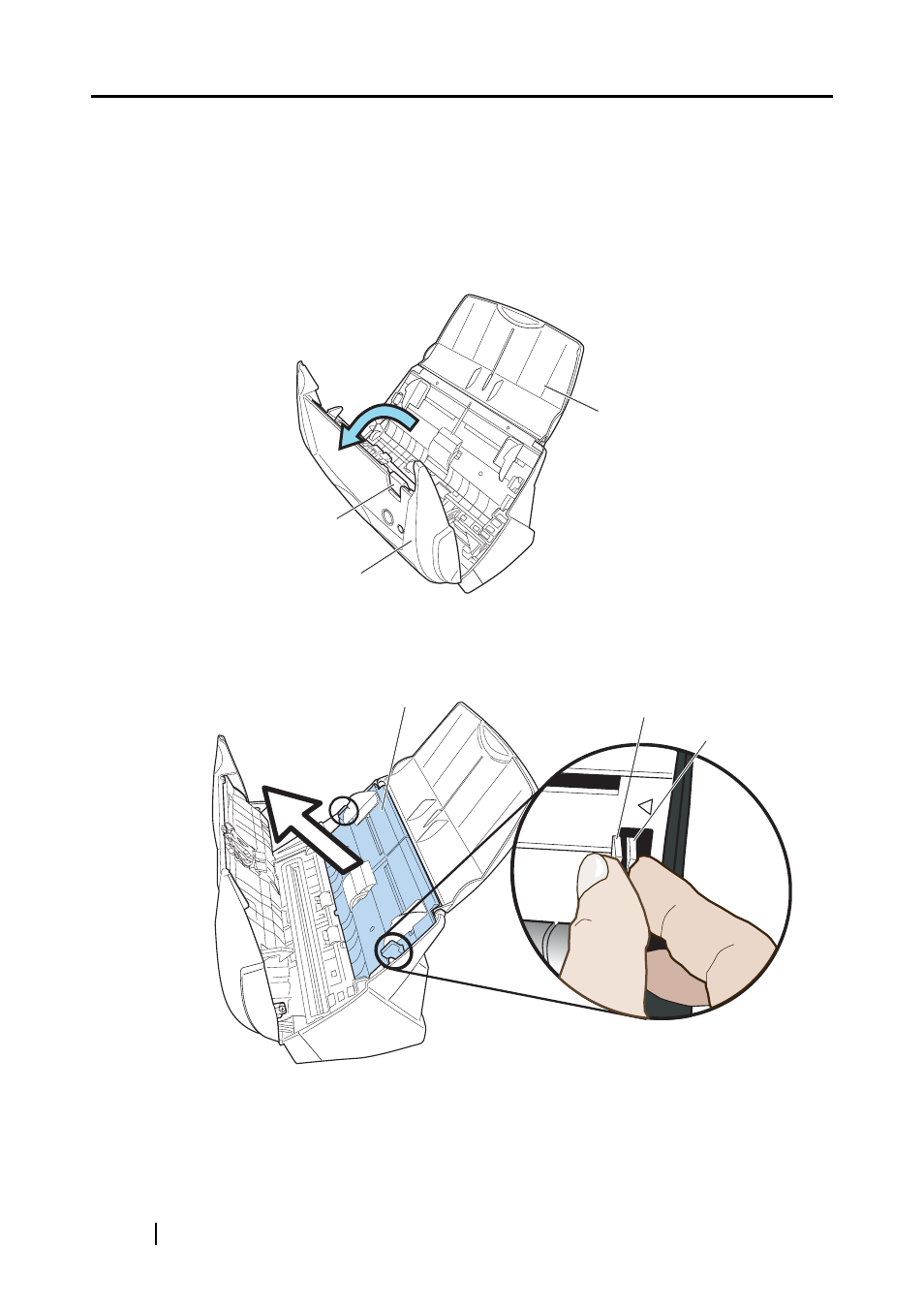

Open the ADF while pulling the cover open lever.
3.
Remove the sheet guide.
Pinch the handle and claw together on both sides of the sheet guide and take it out.
ADF cover
Cover open lever
Paper chute cover
Handle
Sheet guide
Claw
