94

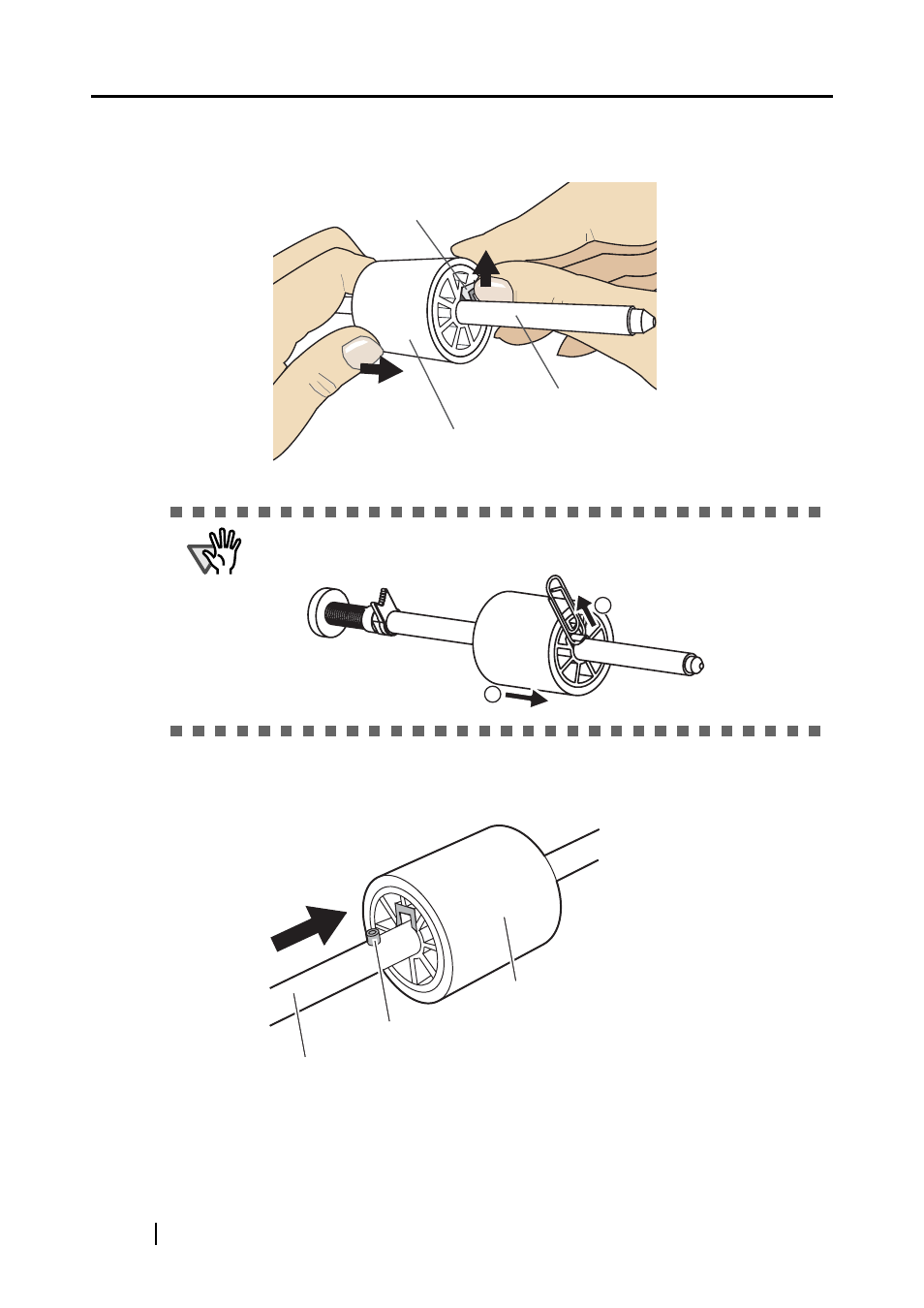

6. Remove the Pick roller from its shaft.
Pull out the shaft from the Pick roller while lifting up its tab.
7. Attach the new Pick roller to the shaft.
Insert the new Pick roller aligning the protrusion with the slot on the Pick roller.
ATTENTION
If you use your fingernail to pull up the picker roller tab, your fingernail may get
cracked or chipped. Instead you can use a clip to do that.
Shaft
Tab
Pick roller
1
2
Shaft
Protrusion
Pick roller
