7. Attach the Pick roller to the scanner.
Attatch the Pick roller to the scanner in reverse order of the procedure for removing.

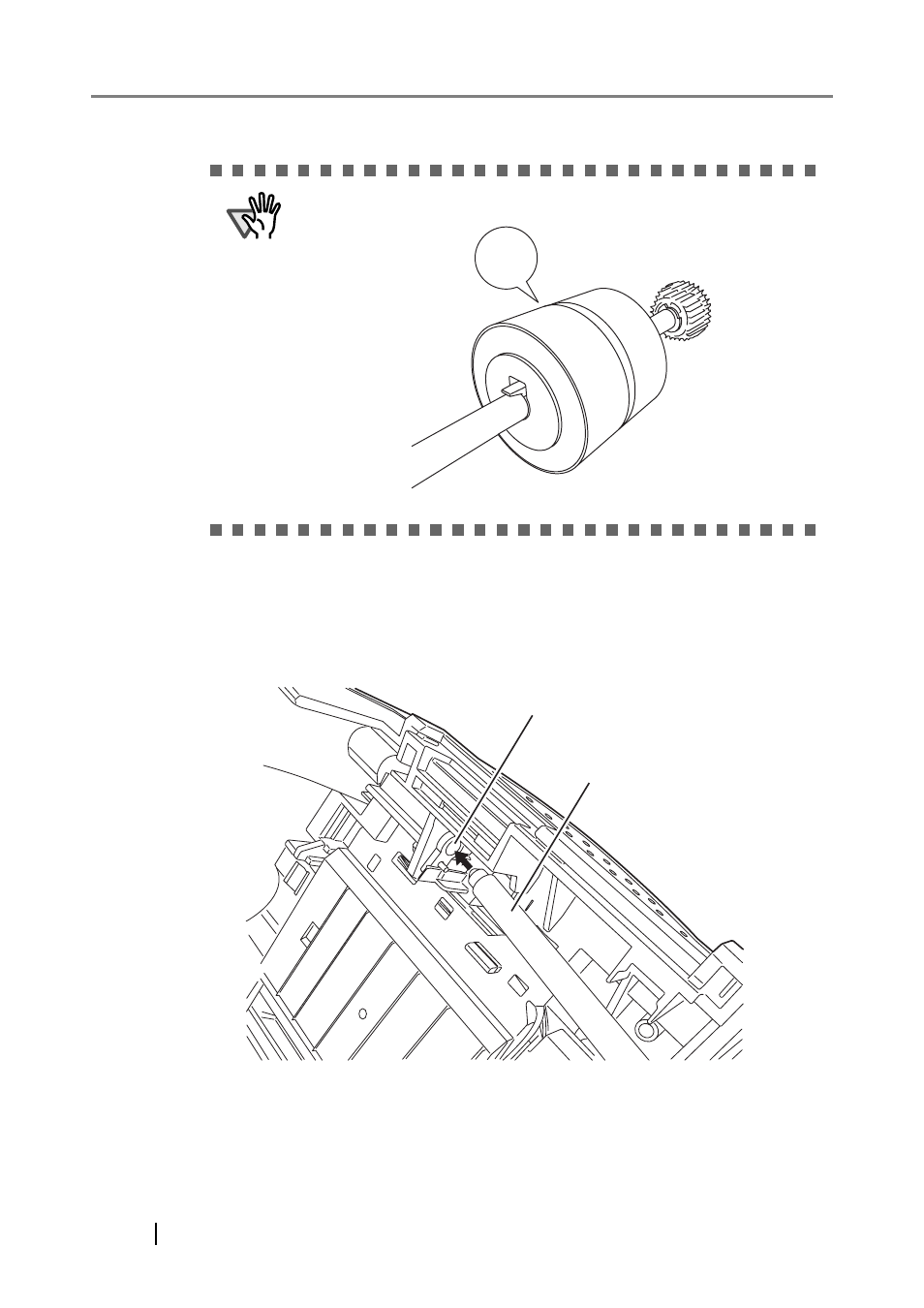

1) Set the Pick roller fixing the end of shaft into the shaft hole.
ATTENTION
Be sure to insert the Pick roller until it makes a clicking sound.
"Click"
Shaft
Shaft hole
