4.3 Replacing the Pick Roller
fi-4530C Image Scanner Operator’s Guide
75
REPLACING CONSUMABLES
4

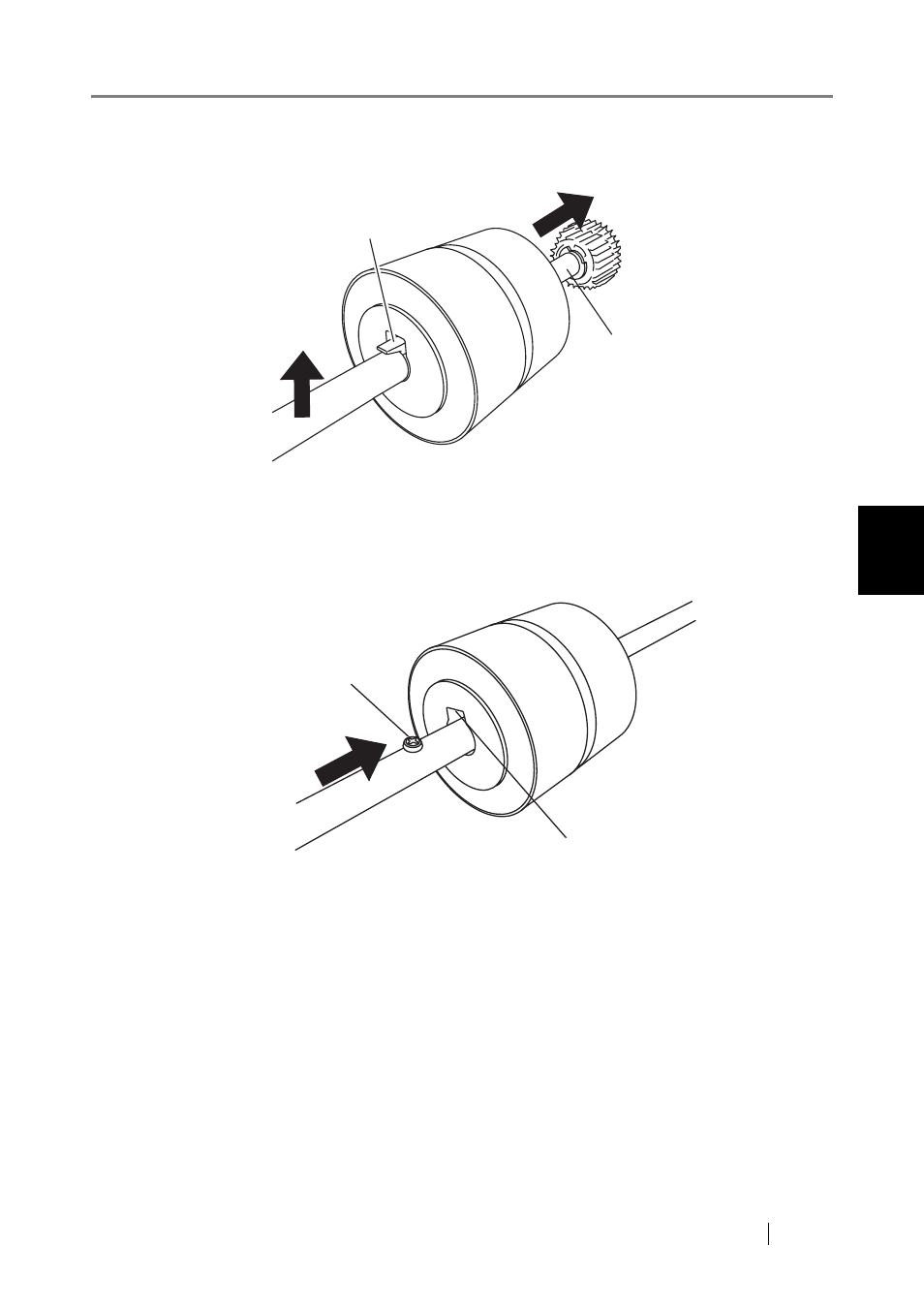

5. Remove the Pick roller from the shaft while lifting up the tab on the Pick roller.
6. Attach the new Pick roller.
Insert the new Pick roller aligning the screw on the shaft with the slot for the screw in the
Pick roller.
Tab
Lift up.
Pull shaft to remove
Shaft
Screw
Slot
