12.1.2 Attaching the front cover
After you have installed further accessible drives, reattach the front cover.

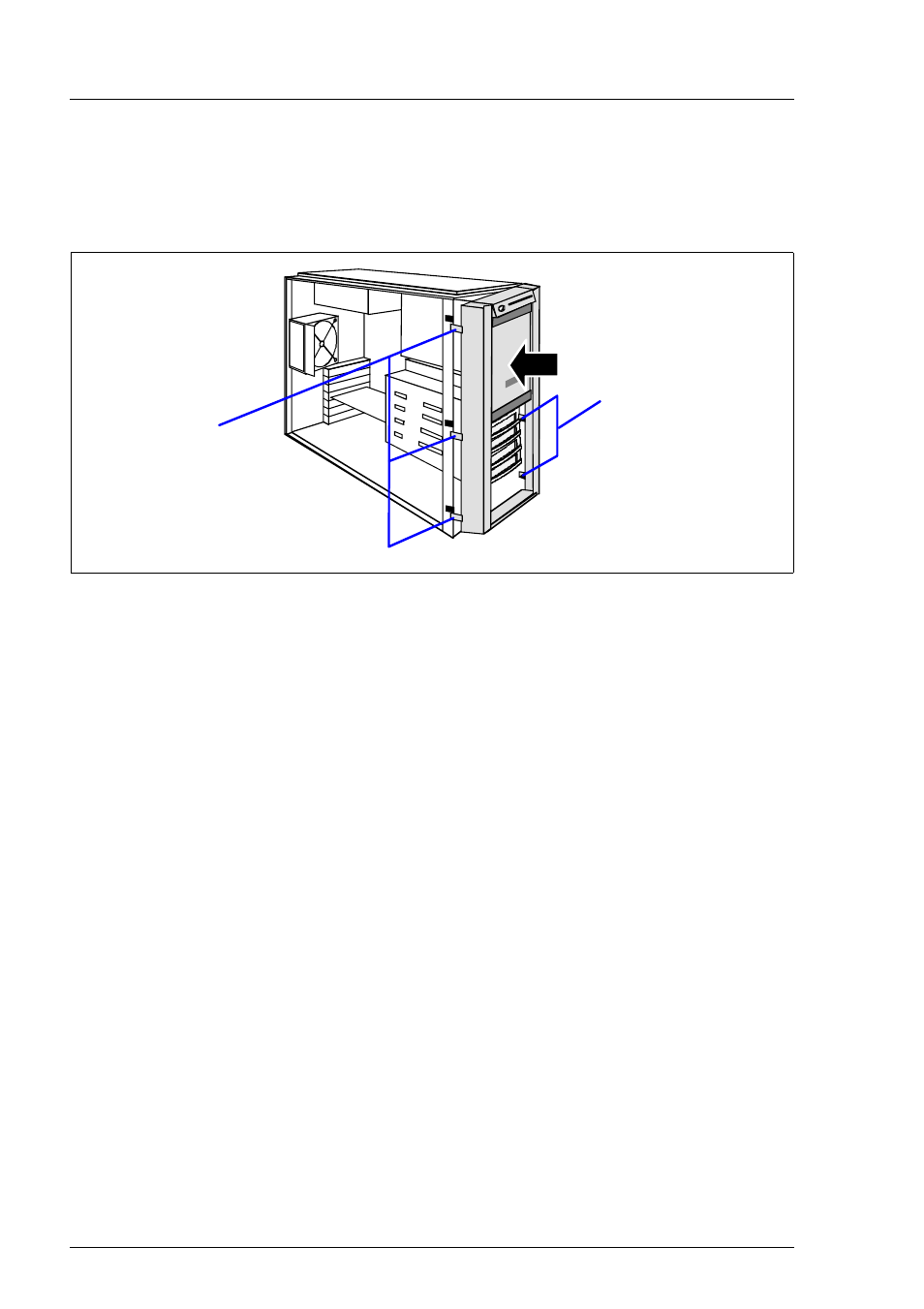

Figure 46: Attaching the front cover
Ê
Press the two hooks (1) on the right side in the recesses of the housing.
Ê
Press the front cover onto the housing (2) until the three tabs on the left side
engage (3).
Ê
Attach the hard disk cover as shown in figure 45 on page 59.
2
1
3
