Preparation Rack model
4.2.2 Removing the rack front cover
Remove the rack front cover when carrying out the following extension:
–
Installing further accessible drives

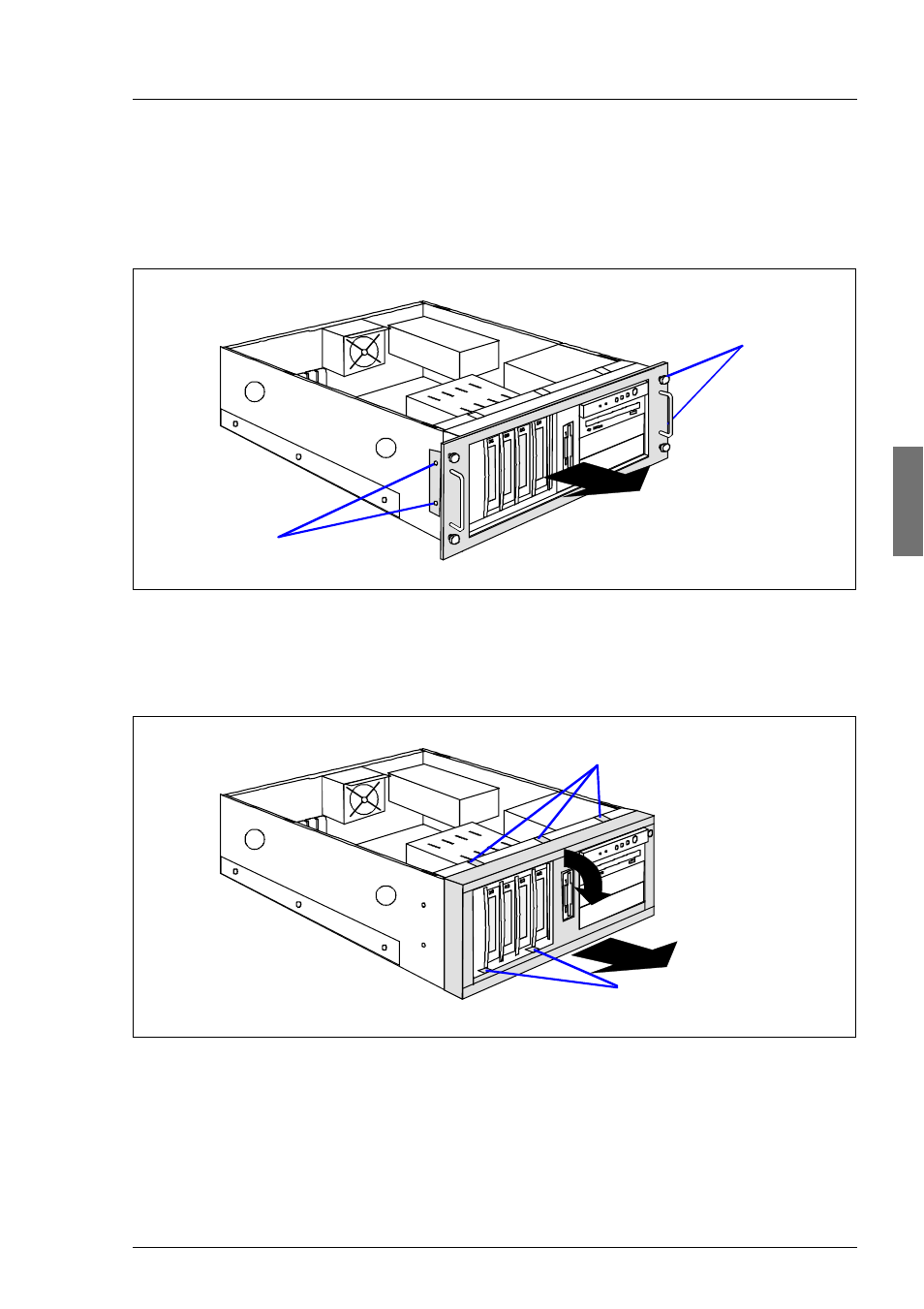

Figure 10: Removing the rack front cover
Ê Remove two screws on either side (1).
Ê Remove the rack front cover to the front (2).
Figure 11: Removing the plastic front cover
Ê Disengage the three tabs (1) on the top side one after the other and pull out
the plastic front cover frontward (2) about 2 cm.
Ê Press the two hooks (3) on the bottom side downward and pull out the plastic
front cover frontward (4).
