FUJITSU TX150 S3 User Manual
Page 51
U41604-Z156-1-76
Options Guide
43
Conversion standard PS to hot-plug PS

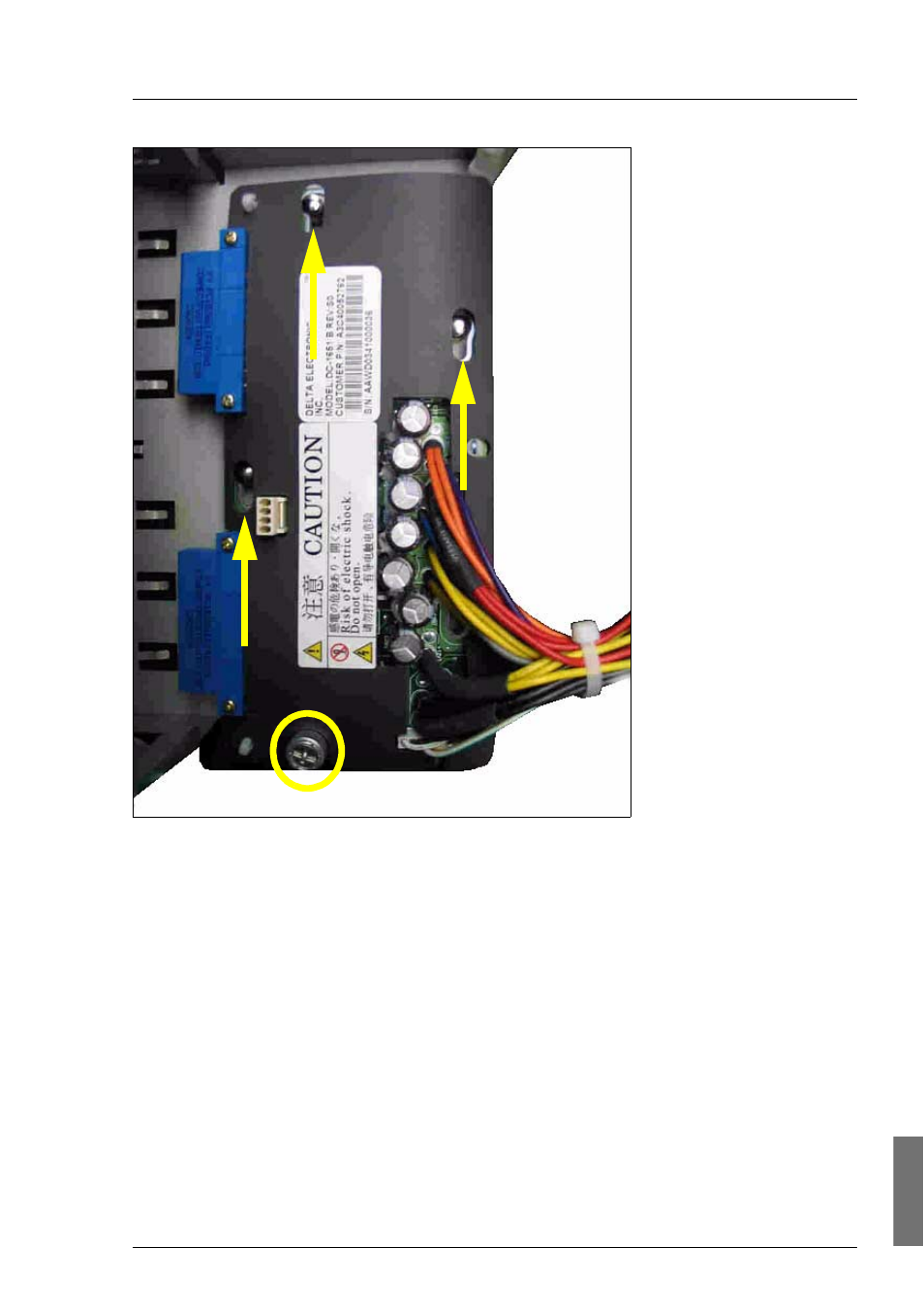

Figure 31: Installing the Power backplane in the PS cage
Ê
Insert the Power backplane in the PS cage.
Ê
Push the Power backplane in direction of the arrows until the three bolts of
the PS cage engage.
Ê
Fasten the Power backplane with one knurled screw (see the circle).
