4.1.2 Removing the front cover
Remove the front cover when making the following extensions and upgrades:
–
Installing further accessible drives
– Upgrading the floorstand model to a rack model
Ê Remove the hard disk cover as shown in figure 5 on page 15.

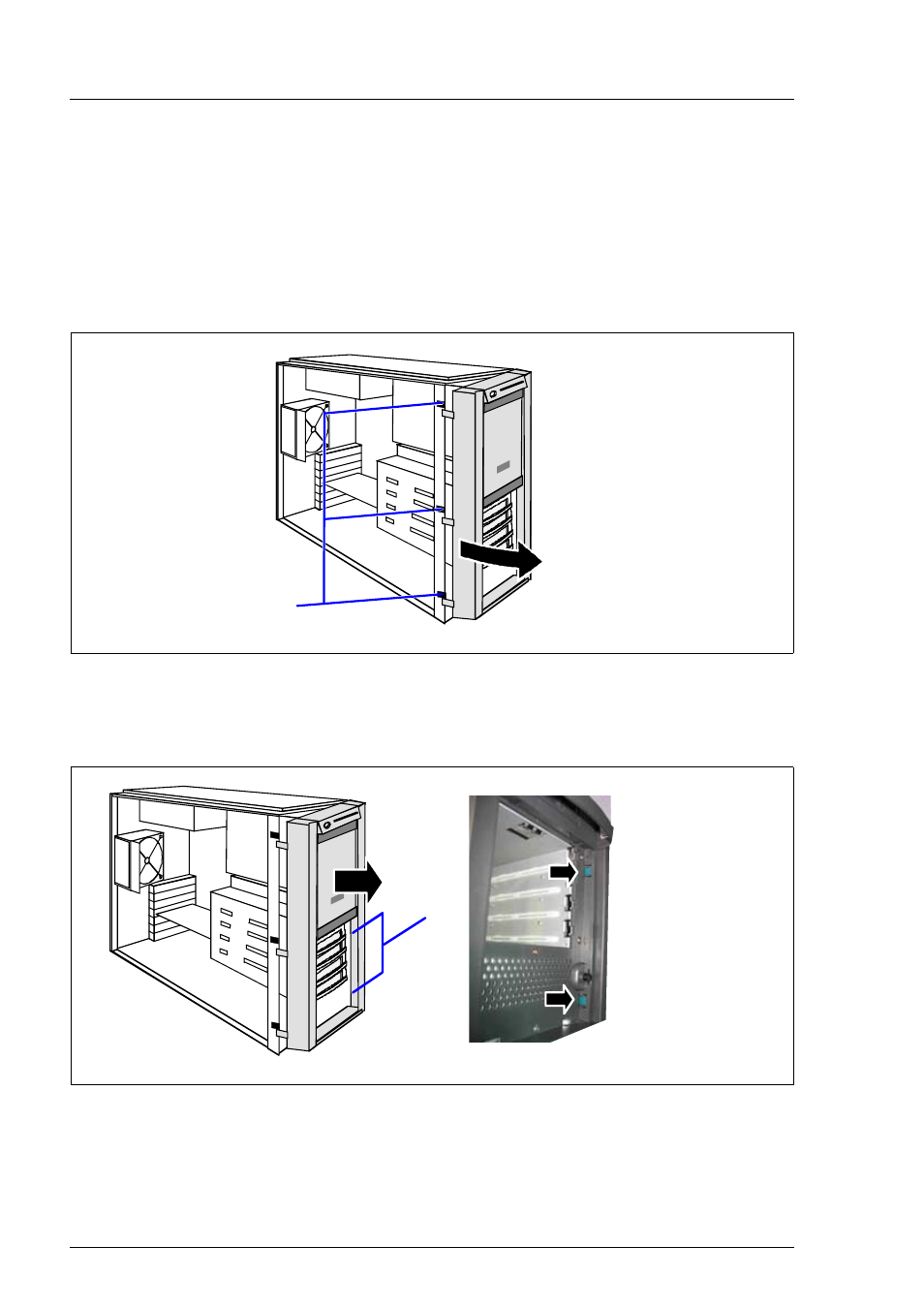

Figure 3: Removing the front cover
Ê Disengage the three tabs (1) on the left side one after the other and rotate
the front cover outward (2) about 2 cm.
Figure 4: Removing the front cover
Ê Press the two hooks (1) on the right side inward and pull out the front cover
frontward (2).
1
2
2
1
