U41604-Z156-1-76 Options Guide 33
Controller in the PCI slots Installing a controller

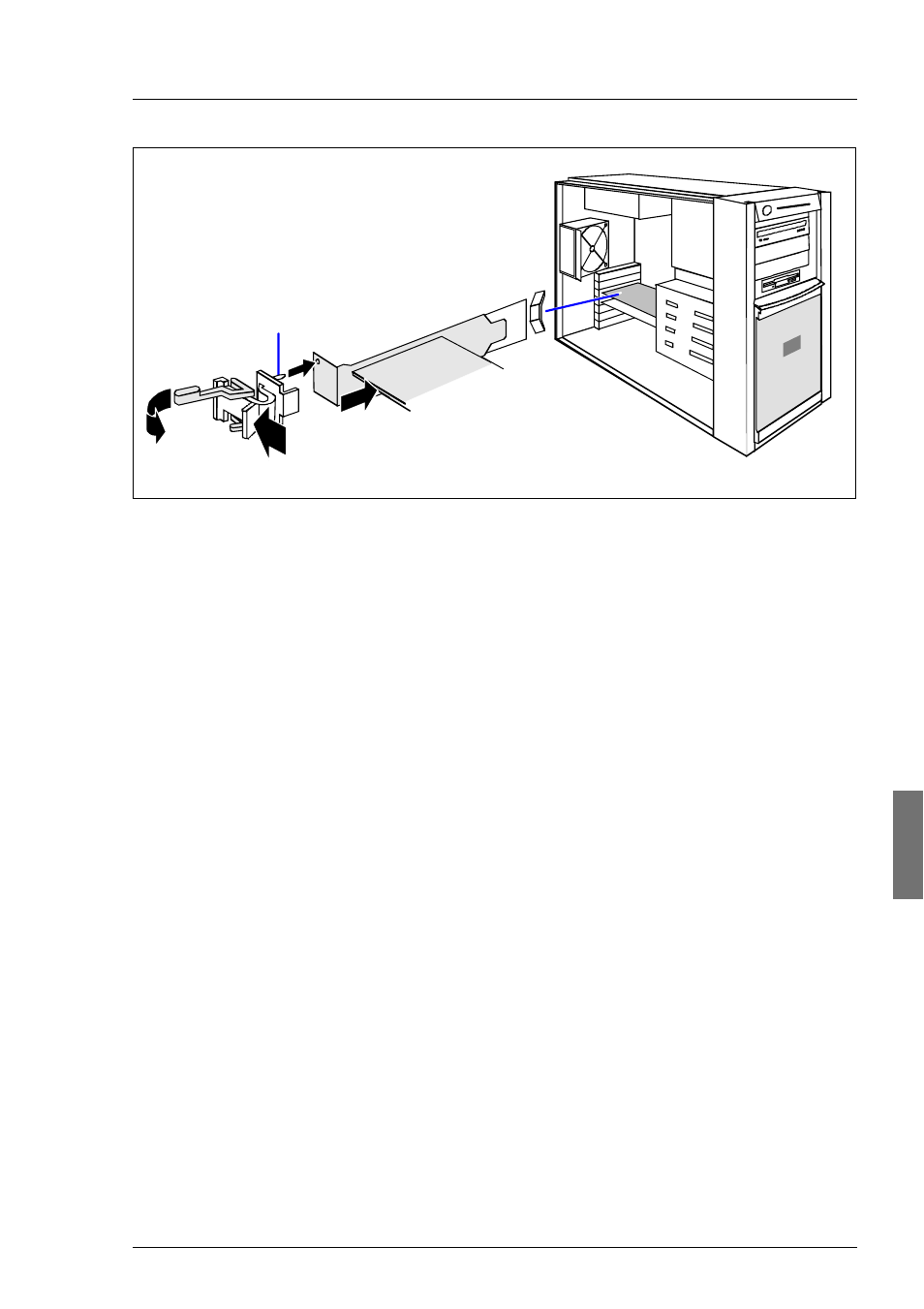

Figure 24: Installing a controller
Ê Install the controller in the PCI slot and press it carefully into the associated
plug-in location on the system board (1) until it engages properly.
Ê Place the clip on the slot cover in such a way that the pin (a) fits into the hole
of the slot cover (2), and press the clip in the direction of the arrow (3) until
it engages.
Ê Swing the locking swivel (4) in its locking position.
Ê If required, connect the cables to the controller and other components.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 59 et seqq. .
a
1
3
3
2
4
