FS-8700-97 Lutron Machine Manual

Page 4 of 24

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com

Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: [email protected]

3

HARDWARE CONNECTIONS

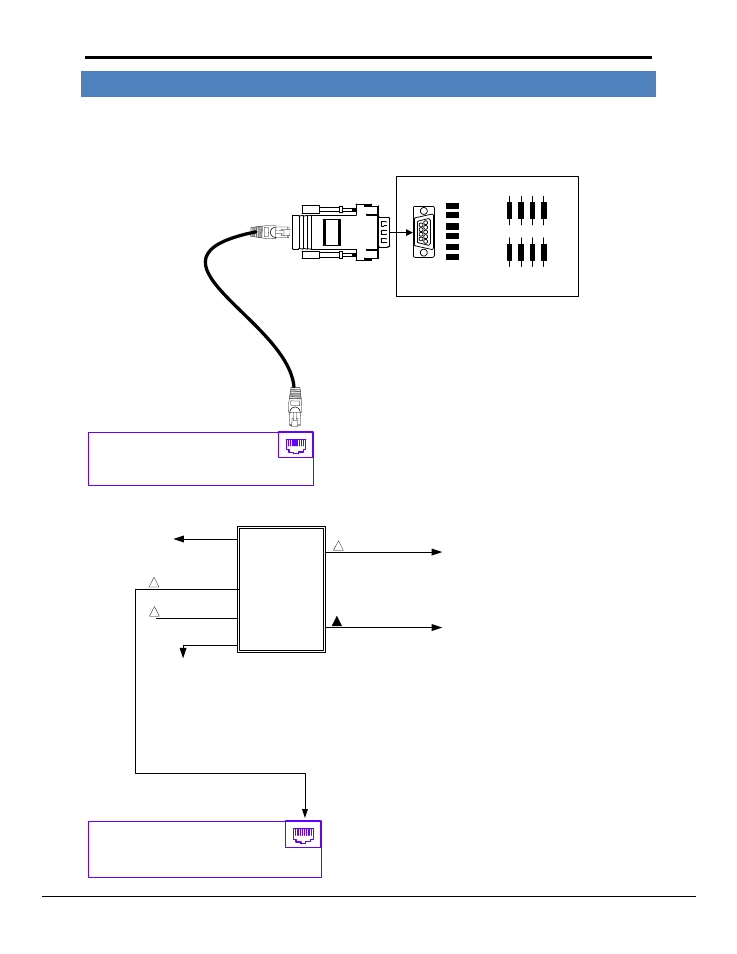

The FieldServer is connected to the Lutron eLumen panel as shown in the connection drawing below:

Configure the eLumen panel according to manufacturer’s instructions.

CAT 5 CABLE

FS-8915-10

LUTRON SERIAL
RS-232 INTERFACE
PART # 470-784

FS-8917-03

FieldServer

P1

1

8

F

S

-8

9

1

7

-0

3

eLumen

Processor

To control stations

To dimmer panels

120V 15A
Dedicated Control
Feed

Aux Link (RS-485)

Inter-processor link

User Interface link

Wallstation link

Dimmer panel link

FieldServer

P1

1

8
