Frymaster 17EC - Manual (Page 89)

7-25
1
2
3
4
5
6
7
8
9
10
12
13
14
15 16
17
18
19
20
21
22
24 23
25
11
26
ITEM PART # COMPONENT
1 Cookpot
823-2392SP Units with Manual Controls
823-2757SP Units with Computers
2 816-0152 Insulation, Cookpot Front
3 900-5405 Retainer, Cookpot Front Insulation
4 900-1762 Retainer, Insulation
5 826-1376 Nut, 10-32 Hex Head Keps (Pkg of 10)
6 806-7552SP Water-Level Sensor Assembly
7 Temperature Sensor
807-2272 Operating Thermostat (units with manual controls)
806-4206 Temperature Probe (units with computers)
8 807-2466 High-Limit Thermostat
9 809-0047 Nut, ¼-20 Cap
10 910-2927 Cover, Water-Level Sensor
11 810-0976 Nozzle
12 910-1038 Thermostat Guard (units with manual controls)
13 810-0738 Probe Guard (units with computers)
14 807-2440 Element, 208V 13kW Heating
15 809-0567 Tie Wrap, Metal
16 813-0391 Nipple, 1¼-inch NPT Close
17 813-0451 Nipple, 1¼-inch NPT x 12-inch Chromed Brass
18 813-0453 Nut, 1¼-inch NPT Chromed Stainless Steel Slip
19 813-0146 Nipple, 1¼-inch NPT x 4¼-inch
20 813-0070 Elbow, 1¼-inch NPT 90º
21 813-0394 Tee, 1¼-inch NPT
22 810-1825 Valve 1¼-inch NPT Drain
23 814-0047 Sleeve, Red Drain Valve Handle
24 910-9527 Handle, Drain Valve
25 809-0063 Nut, ⅜-16 Jam
26 809-0204 Washer, Teflon (between element and inside face of cookpot)

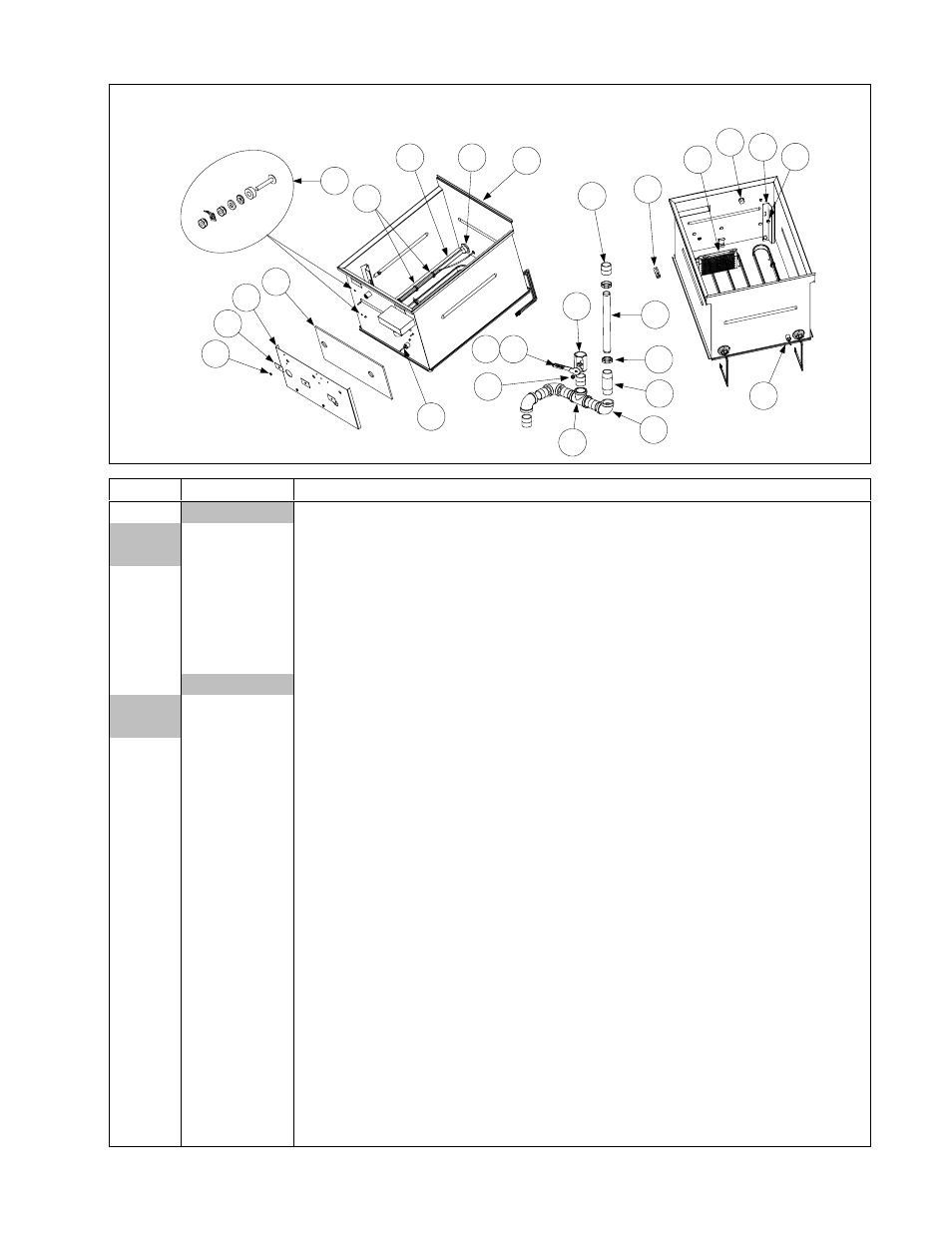

COOKPOT AND DRAIN COMPONENTS
