ITEM
PART #
COMPONENT
1
809-0250
Nut, 6-32 Hex Head Keps
2
806-9100
Computer, CM III (for use on EWBS units only)
3
823-2760
Panel, Computer Control with Two Cutouts
4
823-2770
Panel, Computer Control with One Cutout
5
910-2454
Panel, Manual (Thermostat) Control
6
807-0495
Light, Red and White Split, 24V
7
807-2479
Switch, ON-OFF-ON Rocker (Non-Illuminating)
8
807-2082
Switch, ON-OFF Rocker (Non-Illuminating)
9
807-2273
Switch, ON-OFF Rocker (Non-Illuminating)
10
806-9413
Bracket, Interface Board Mounting
11
809-0238
Nut, 4-40 Hex Head
12
809-0360
Screw, #8 x ⅜-inch Washer Slotted Hex Head
13
810-1164
Block, Screwless Terminal
14
809-0354
Screw, 4-40 x ¾-inch Slotted Pan Head
15
Interface Board
806-6505
For use on units with manual (thermostat) controls.
806-9295
For use on units with computer.
16
809-0250
Nut, 6-32 Hex Head Keps
17
807-2272
Thermostat, Operating
18
900-5026
Bracket, Thermostat Mounting
19
810-0387
Knob, Control
*
802-1432C
Label, Thermostat Dial (adhesive-backed)
20
806-4206
Probe, Temperature (for use on units with computers)
* Not illustrated.

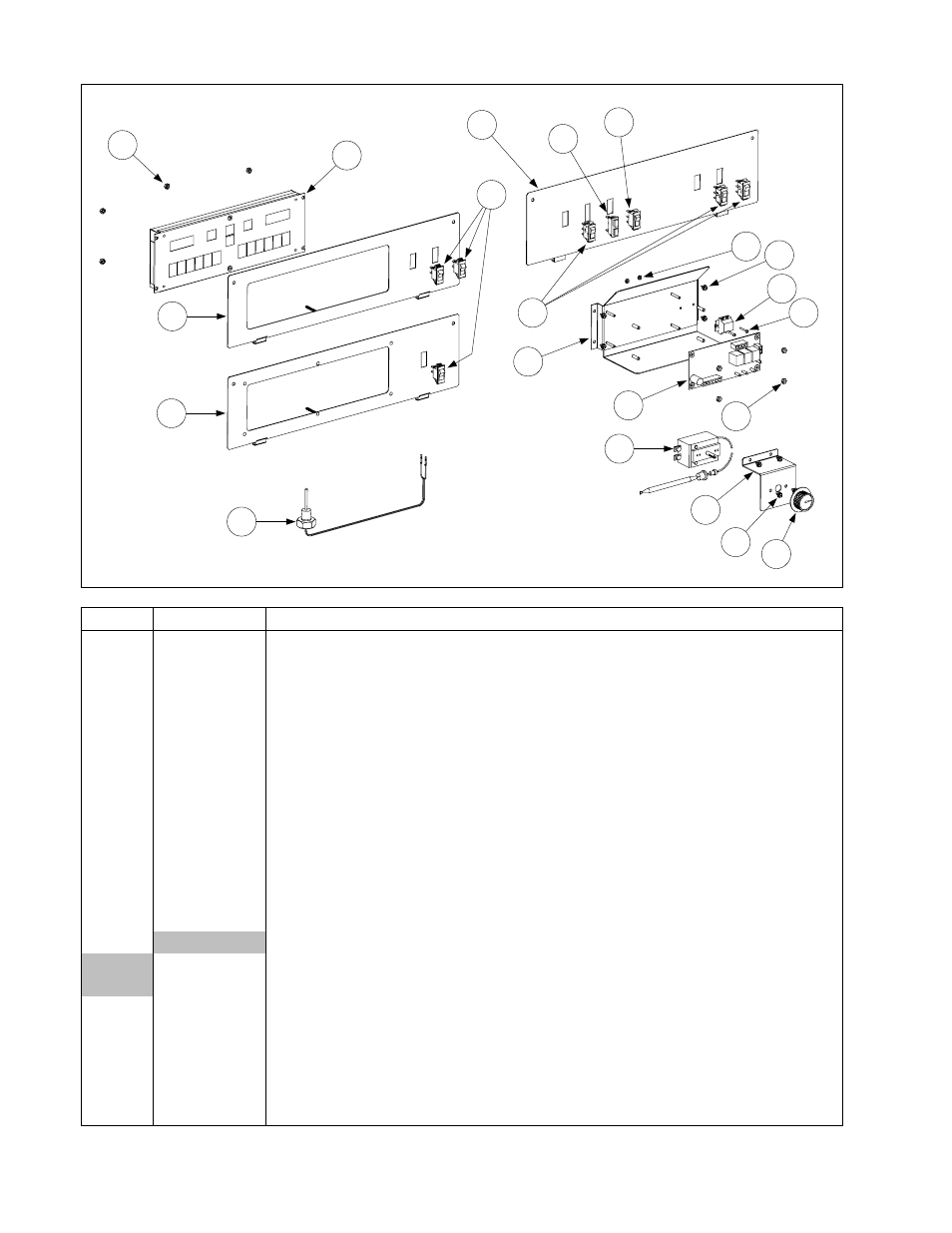

CONTROL COMPONENTS
