7.3.8 Replacing the Water Faucet
1. Drain the cookpot and disconnect the cooker from the electrical power supply.
2. Turn off the water supply to the cooker and disconnect the incoming faucet water line where it
attaches to the pipe nipple at the pressure regulator. Reposition the cooker to gain clear access to
the rear of the cooker.
3. Remove the cabinet back (or, if the unit is equipped with basket lifts, remove the upper rear
panel).
4. Disconnect the water supply line at the compression fitting where it attaches to the faucet
assembly. Remove the large nut to dismount the faucet assembly from the cabinet.

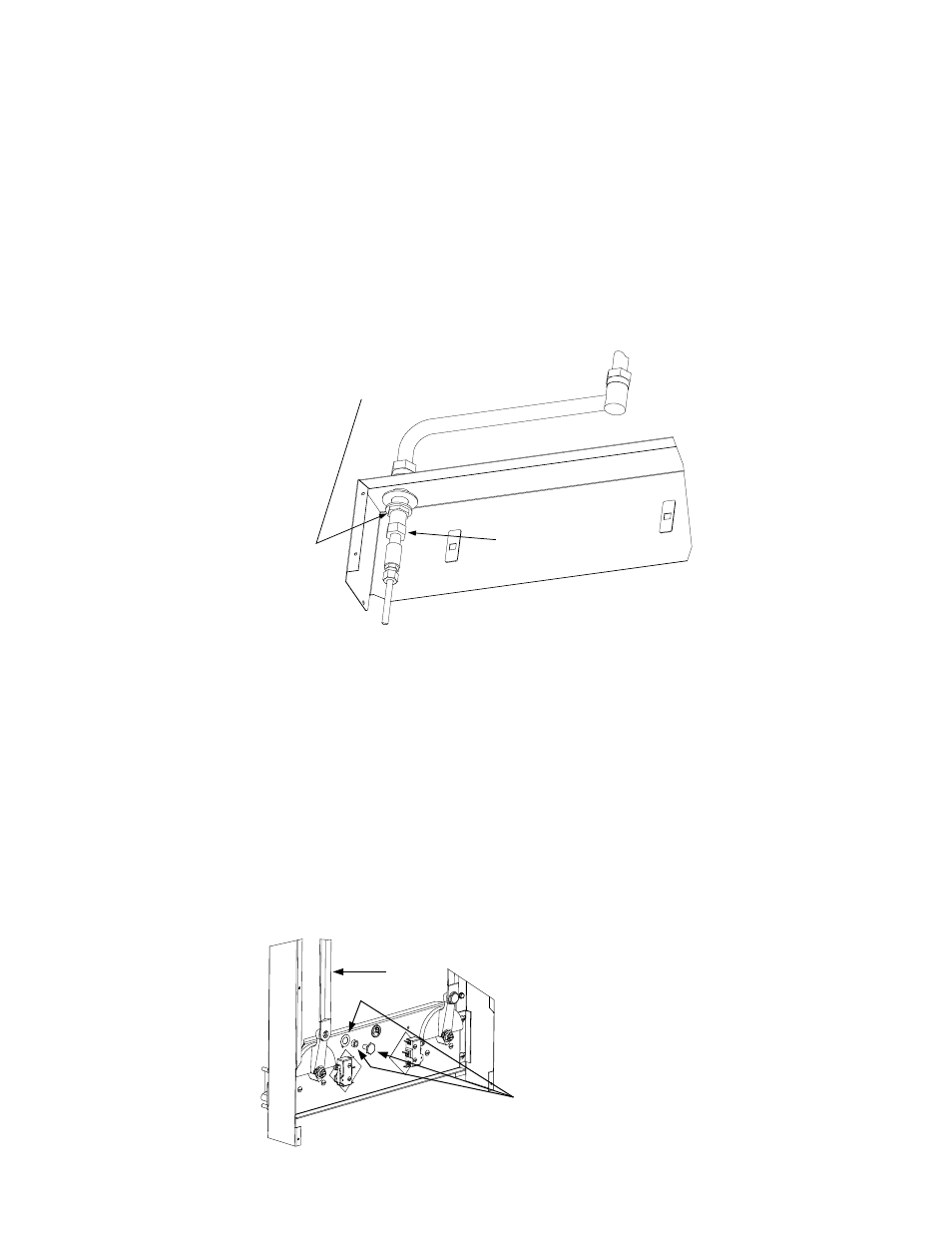

Loosen this nut to separate
water line from faucet assembly.
Remove this nut to dismount
faucet assembly from cabinet.
5. Reverse Steps 1-4 to complete the procedure.
7.3.9 Replacing a Basket Lift Motor or Microswitch
1. Disconnect the cooker from the electrical power supply, disconnect the cooker from the
incoming water supply, and remove the basket lift arms from the lifter rods.
2. Remove the screws from the upper corners of the control panel and open the panel by allowing it
to swing downward. Unplug the basket lift wiring harness from the 5-pin connector on the
interface board.
3. Reposition the cooker to gain access to the rear. Remove all three panels from the rear of the
basket lift housing, and disconnect the lifter rods from the lifter cams (bell cranks). Slip the lifter
rods down and out of the assembly.
Remove the leveling screw, bushing,
and washer, then slip the lifter rod down
and out of the assembly.
Lifter Rod
