freeView IP 800 User’s Manual
typical example is a German localized system that uses an US-English keyboard mapping. In
this case the Local Keyboard will need to be changed to the correct setting manually.
• Hotkeys
Opens a list of defined hotkeys. By choose an entry, the selected command will be sent to the
host system.
A confirmation dialog can be added that will be displayed before sending the selected command
to the remote host. Select “OK” to perform the command on the remote host.

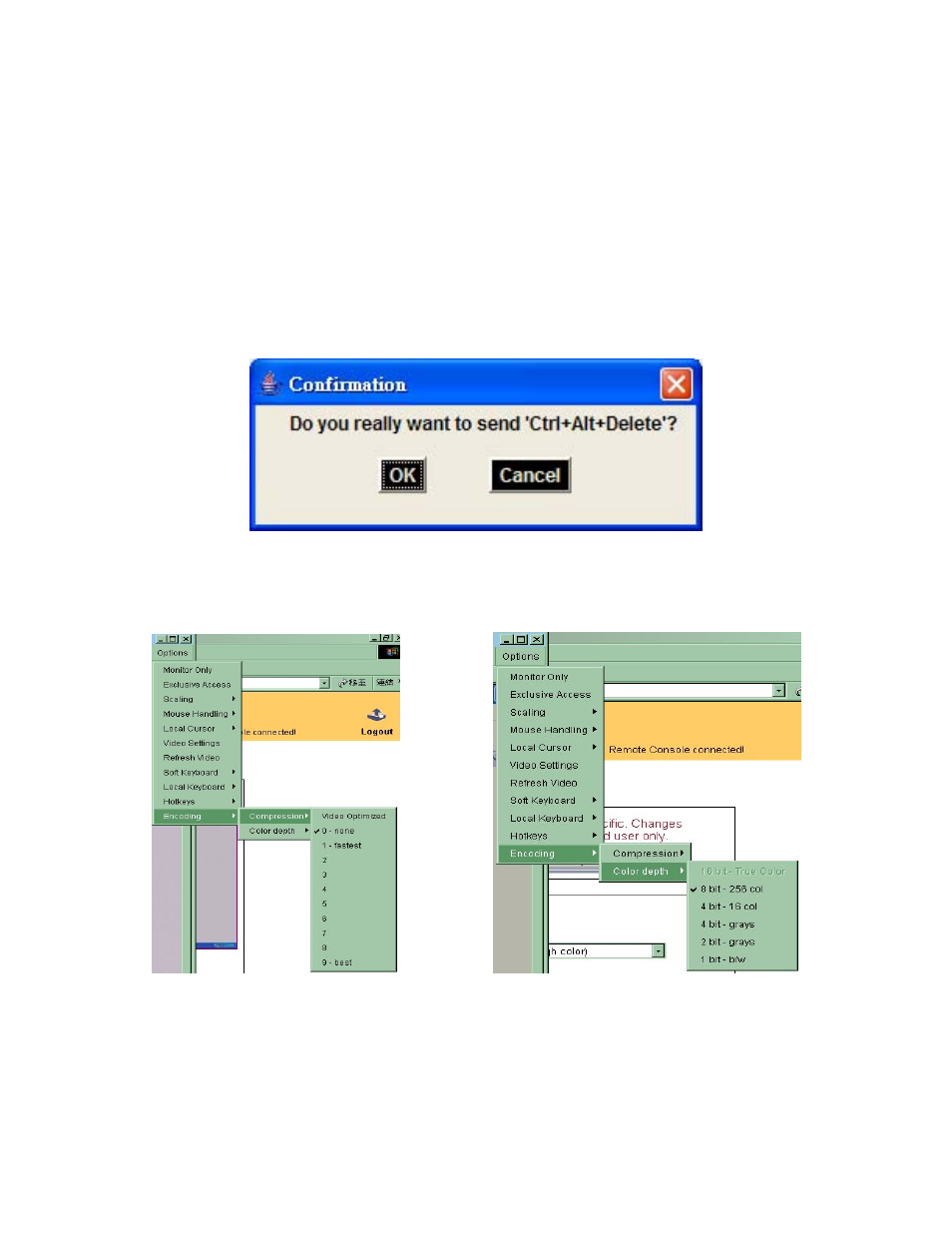

Figure 5-13: Remote Console Confirmation Dialog
Encoding
Figure 5-14: Encoding
Allows the user to adjust both the compression rate and the colour depth individually. Depending
on the selected compression rate, the data stream between the freeView IP 800 and the Remote
Console will be compressed in order to save bandwidth. Increasing the compression rate
requires more resources from the freeView IP 800, thus should not be used when multiple users
43
