FUJITSU XG2600 User Manual
Page 39
XG2600 Hardware Guide
Chapter 2 Installation
Installation of the switch
39
1.

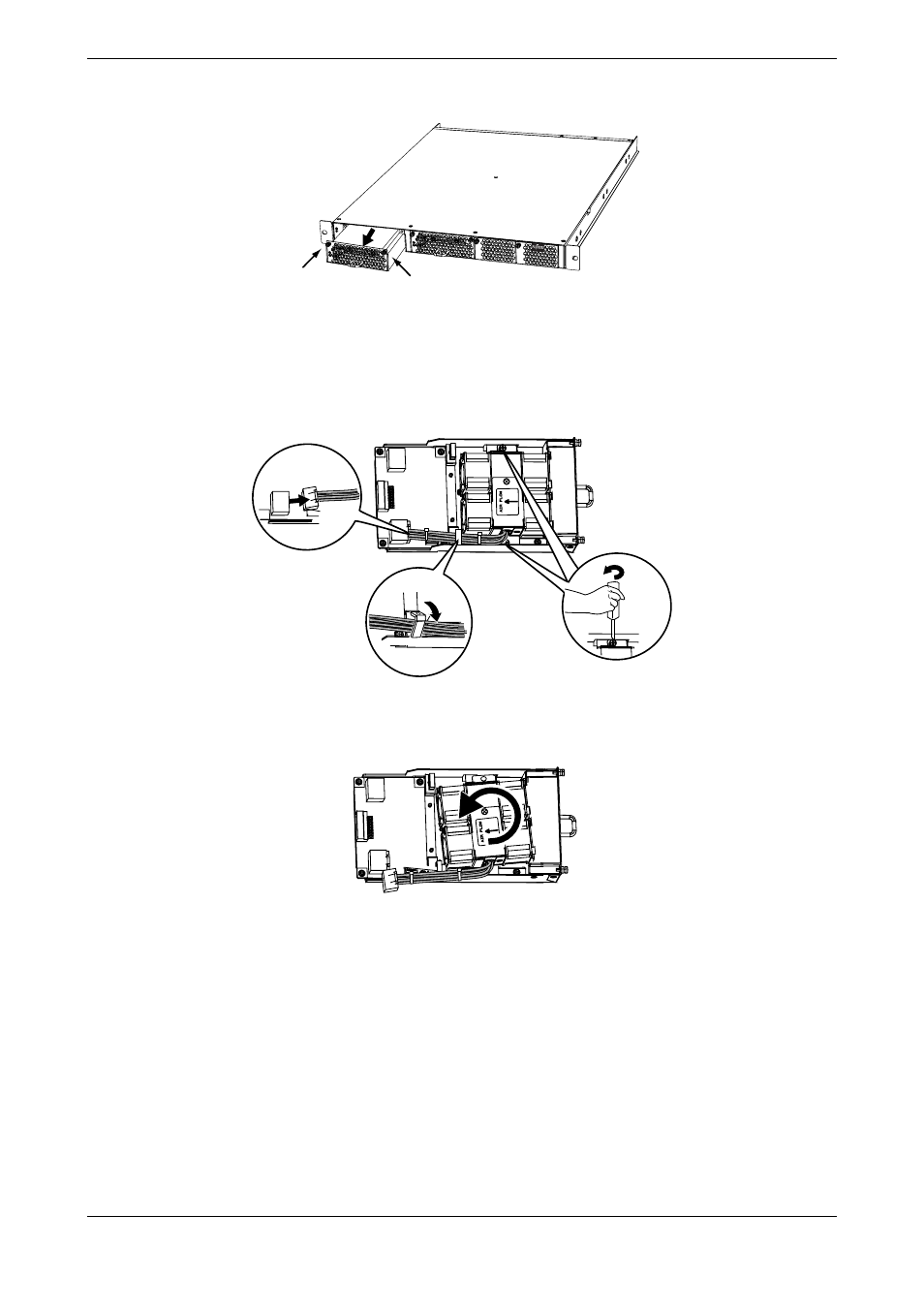

Loosen two screws to remove fan unit.
2.
Remove fans
(1) Remove two screws.
(2) Unlock Cable Holder (which prevents cables from being pulled out).
(3) Remove cables
3.
Change direction of fans.
(1) Turn over the fan.
Screw
Screw
XG2600
(1)
(2)
(3)
(1)
