XG2600 Hardware Guide Chapter 2 Installation
Installation of the switch 35
2.2.2 Rear-Access Configuration (Factory Default)
This section describes how to install switch in Rear-Access configuration (Factory Default).
Decide positions for rack mounting brackets
1. Decide positions of rack mounting brackets.
It is possible to install the switch either in a standard front position of the rack or in an offset position of the rack.
In case to locate the switch offset from the front side, change the positions of rack mounting brackets.

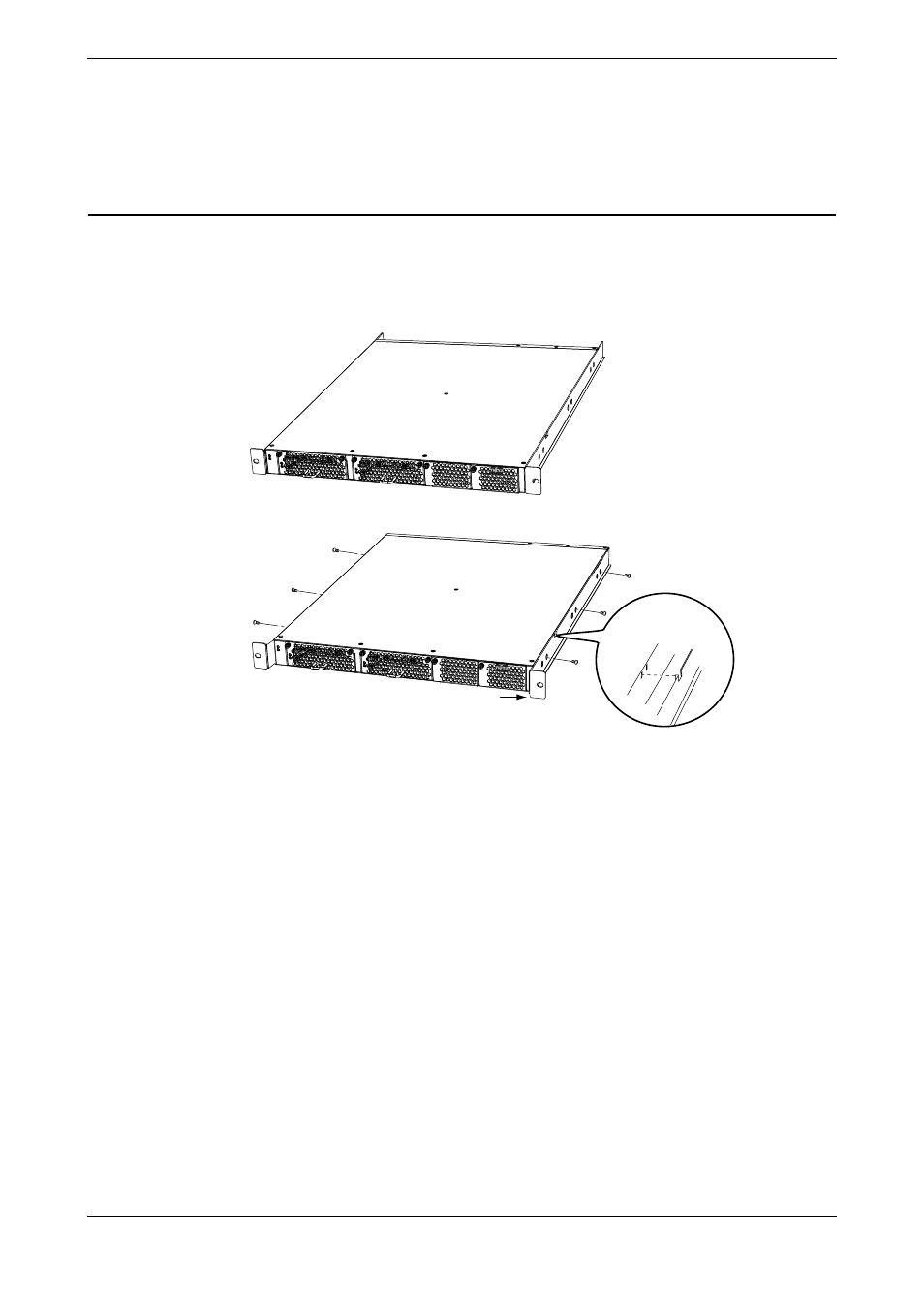

[STANDARD]
Rack Mounting Brackets
[OFFSET]
XG2600
XG2600
Plug into the
hole of the device.
