Component identification 9

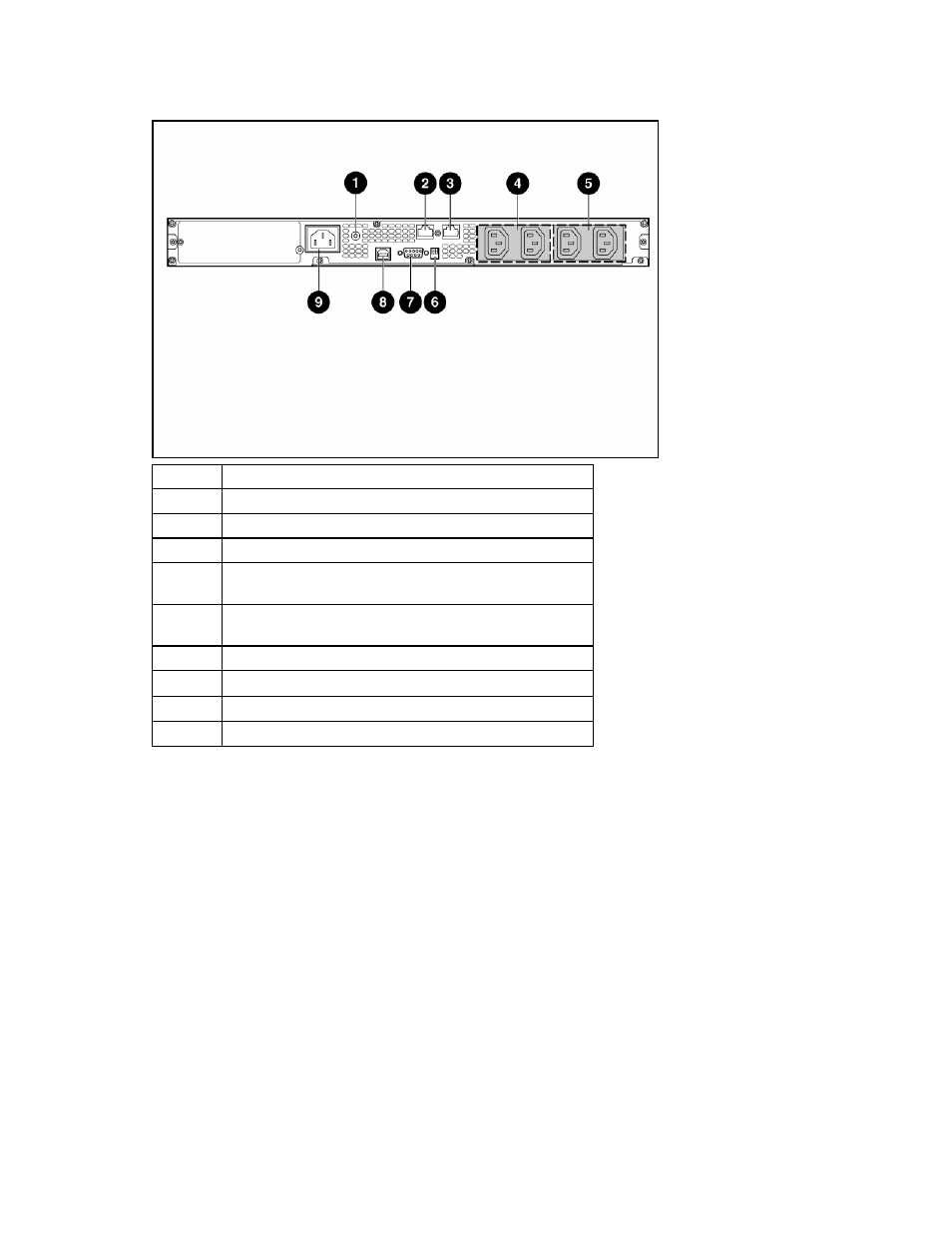

UPS R1500 G2 INTL rear panel

Item Description

1

Input circuit breaker

2

Network Transient Protector IN jack

3

Network Transient Protector OUT jack

4

Load segment 1 (two IEC-320-C13 output receptacles for
surge and battery backup protection)

5

Load segment 2 (two IEC-320-C13 output receptacles for
surge and battery backup protection)

6

Voltage configuration DIP switches

7

Serial communications port

8

USB communications port

9

Input power connector (IEC-320-C14 power inlet)
