Component Identification
HP StorageWorks Modular Smart Array 500 System Maintenance and Service Guide
4-5
HP CONFIDENTIAL Codename: Aurora Part Number: 251850-004 Last Saved On: 9/19/03 11:00 AM

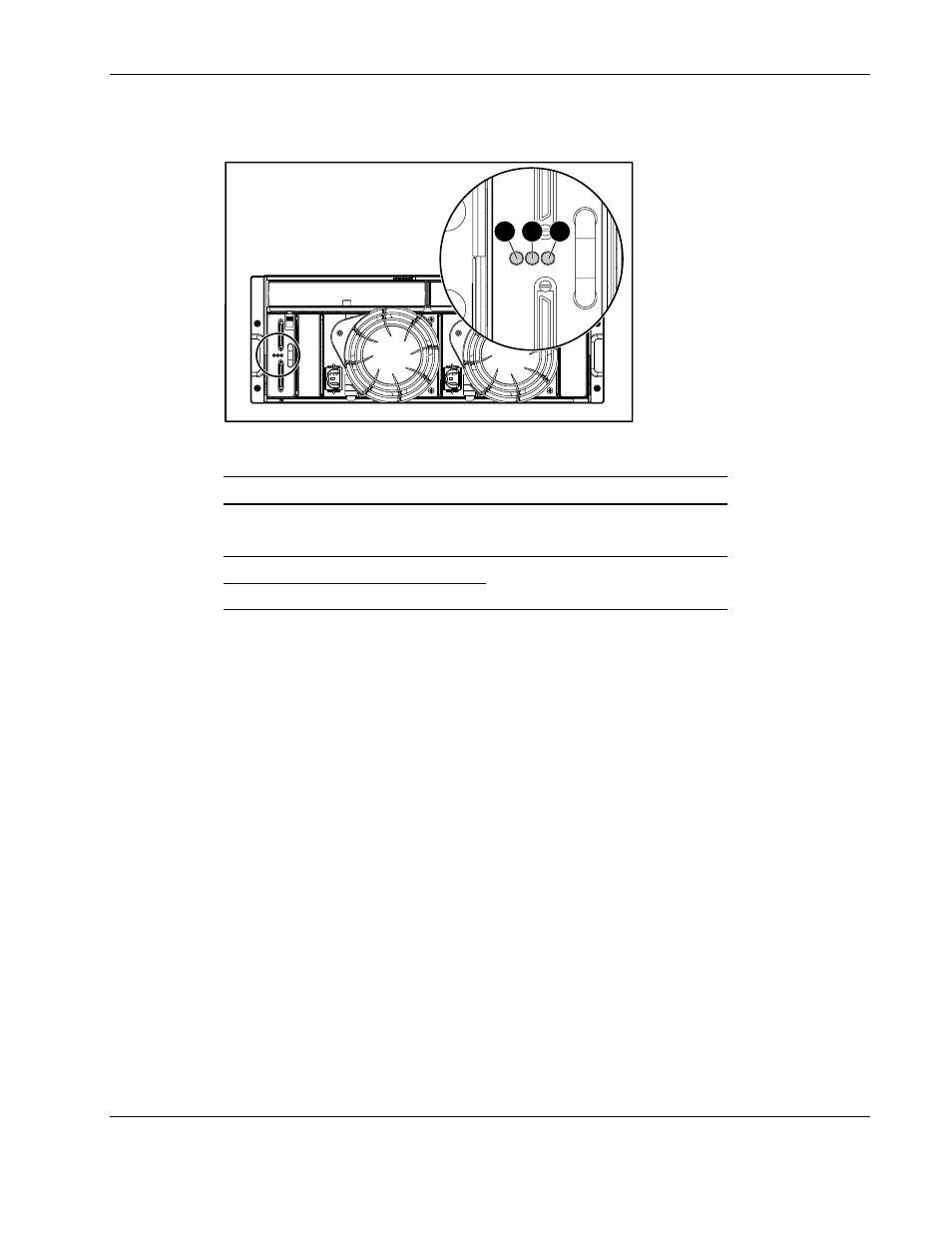

2-Port Shared Storage Module LEDs
1
2
3
Table 4-5: 2-Port Shared Storage Module LEDs
Item LED
Description
Status
1
Power
Green = Power on
Off = Power off
2
SCSI host port A
3
SCSI host port B
Flashing green = On/Activity
Off = Off
