Component Identification
Front Panel Components
1
3
4
2
7
6
5

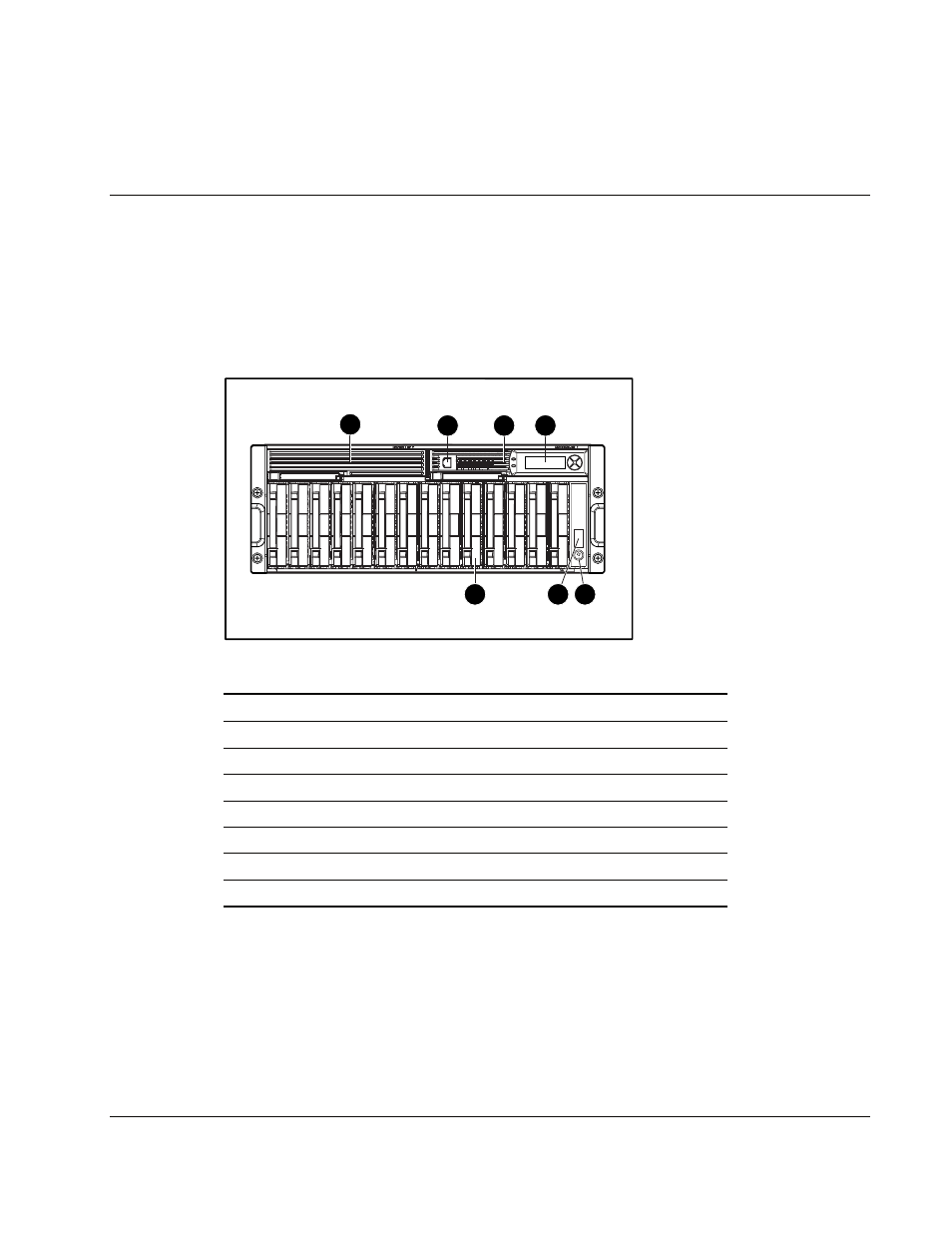

Table 4-1: Front Panel Components
Item Description
1
Bezel blank (bay for optional redundant controller)
2
Service port (for HP service technicians only)
3
Hot-plug MSA500 controller
4 Controller
display
5
Power On/Standby button
6
Enclosure LEDs (refer to Table 4-2)
7
Hot-plug SCSI hard drive bays with blanks
