I N S T A L L I N G T H E T R A C K 1 6 H A R D W A R E
30
A TYPICAL TRACK16 SETUP
Here is a typical Track16 studio setup. This rig can
be operated without a conventional mixer. All
mixing and processing can be done either in the
Track16, in the computer with audio software, or
both. During recording, you can use the Track16’s
CueMix™ FX mixer to apply reverb, EQ and
compression to what you are recording and
monitor it via the main outs, headphone outs, or
any other output pair. You can control everything
from the included CueMix Console software.

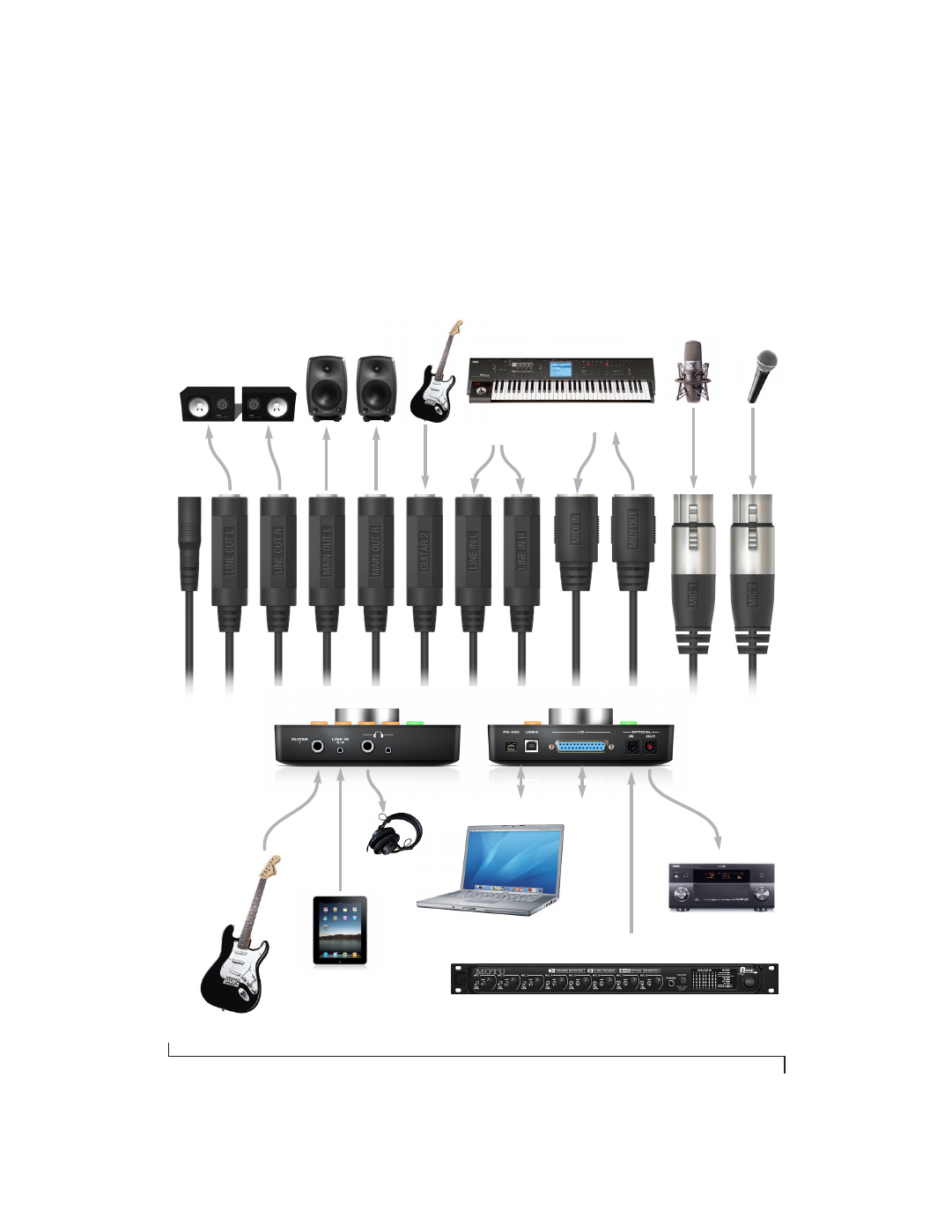

Figure 4-7: A typical Track16 studio setup.
Balanced
quarter-inch
analog outs
synthesizer Main
studio monitors
Phones
Mac
MOTU 8pre
optical expander
FireWire or USB
Secondary
studio monitors
Mic 2 Mic 1
MIDI
OUT
MIDI
IN
Optical
output
Guitar
2
Guitar
1
iPad
or
iPod
Optical input
Home theater system
8-channel
ADAT
optical
2-channel
TOSLink
Breakout
cable
